À propos du produit

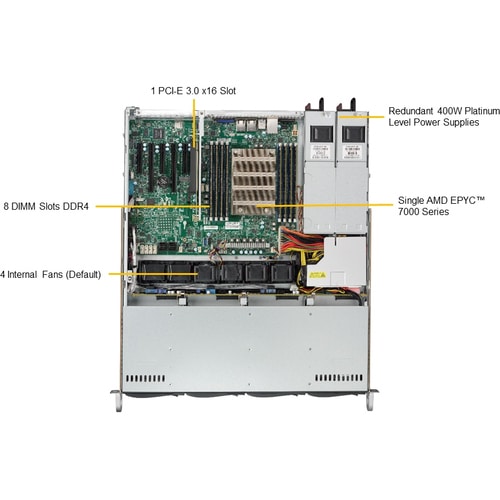

Optimized for high-performance computing and scalability, Supermicro's AMD EPYC™ 7000-series based dual-socket systems support up to 64 cores or 128 threads in a high-density 1U form-factor. With industry-leading memory bandwidth supporting up to 4TB of the latest DDR4 memory on 16 memory channels, up to 10 NVMe/SATA3 drive bays, complete SoC with fully integrated high-speed I/O supporting 128 lanes of PCI-E 3.0, and Infinity Fabric coherent interconnect between the two processors. These systems are ideal for virtualization, web, cloud computing and HPC applications.
- Can connect up to 9 USB peripherals
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- With Serial ATA/600 interface get superb reliability and high-speed data transfer
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
- Compatible EPYC processor lets you perform all your computational tasks at a swift pace
Spécifications techniques
| Chipset | |
| Chipset Manufacturer | AMD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |

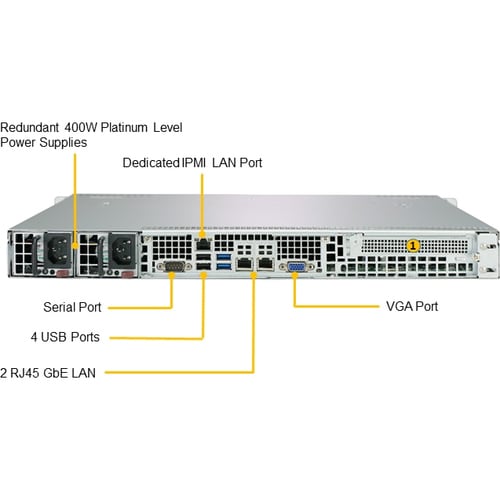

| Interfaces/Ports | |
| Number of SATA Interfaces | 4 |
| Total Number of USB Ports | 9 |
| Number of USB 3.0 Ports | 5 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Maximum Power Supply Wattage | 400 W |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| "Number of 3.5"" Bays" | 4 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Memory | |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 8 |
| Processor | |
| Processor Supported | EPYC |
| Processor Socket | Socket SP3 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 20.06 lb (9100 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |

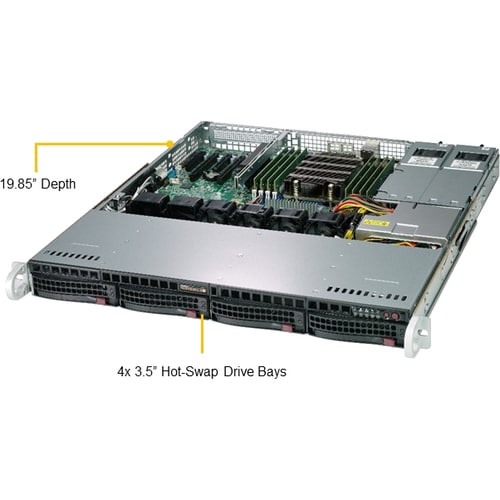

| Depth | 19.85" (504.19 mm) |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | AS -1013S-MTR |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | 1013S-MTR |
| Product Name | A+ Server 1013S-MTR |
| Product Line | A+ Server |
| Brand Name | Supermicro |
