Switches & Hubs
Expected delivery 3 to 7 business days (exceptions applied)
Allied Telesis
COMMUTATEUR D'ACCÈS GÉRÉ LITE DE COUCHE 3 24X 10/100T 4X LIAISONS MONTANTES SFP
COMMUTATEUR D'ACCÈS GÉRÉ LITE DE COUCHE 3 24X 10/100T 4X LIAISONS MONTANTES SFP
- Doté de ports Fast Ethernet pour accélérer le taux de transfert jusqu'à 100 Mo/s de fichiers volumineux et de ressources numériques sur votre réseau
- La technologie Fast Ethernet offre une solution idéale pour étendre les connexions réseau aux salles de conférence, aux laboratoires, aux halls et aux groupes de travail des départements
- Utile pour l'unité multi-locataire et l'unité multi-entreprise avec des classificateurs de trafic de couche 4 et une limite de bande passante
Bloc de texte
Impossible de charger la disponibilité du service de retrait
Remise sur volume disponible - Demandez un devis.
Afficher tous les détails
Recently Viewed
COMMUTATEUR D'ACCÈS GÉRÉ LITE DE COUCHE 3 24X 10/100T 4X LIAISONS MONTANTES SFP
Résumé des informations sur le produit
À propos du produit

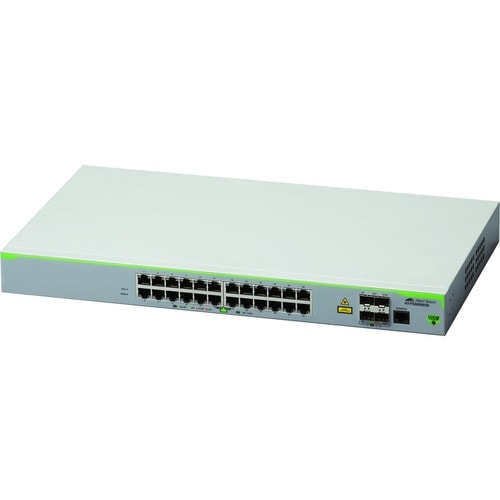

Fast Ethernet Managed Access Switch
The FS980M/28 features 24 x 10/100TX ports and 4 x 100/1000X SFP uplink/stacking ports.
CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Allied Telesis Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Stack port provides an easy and hassle-free way to extend your office network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 4 |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 4 |
| Physical Characteristics | |
| Weight (Approximate) | 7.05 lb (3200 g) |
| Form Factor | Wall Mountable |
| Height | 1.70" (43.20 mm) |
| Width | 17.32" (440 mm) |
| Depth | 10.12" (257 mm) |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Uplink |
| 24 x Fast Ethernet Network | |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100Base-TX | |
| Ethernet Technology | Gigabit Ethernet |
| Fast Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | AT-FS980M/28-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | AT-FS980M/28 |
| Product Name | CentreCOM AT-FS980M/28 Ethernet Switch |
| Product Line | CentreCOM |
| Product Series | FS980M |
| Brand Name | Allied Telesis |
