À propos du produit

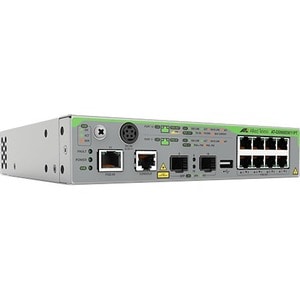

The Allied Telesis GS980EM Series of Gigabit Layer 3 Lite PoE++/PoE pass-through switches offer an impressive set of features in a compact design. Ideal for deployment at the network edge, the GS980EM Series feature flexible Power over Ethernet capabilities to support IoT device connectivity in today's converged business environments.
Overview
Allied Telesis GS980EM Series are secure and reliable, offering 8 x Gigabit PoE enabled ports and 2 x SFP uplinks, and providing a high value solution for flexible PoE at the network edge.
The GS980EM/10H can provide up to 90 Watts (PoE++) on all ports. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting and lighting controllers, and more. The GS980EM/10H requires a PWR300 external power supply to operate and provide PoE power. Up to three PWR300 PSUs can be used to increase the available PoE power.
The GS980EM/11PT can supply up to 30 Watts (PoE+) to connected devices. It can be powered by an AC power adapter, or by PoE. When deployed together, the GS980EM/11PT can be powered by the GS980EM/10H, while PoE pass-through enables power from the GS980EM/10H to pass through the GS980EM/11PT to power connected end points.
- Allied Telesis Autonomous Management FrameworkTM (AMF) edge node
- Vista Manager EX compatible
- AMF-Security compatible
- Full 30 Watts of PoE+
- Up to 90 Watts of PoE++ (GS980EM/10H only)
- PoE pass-through (GS980EM/11PT only)
- AlliedWare Plus Enterprise-class operating system
- Energy Efficient Ethernet saves power
- Fanless design for silent operation
- Active Fiber Monitoring
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 98 W |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 62 W |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| 2 x Gigabit Ethernet Uplink | |
| 1 x PoE | |
| Physical Characteristics | |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Form Factor | DIN Rail Mountable |
| Rack-mountable | |
| Height | 1.67" (42.50 mm) |
| Width | 8.27" (210 mm) |
| Depth | 7.09" (180 mm) |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | AT-GS980EM/11PT-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | GS980EM/11PT |
| Product Name | Gigabit Layer 3 Lite PoE Pass-Through Switch |
| Product Line | CentreCOM |
| Product Series | GS980EM |
| Brand Name | Allied Telesis |
