À propos du produit

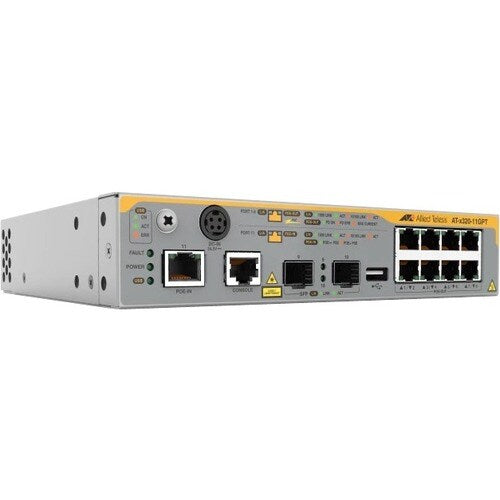

8 x 10/100/1000T PoE+ ports, 1 x 10/100/1000 PoE-in port, and 2 x 100/1000X SFP uplinks, with the ability to be both powered by PoE, and pass-through PoE to end devices, make the x320-11GPT ideal for IoT device connectivity in today's smart building networks.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- The desktop installation makes it ideal for deployments outside the wiring closet
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- Quickly and easily set up a wired network with 8 networking ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Power Description | |
| Power Source | PoE |
| Power Adapter | |
| Power Consumption | 22 W |
| PoE (RJ-45) Port | Yes |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| 2 x Gigabit Ethernet Expansion Slot | |
| 1 x Gigabit Ethernet PoE-in | |
| Physical Characteristics | |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Form Factor | Compact |
| Desktop | |
| Rack-mountable | |
| Height | 1.67" (42.50 mm) |
| Width | 8.27" (210 mm) |
| Depth | 7.09" (180 mm) |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | AT-X320-11GPT-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | x320-11GPT |
| Product Name | x320-11GPT Layer 3 Switch |
| Product Series | x320 |
| Brand Name | Allied Telesis |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ag |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1v | |
| IEEE 802.1x | |
| IEEE 802.2 | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ac | |
| IEEE 802.3ad | |
| IEEE 802.3az | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ab |
