À propos du produit
Allied Telesis x530 Series switches are a high-performing and feature-rich choice for today's networks, featuring 24 Gigabit ports and 4 x 10 Gigabit uplinks. Combined with the ability to stack multiple units, the x530 Series provides a versatile solution for enterprise applications.
Powerful network management
Allied Telesis Autonomous Management Framework™ (AMF) automates many everyday tasks including configuration management, easing the workload of modern networks. The entire network can be managed as a single virtual device with powerful centralized features. Growing the network can be accomplished with plug-and-play simplicity, and network node recovery is fully zero-touch.
AMF secure mode increases network security with management traffic encryption, authorization, and monitoring. AMF Guestnode allows third party devices, such as IP phones and security cameras, to be part of an AMF network.
Network resiliency
Today's converging online services means there is increasing demand for highly-available networks with minimal downtime. VCStack™ , in conjunction with link aggregation, provides a network with no single point of failure and application resiliency.
x530 Series switches can form a VCStack of up to eight units for enhanced resiliency and simplified device management. Long Distance Stacking (VCStack LD), which enables stacks to be created over long distance fiber links, makes the x530 Series the perfect choice for distributed environments too.
Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications.
Reliable
The x530 Series was designed with reliability in mind, and guarantees continual delivery of essential services. With dual built-in power supplies and near-hitless online stack reconfiguration, maintenance may be performed without affecting network uptime.
Secure
A secure network environment is guaranteed. The x530 Series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control.
Future proof
The x530 Series ensures a future-proof network, with superior flexibility and the ability to stack multiple units. All x530 Series models feature 10 Gigabit uplink ports and a comprehensive IPv6 feature set, to ensure they are ready for future network traffic demands.
- Allied Telesis Autonomous Management FrameworkTM (AMF)
- VCStackTM up to 8 units locally, or over long distance
- Multi-Gigabit Ethernet ports for 1G/2.5G/5G
- 2.5/5 G for high-speed wireless APs
- Up to 60W PoE++ power per port (x530DP models)
- EPSRTM (master and transit) and G.8032 ERPS for resilient rings
- OpenFlow for SDN
- Active Fiber Monitoring (AFM)
- Upstream Forwarding Only (UFO)
- VLAN Translation
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 85 W |

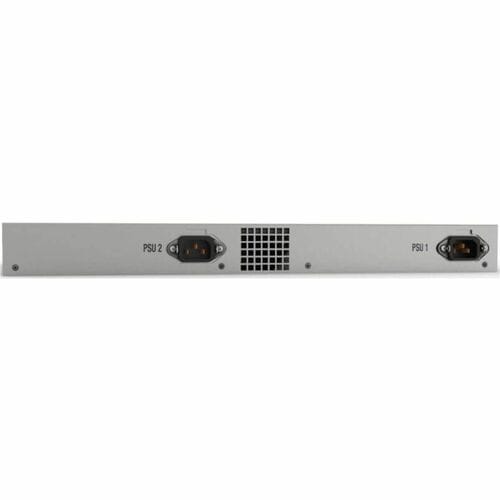

| Number of Power Supplies Installed | 2 |
| Physical Characteristics | |
| Weight (Approximate) | 11.68 lb (5300 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.36" (441 mm) |
| Depth | 12.72" (323 mm) |
| Miscellaneous | |
| Application/Usage | Industrial |
| Enterprise | |
| Business | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | ATX53052GTXMB95 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | X530-52GTXm |
| Product Name | X530-52GTXm Layer 3 Switch |
| Product Series | x530 |
| Brand Name | Allied Telesis |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 10GBase-X | |
| 5GBase-T | |
| Ethernet Technology | 5 Gigabit Ethernet |
| Gigabit Ethernet | |
| 10 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 40 x Gigabit Ethernet Network | |
| 8 x 5 Gigabit Ethernet Network | |
| 2 x Stack | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1v |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.2 | |
| IEEE 802.3 | |
| IEEE 802.3ad | |
| IEEE 802.3x | |
| IEEE 802.3ab | |
| IEEE 802.1s | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.1AX | |
| IEEE 802.1ag | |
| IEEE 802.1ab | |
| IEEE 802.3z | |
| IEEE 802.3u | |
| IEEE 802.3az | |
| IEEE 802.3bz |
