À propos du produit
Allied Telesis x950 Series switches are ideal for the modern enterprise network core, where stacking creates a resilient local or distributed solution. These powerful switches support 100 Gigabit connectivity, and provide the capacity that today's Smart City and IoT networks need.
Overview
x950 Series switches feature a high-performing 1.92 Terabit fabric, to eliminate bottlenecks and effortlessly forward all traffic.

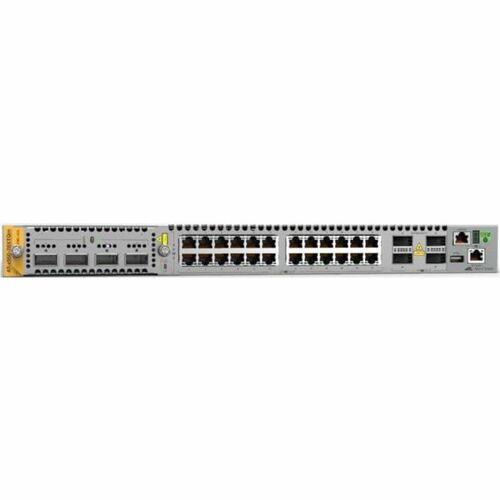

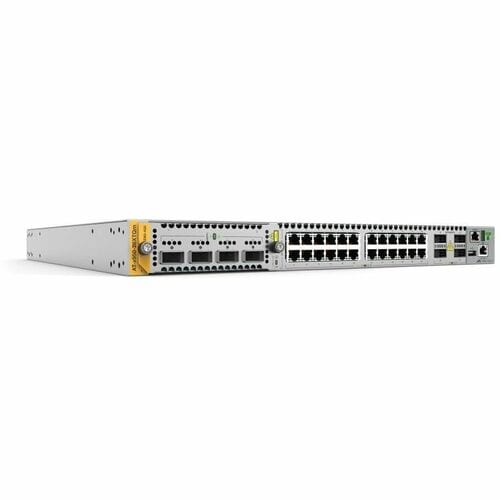

x950 switches feature either 24 x 1/10 Gigabit SFP+ ports or 24 x 1/2.5/5/10 Gigabit copper ports to enable flexible deployment, while 4 x built-in 40G/100G ports provide high-speed backbone connectivity. With an expansion (XEM) bay, plus the ability to stack multiple units, extra capacity can be seamlessly added for a future-proof network.
Smart City and IoT networks
Large switching and routing tables support Smart City networks and the Internet of Things (IoT). The x950 Series meets the increasing demand for the convergence of multiple services.
Network automation
Allied Telesis Autonomous Management Framework™ (AMF) meets the increasing management requirements of modern converged networks, by automating many everyday tasks. AMF has powerful features that allow an entire network to be easily managed as a single virtual device.
Vista Manager™ EX is an intuitive graphical tool for monitoring and managing AMF wired and Autonomous Wave Control (AWC) wireless devices. Full visibility and powerful features enable proactive management of large networks.
Device and network management
The Device GUI on the x950 Series enables graphical monitoring of key switch features to support easy management.
Integrated into the Device GUI, Vista Manager mini supports visibility and management of AMF wired and AWC wireless network devices, making it ideal as a one-stop solution for small to medium-sized networks.
AWC is an intelligent, easy to use Wireless LAN controller that automatically maintains optimal wireless coverage. Vista Manager mini includes AWC floor and heat maps showing wireless coverage. It also supports AWC Channel Blanket hybrid operation, providing maximum performance and seamless roaming.
Secure
The x950 Series is packed with advanced security features to protect the network-from the edge to the core. This includes powerful control over network traffic types and protection against attacks.
AMF enables secure management without additional complexity.
Resilient
The convergence of network services has led to increasing demand for highly-available networks with minimal downtime. Virtual Chassis Stacking (VCStack™), in conjunction with link aggregation, provides a network with no single point of failure, and a resilient solution for high-availability applications. The x950 Series can form a VCStack of up to eight units, at any port speed, for enhanced resiliency and simplified management. With VCStack over Long Distance (VCStack LD), stacks can also be created over long distance fiber links, making it the perfect choice for distributed environments too.
Allied Telesis Ethernet Protection Switched Ring (EPSRing™) and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications.
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Quickly and easily set up a wired network with 24 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| QSFP+ | |
| Total Number of Expansion Slots | 4.0 |
| Miscellaneous | |
| Application/Usage | Network |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 16.09 lb (7300 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 17.52" (445 mm) |
| Compatible Rack Unit | 1U |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 100 Gigabit Ethernet Expansion Slot |
| 24 x 10 Gigabit Ethernet Network | |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | ATX95028XTQMB91 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | x950-28XTQm |
| Product Name | x950-28XTQm Layer 3 Switch |
| Product Series | x950 |
| Brand Name | Allied Telesis |
| Media & Performance | |
| Network Technology | 10GBase-T |
| 100GBase-X | |
| 40GBase-X | |
| Ethernet Technology | 40 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| 10 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 255.30 W |

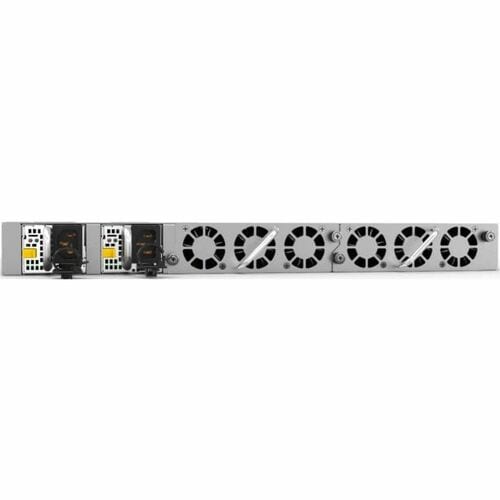

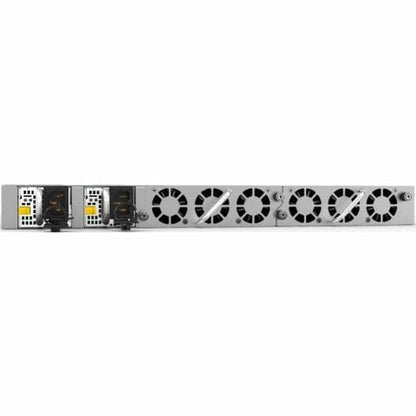

| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1w |
| IEEE 802.1x | |
| IEEE 802.2 | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3an | |
| IEEE 802.3az | |
| IEEE 802.3ba | |
| IEEE 802.3bj | |
| IEEE 802.3bz | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1ad | |
| IEEE 802.1ae | |
| IEEE 802.1s | |
| IEEE 802.1v |
