À propos du produit

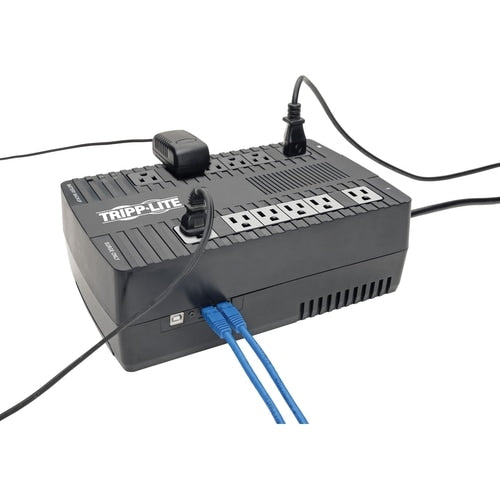

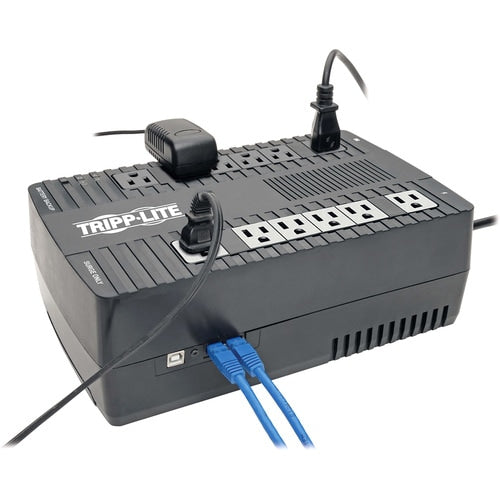

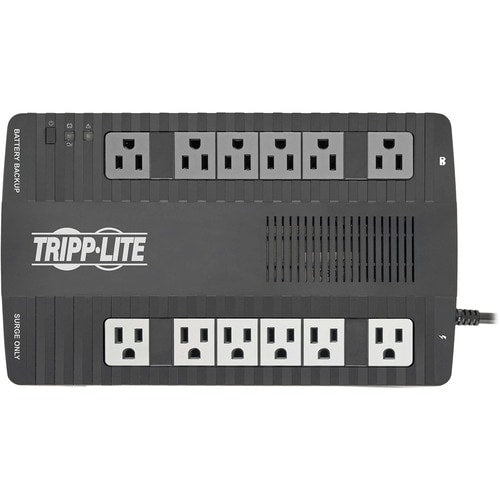

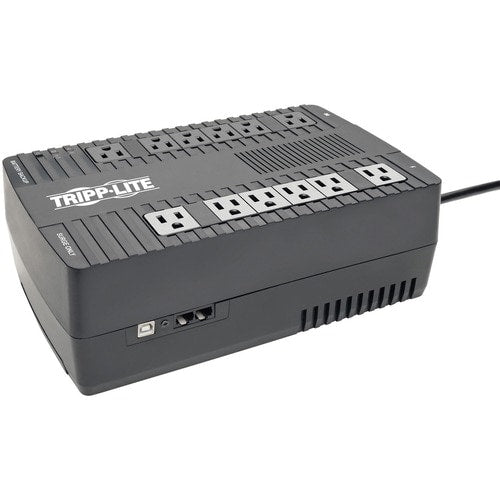

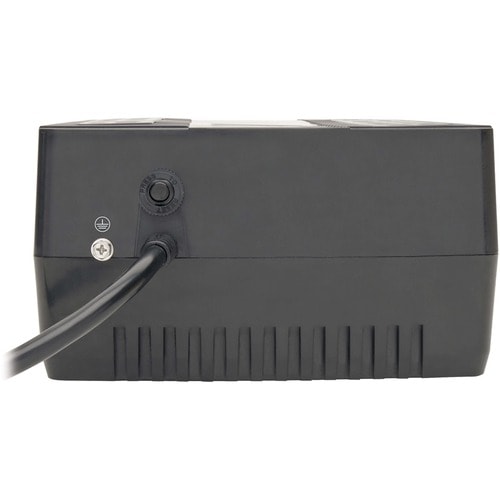

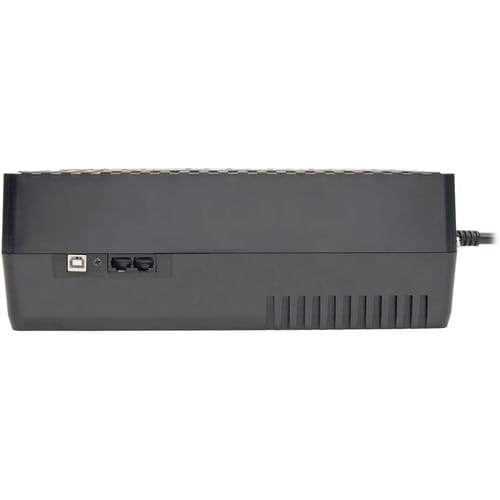

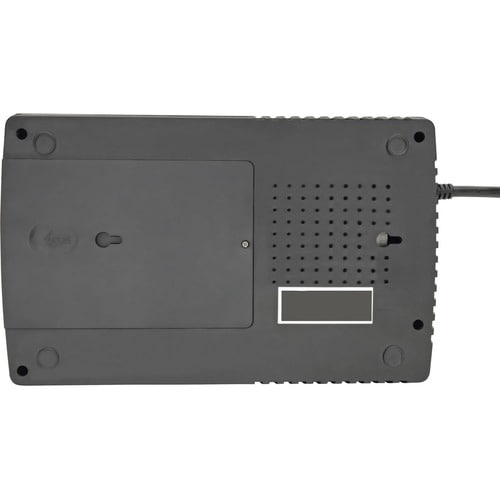

AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >96% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| Warranty | |
| Additional Warranty Information | 2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only). |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Backup/Run Time (Half Load) | 11 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 9 Hour |
| Management | |
| Alarm | Replace Battery |
| Battery Backup | |
| Overload | |
| Low Battery | |
| Fault | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | Energy Star |
| Country of Origin | Vietnam |
| Recycled | No |
| Assembly Required | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 15.84 lb (7184.90 g) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Height | 4.14" (105.16 mm) |
| Width | 7.48" (189.99 mm) |
| Depth | 12" (304.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | AVR750U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Name | AVR 750VA Desktop UPS |
| Product Series | AVR |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 115 V AC | |
| 110 V AC | |
| Input Current | 12 A |
| Surge Energy Rating | 316 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Technical Information | |
| Application/Usage | Digital Signage |
| Computer | |
| Blu-ray Player | |
| Gaming Console | |
| Home Theater | |
| Home/Office | |
| ATM | |
| Media Center | |
| TV | |
| Printer | |
| Router | |
| Security System | |
| Dataline Protection | RJ-11 |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| Receptacle Detail | 12 x NEMA 5-15R |
