À propos du produit

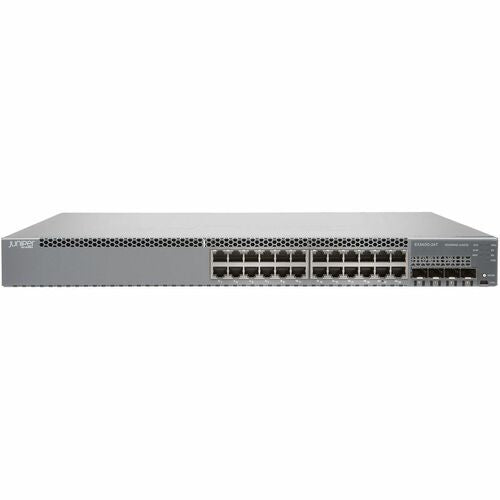

Juniper Networks EX3400 Ethernet Switch delivers a high-performance, flexible, and cost-effective solution for today's most demanding converged data, voice, and video enterprise access environments.
To simplify network operations, the EX3400 is hardware-ready to act as a satellite device to Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. The EX3400 also supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
To simplify network operations, the EX3400 is hardware-ready to act as a satellite device to Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. The EX3400 also supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Quickly and easily set up a wired network with 24 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 100 W |
| Redundant Power Supply Supported | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP+ |
| SFP+ | |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 6 |
| Miscellaneous | |
| Package Contents | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 24 x Gigabit Ethernet Network | |
| 2 x 40 Gigabit Ethernet Uplink | |
| Physical Characteristics | |
| Weight (Approximate) | 10.49 lb (4758.183961 g) |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| Height | 1.72" (43.69 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 13.80" (350.52 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | B-EX340024T-5M2-E |
| Manufacturer Website Address | http://www.juniper.net |
| Manufacturer | Juniper Networks, Inc |
| Product Model | EX3400-24T |
| Product Name | EX3400-24T Ethernet Switch |
| Product Series | EX4300 |
| Brand Name | Juniper |
| Media & Performance | |
| Network Technology | 40GBase-X |
| 10GBase-X | |
| 1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| 40 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
