À propos du produit

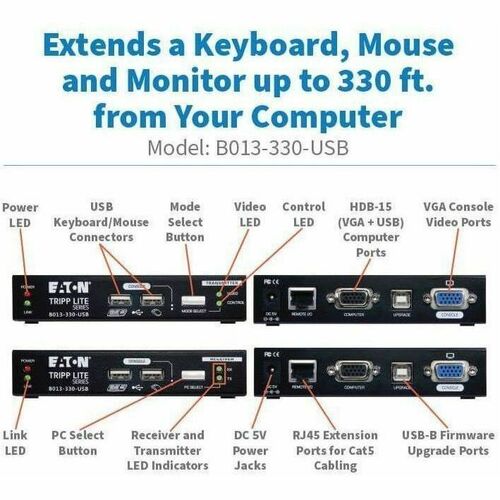

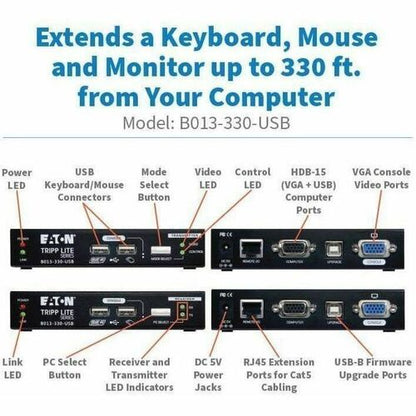

Extends Console up to 330 ft. from Computer, KVM or Server

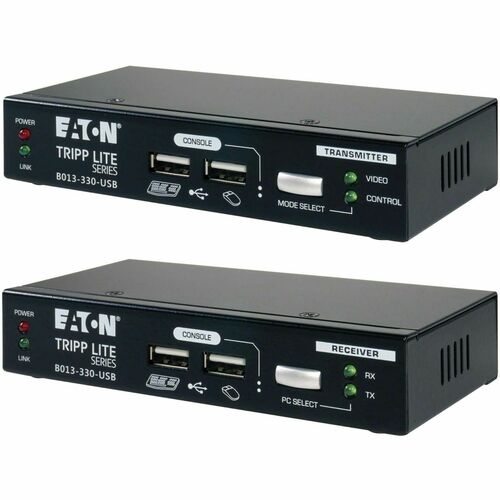

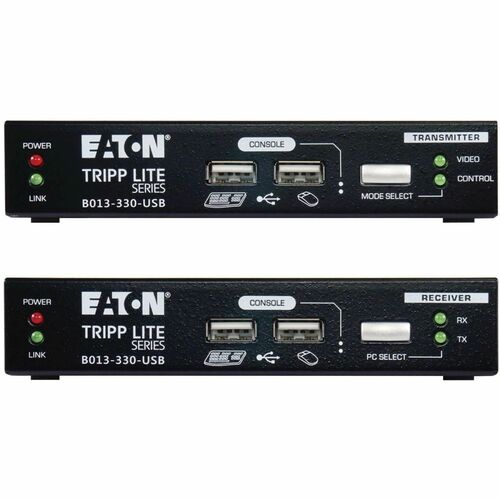

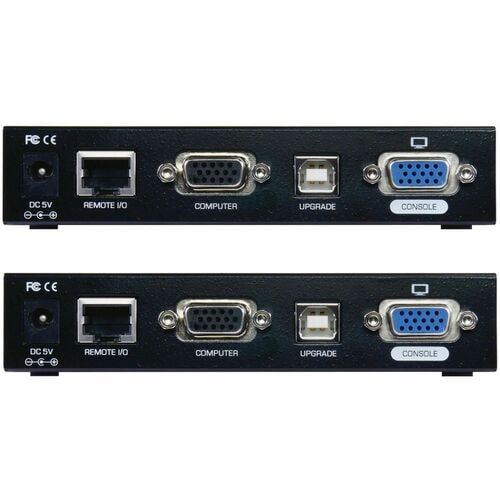

This KVM extender lets you control a computer, server or KVM switch from up to 330 feet (100 meters) away. Just connect the included transmitter and receiver with a Cat5 UTP cable (sold separately). Console ports on both the transmitter and receiver allow local or remote control of the connected device. Plus, the receiver doubles as a two-port KVM, allowing the connection of a local computer.
Recommended for Small to Medium-Sized Businesses (SMBs)
Being able to extend VGA video and USB signals up to 330 feet is ideal in commercial office spaces where the computers are not close to your workstation, as well as SMB applications needed KVM switches without requiring an IP network for long-distance control. The B013-330-USB supports VGA video resolutions up to 1920 x 1200.
Pure Hardware Solution Is Easy to Install and Operate
The B013-330-USB supports all major operating systems, including Windows and macOS. All necessary cables are included as a convenient off-the-shelf package, making the KVM Extender simple to maintain. As a pure hardware solution, you don't have to worry about software/network conflicts. This KVM Extender is compatible with any computers using VGA and USB connections.
Spécifications techniques
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 330 ft (100584 mm) |
| Device Type | KVM Extender |
| Power Description | |
| Input Voltage | 240 V AC |
| Frequency | 50 Hz |
| 60 Hz | |
| Input Voltage Range | 100-240V |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 6 |
| Number of VGA Ports | 4 |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | Mac |
| Windows | |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | KVM Extender |
| Manufacturer Part Number | B013-330-USB |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | Box |
| Manufacturer | Eaton Corporation |
| Product Model | B013-330-USB |
| Product Name | KVM Extender with VGA and USB Connections, Up to 330 ft. |
| Brand Name | Tripp Lite series |
| Physical Characteristics | |
| Transmitter Height | 1.02" (25.91 mm) |
| Transmitter Width | 5.15" (130.81 mm) |
| Transmitter Depth | 2.55" (64.77 mm) |
| Receiver Height | 1.02" (25.91 mm) |
| Receiver Width | 5.15" (130.81 mm) |
| Receiver Depth | 2.55" (64.77 mm) |
| Transmitter Weight (Approximate) | 10.22 oz (289.85 g) |
| Receiver Weight (Approximate) | 10.22 oz (289.85 g) |
| Product Color | Black |
| Color Family | Black |
