Features | In-Line Surge Protector Keeps Your HDMI Source or Display Safe

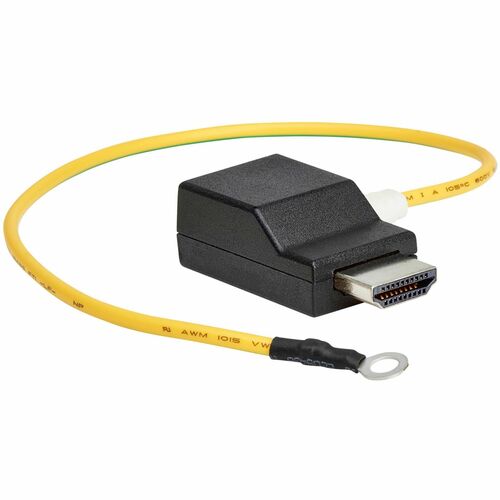

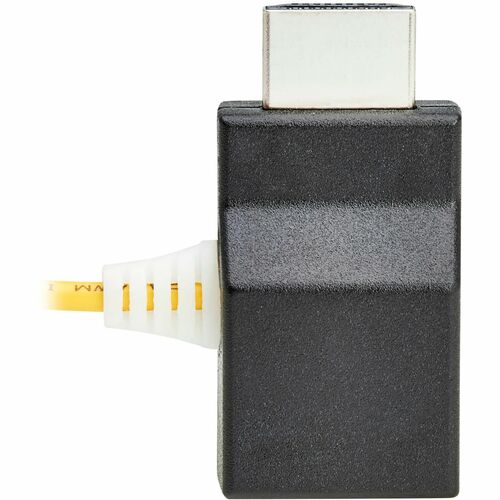

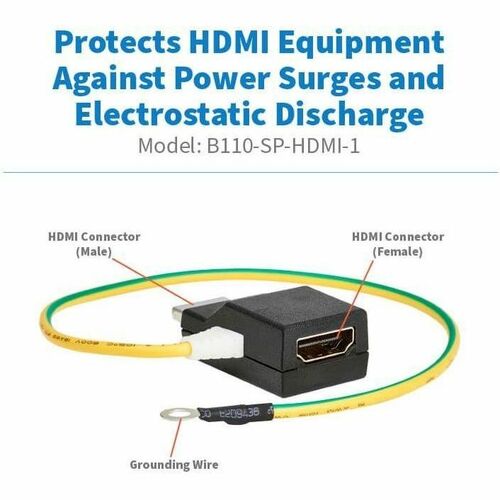

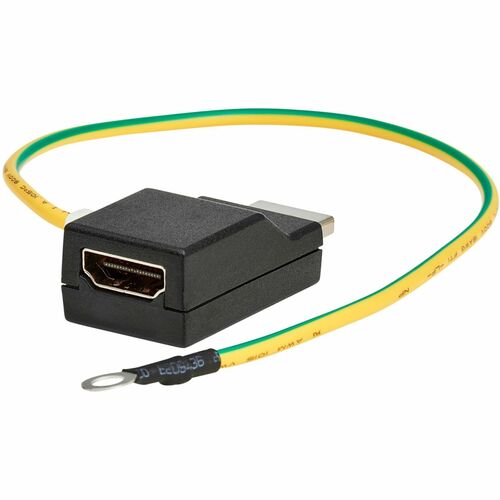

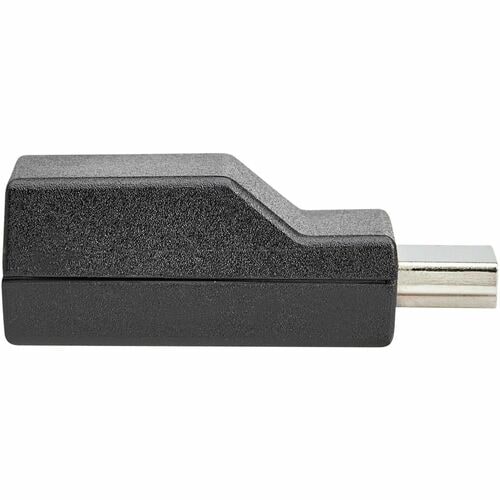

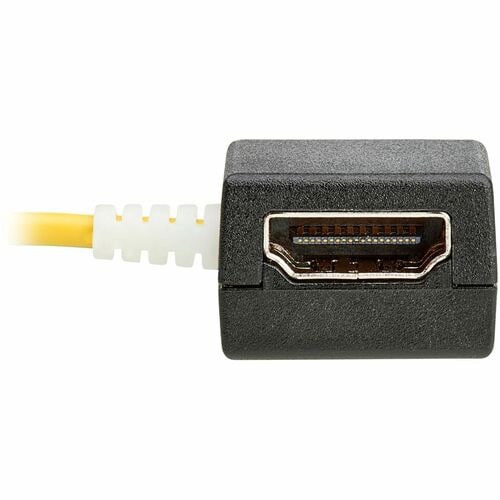

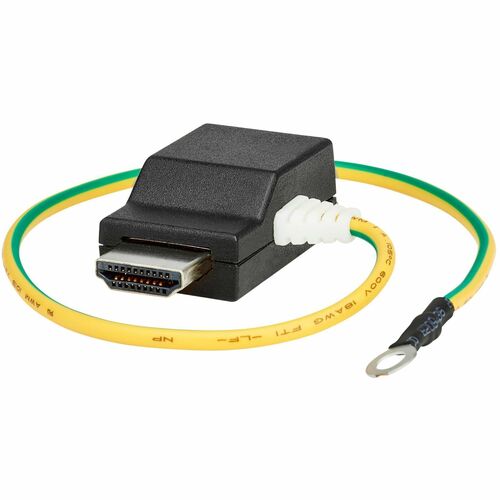

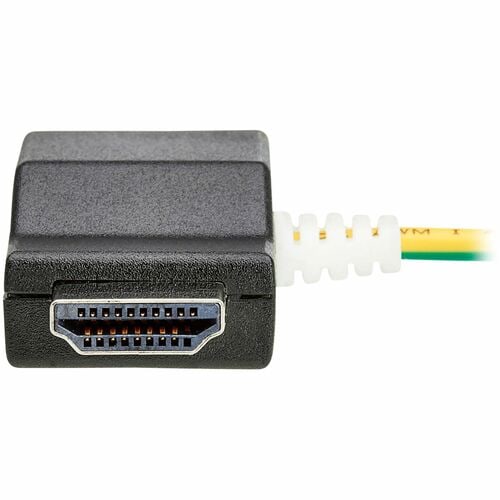

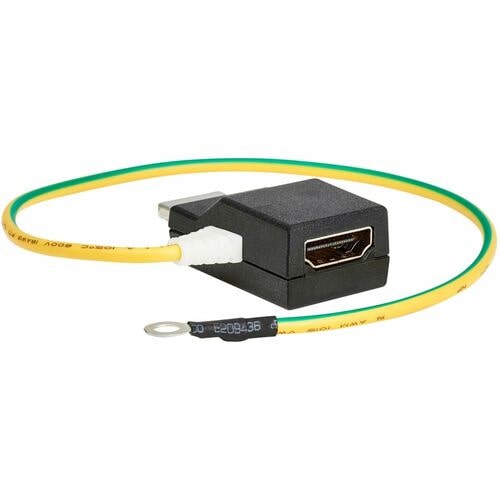

Ideal for trade shows, convention halls, home theaters and other digital signage applications, the B110-SP-HDMI-1 protects connected equipment from damage caused by power surges and electrostatic discharge (ESD). Just connect it between your source (media server, cable/satellite box, etc.) and display (HDTV, monitor, projector) using HDMI cables (such as P568-003-Series cables, sold separately). Note : Two B110-SP-HDMI-1 surge protectors are required to protect both source and display.
Your Last Defense Against Intruding Voltage Spikes
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Low TDMS (Transition Minimized Differential Signaling) loss ensures you get the crispest and cleanest image on your display without any interference, including static lines. The B110-SP-HDMI-1 meets the following IEC regulations: IEC 61000-4-2 (ESD) +/- 15kV (air), +/- 8kV (contact); IEC 61000-4-4 (EFT) 40A (5/50ns); and IEC 61000-4-5 5A (8/20µs).
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The B110-SP-HDMI-1 supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. It is a passive design and requires no software or external power supply. The compact housing is designed to endure in applications where static discharge is likely to occur.
TAA-Compliant for GSA Schedule Purchases
The B110-SP-HDMI-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Protect your sensitive devices with 0 J energy rating
- Prolong the life of your equipment by connecting them to the surge protector
Spécifications techniques
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Power Description | |
| Surge Energy Rating | 0 J |
| Technical Information | |
| Dataline Protection | HDMI |
| Physical Characteristics | |
| Weight (Approximate) | 15.84 oz (449.06 g) |
| Height | 0.58" (14.73 mm) |
| Width | 1.37" (34.80 mm) |
| Depth | 0.86" (21.84 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | ABS Plastic |
| General Information | |
| Product Type | Surge Protector Module |
| Manufacturer Part Number | B110-SP-HDMI-1 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | Box |
| Manufacturer | Eaton Corporation |
| Product Model | B110-SP-HDMI-1 |
| Product Name | In-Line HDMI Surge Protector - 4K 60 Hz, HDCP, IEC Compliant, TAA |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Application/Usage | Projector |
| Home Theater System | |
| Monitor | |
| HDTV | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
