À propos du produit

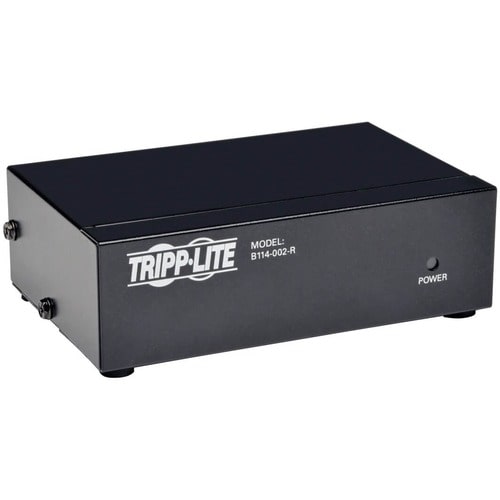

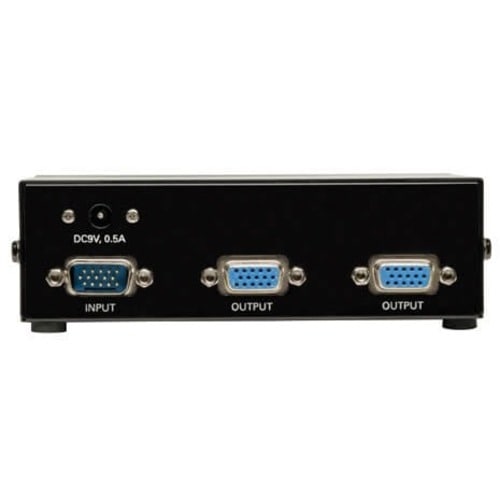

Two-port, VGA/SVGA video splitter with signal booster technology provides bandwidth support at 350MHz to let you simultaneously display video on two monitors at once. A built-in booster allows a video signal (up to 2048 x 1536 at 60Hz) to be transmitted up to 210' from the source. Two standard HD15 female ports are used to connect the monitors while the third HD15 male port is used to connect your CPU. The splitter can be located up to 25' from the connected computer and up to 185' from the connected monitors. The number of connected monitors can be expanded by cascading up to three levels of additional splitters together. Video splitter is designed for use with computers with a HD15 port.
- Simultaneously displays video on 2 VGA/SVGA monitors
- A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source
- The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors
- 350Mhz bandwidth support
Spécifications techniques
| Media & Performance | |
| Maximum Operating Distance | 210 ft (64008 mm) |
| Power Description | |
| Input Voltage | 9 V DC |
| Warranty | |
| Additional Warranty Information | 1 year limited warranty |
| Physical Characteristics | |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Additional Information |
|

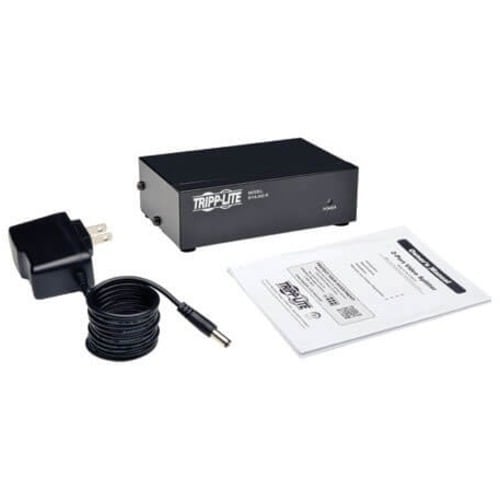

| Package Contents |
|
| Country of Origin | China |
| Technical Information | |
| Device Supported | Computer |
| Number of Displays Supported | 2 |
| Number of Input Devices Supported | 1 |
| Video | |
| Graphics Modes | QXGA |
| Maximum Video Resolution | 2048 x 1536 |
| Maximum Video Bandwidth | 350 MHz |
| Interfaces/Ports | |
| Number of VGA Outputs | 2 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Inputs | 1 |
| General Information | |
| Product Type | Video Switchbox |
| Manufacturer Part Number | B114-002-R |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 |
| Manufacturer | Eaton Corporation |
| Product Model | B114-002-R |
| Product Name | Two-port VGA/SVGA Video Splitter |
| Brand Name | Tripp Lite by Eaton |
