Connect 3 HDMI Source Devices to an HDMI Display and Switch Between Them
This 4K HDMI switch allows you to connect three HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player, cable/satellite DVR and video game system to one HDMI port on a monitor, projector or TV. Or you can connect three computers or media centers to an HDMI display for exhibiting digital signage or giving presentations.
Hassle-Free Setup of 3 High-Definition Computers, Blu-Ray Players or Other Sources

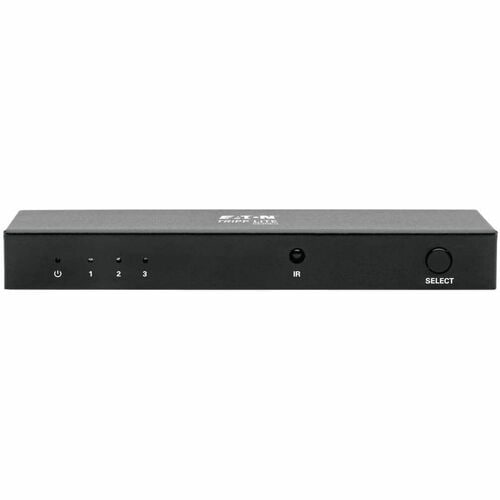

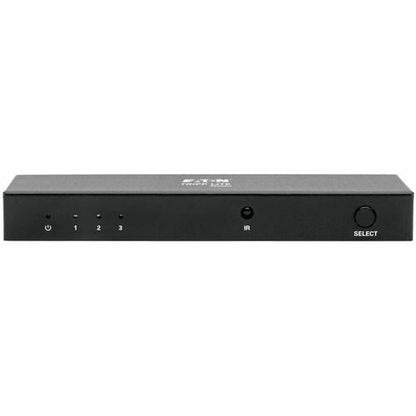

The B119-003-UHD is ideal for home entertainment systems, schools, point-of-sale displays, trade shows and anywhere else digital video is displayed. Connect up to three source devices to the HDMI input ports using HDMI cabling (sold separately), and plug the included external power supply into an AC power source. Another HDMI cable connects the HDMI output port to a monitor, projector or television. A red LED indicates the unit is receiving power, and blue LEDs indicate an HDMI signal is being received.
Easy Switching of Audio/Video Source Devices

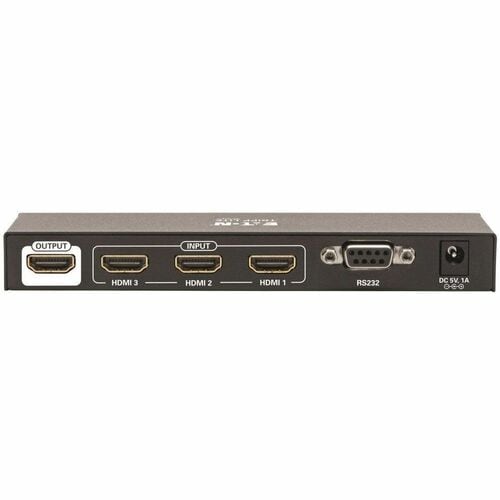

You can switch from one source device to another in one of three ways: the Select button on the unit, the included remote control, or RS-232 serial control. An RS-232 serial port connects a computer via DB9 cable (sold separately).
Meets the Latest Audio/Video Standards, Including HDCP 2.2
The plug-and-play 3-port HDMI switch with remote control comes in a durable metal housing and requires no software or drivers. It meets current 3D, EDID, HDCP 2.2 and HDMI 2.0 standards to ensure you can use the switch with the most up-to-date Blu-ray players and other components. It supports Ultra High Definition (UHD) video resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz and 36-bit True Color (12 bits per channel), as well as 7.1-channel surround sound, DTS-HD, Dolby TrueHD, DSD (Direct Stream Digital) and HD (HBR) audio.
One-Year Warranty and Environmentally Responsible Design
The B119-003-UHD comes with a one-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
- Quickly switches both video and audio between sources without physical access
- Switch between 3 sources to a single display
- A great solution for connecting display
- Trouble free connection with display
- 4096 x 2160 resolution for high-quality video delivery
Spécifications techniques
| Media & Performance | |
| Maximum Operating Distance | 16.40 ft (5000 mm) |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 8.47 oz (240 g) |
| Height | 0.79" (20 mm) |
| Width | 6.30" (160 mm) |
| Depth | 1.97" (50 mm) |
| Technical Information | |
| Device Supported | Display |
| Connectivity Technology | Cable |
| Number of Displays Supported | 1 |
| Number of Input Devices Supported | 3 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Audio/Video Switchbox |
| Manufacturer Part Number | B119-003-UHD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B119-003-UHD |
| Product Name | 3-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (F/3xF) |
| Brand Name | Tripp Lite by Eaton |
