À propos du produit

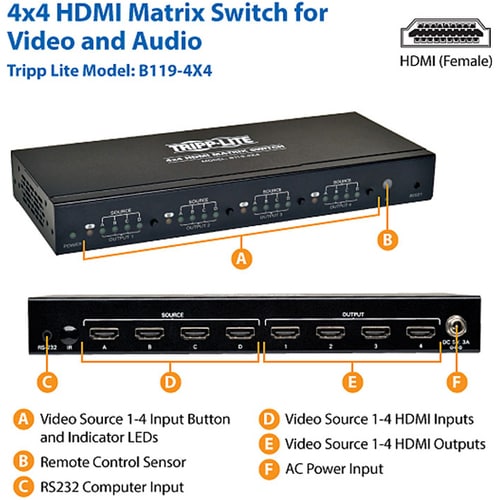

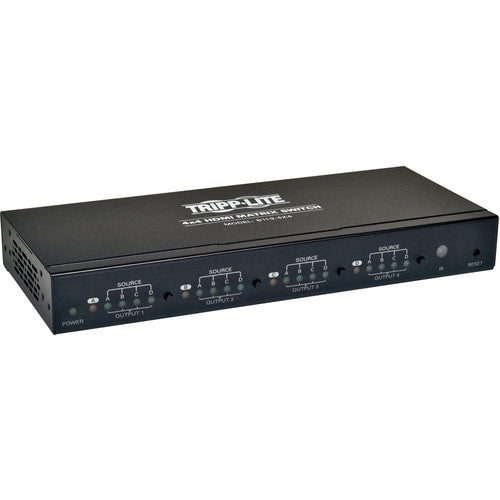

Tripp Lite B119-4X4 is a 4x4 HDMI Matrix Switch that routes high definition video from any four HDMI sources to any four HDMI displays. It supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz. The 4x4 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit.
- Share multiple HDMI sources between multiple monitors
- Supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz
- Plug-and-play; No software or drivers required
Spécifications techniques
| Power Description | |
| Input Voltage | 5 V DC |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Technical Information | |
| Device Supported | Display |
| Number of Displays Supported | 4 |
| Number of Input Devices Supported | 4 |
| Interfaces/Ports | |
| Serial Port | Yes |

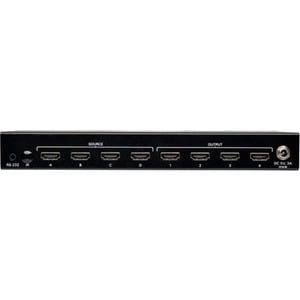

| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Miscellaneous | |

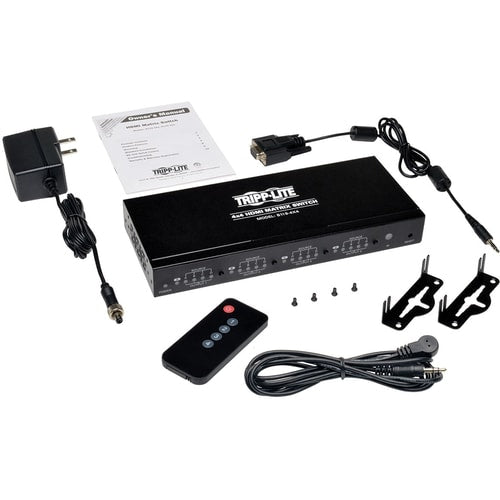

| Package Contents |
|
| Certifications & Standards | TAA |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 1.45 lb (657.71 g) |
| Height | 1.20" (30.48 mm) |
| Width | 9.20" (233.68 mm) |
| Depth | 3.90" (99.06 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Audio/Video Switchbox |
| Manufacturer Part Number | B119-4X4 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B119-4X4 |
| Product Name | 4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p |
| Brand Name | Tripp Lite by Eaton |
