À propos du produit

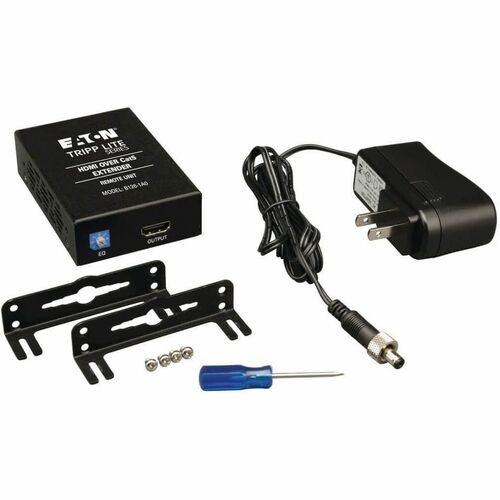

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Works in tandem with B126-002 or B126-004 transmitter unit
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play-no software or drivers to install
Spécifications techniques
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 1 |
| HDMI Out | Yes |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 200 ft (60960 mm) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Receiver Height | 1" (25.40 mm) |
| Receiver Width | 2.50" (63.50 mm) |
| Receiver Depth | 3.60" (91.44 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Extender Receiver |
| Manufacturer Part Number | B126-1A0 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B126-1A0 |
| Product Name | B126-1A0 Video Console |
| Brand Name | Tripp Lite series |
