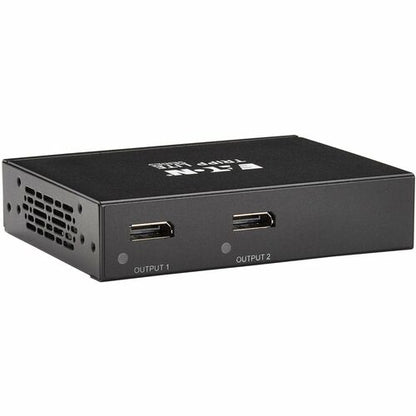

Connect up to 2 DisplayPort Monitors to Your DisplayPort Computer
This multi-display splitter connects two 4K or 8K DisplayPort monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156-002-8K helps you create video walls, give audio/video presentations in front of large audiences or stream 4K/8K video to multiple locations.
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays

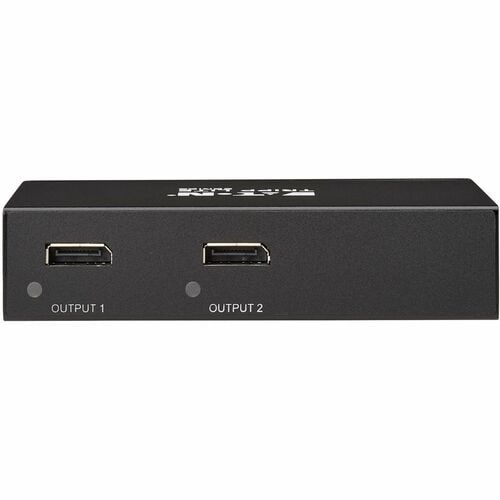

By connecting the DisplayPort input to a source that supports DisplayPort MST Mode, you may connect two monitors simultaneously. This allows you to display the same image on each monitor, extend your host desktop across both monitors or combine both monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal.
Transmits 8K Video Using DisplayPort Cabling
The B156-002-8K supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz per monitor with 12-bit Deep Color and 2-channel LPCM audio in extended desktop and mirror modes. In video wall mode, it supports expanded resolutions, including 7680 x 2160 at 60 Hz (2x1 vertical configuration) and 3840 x 4320 at 60 Hz (1x2 horizontal configuration). The B156-002-8K is compliant with DisplayPort 1.4 standards and is backward compatible with previous versions. Note : When in video wall mode, it is recommended to use monitors of the same brand and model to ensure full functionality.
Supports HDR and 4:4:4 for the Sharpest Video Possible
The B156-002-8K supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K content with no complications. This splitter also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Designed for Plug-and-Play Convenience

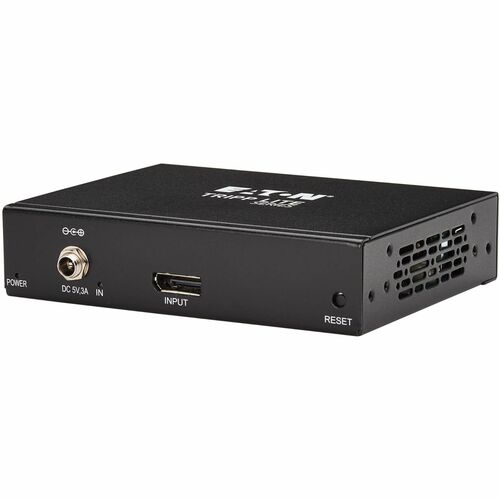

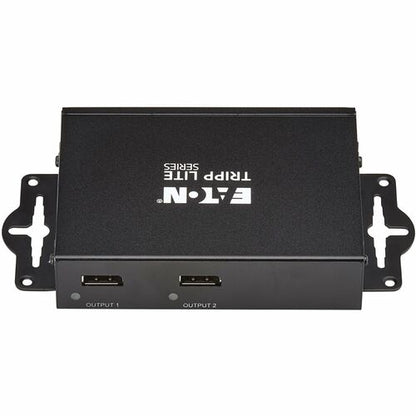

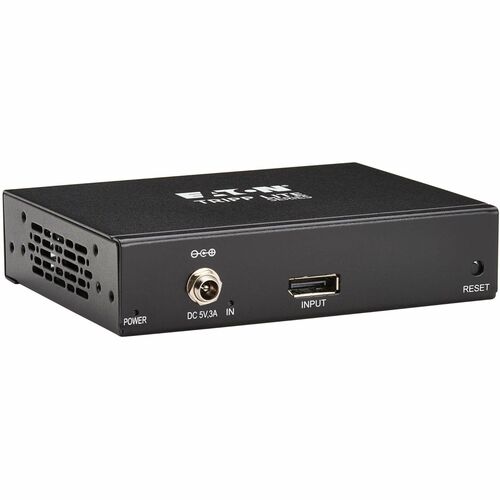

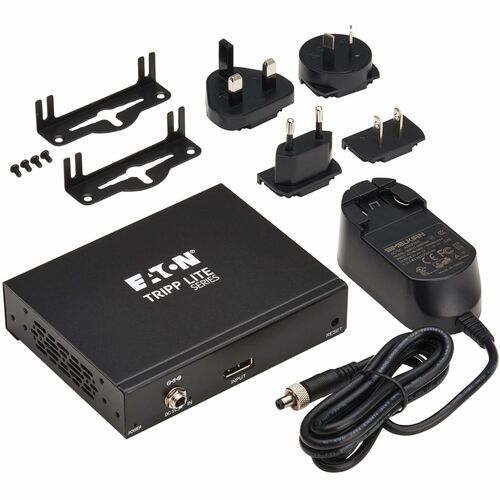

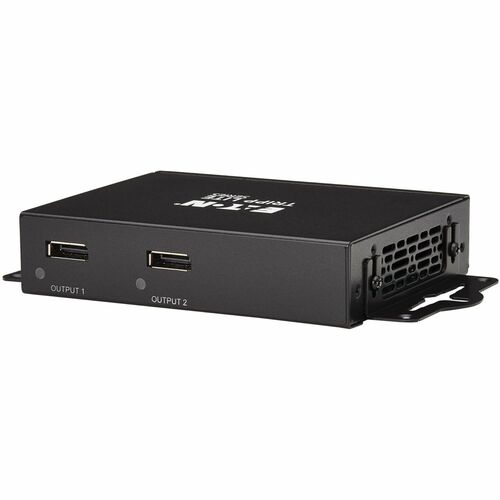

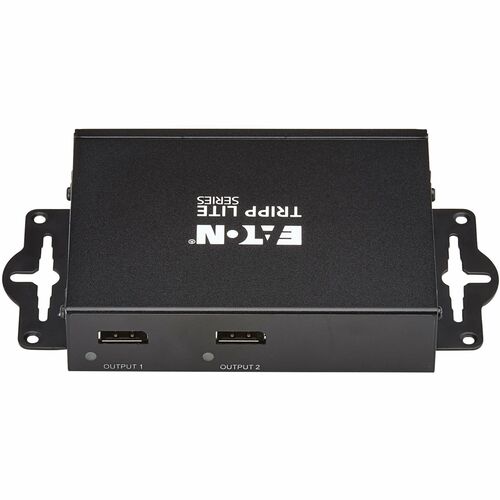

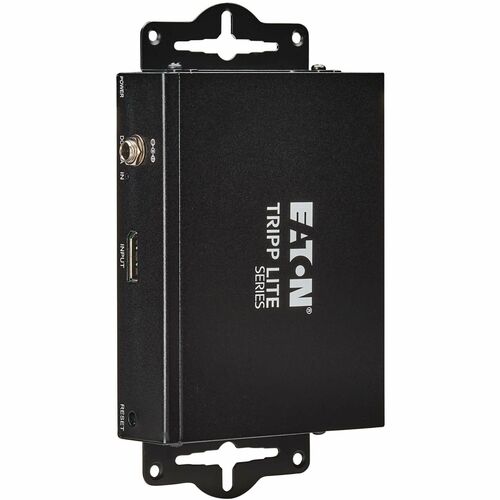

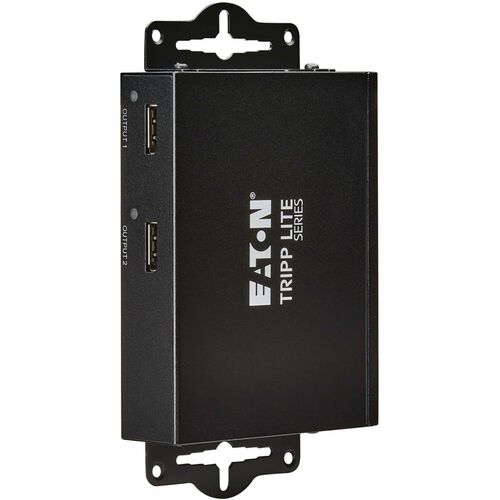

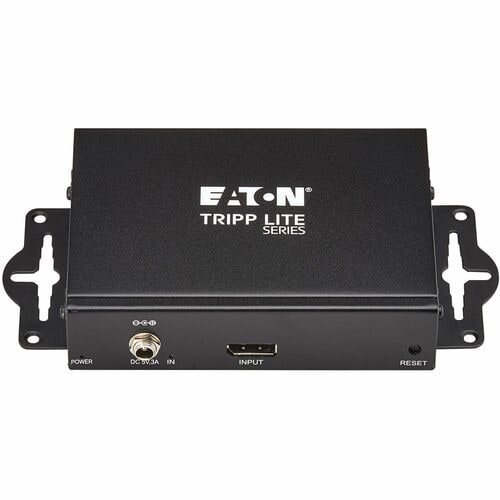

Just connect your source device and your monitors with user-supplied DisplayPort cables up to 15 feet (4.6 meters). No software or drivers are needed. Plug the included external power supply into a compatible AC outlet. Four international plug adapters (North America, Europe, U.K., Australia) are also included. Rugged metal enclosure comes with detachable brackets for mounting on a level surface.
TAA-Compliant for GSA Schedule Purchases
The B156-002-8K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- Works on 60 Hz maximum frequency for efficient performance
- Supports up to 60 Hz frequency
- Up to 7680 x 2160 video resolution.
- 7680 x 2160 resolution for high-quality video delivery
- DisplayPort interface that transmits both audio and video signals through a single connection to deliver versatile performance
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
Spécifications techniques
| Technical Information | |
| Maximum Frequency | 60 Hz |
| Video | |
| Maximum Video Resolution | 7680 x 2160 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Interfaces/Ports | |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of DisplayPort Inputs | 1 |
| Connector Gender | Female |
| Miscellaneous | |
| Application/Usage | PC |
| Monitor | |
| Package Contents |
|
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Signal Splitter |
| Manufacturer Part Number | B156-002-8K |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B156-002-8K |
| Product Name | B156-002-8K 2-Port DisplayPort to DisplayPort Multi-Monitor Splitter |
| Brand Name | Tripp Lite series |
| Physical Characteristics | |
| Weight (Approximate) | 1.50 lb (680.39 g) |
| Height | 1.16" (29.46 mm) |
| Width | 5.03" (127.76 mm) |
| Depth | 3.93" (99.82 mm) |
| Connector Plating | Nickel |
| Product Color | Black |
| Color Family | Black |
| Product Material | ABS Plastic |
