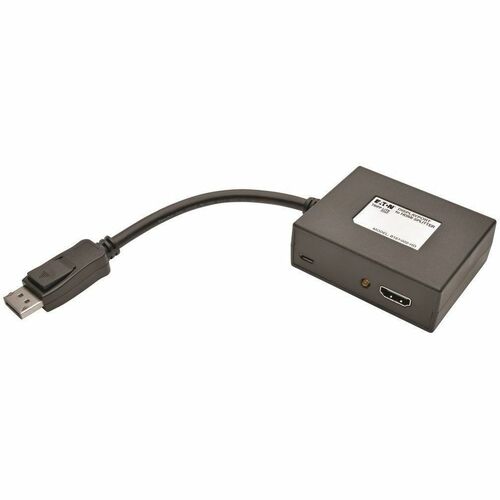

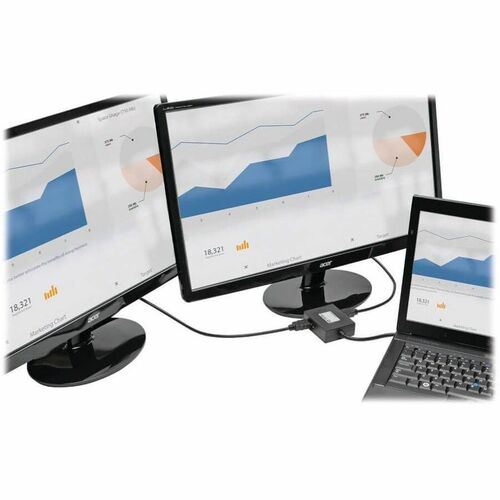

The B157-002-HD 2-Port DisplayPort to HDMI Splitter converts and splits a DisplayPort video signal for display on two HDMI-enabled monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, retail settings, trade shows and classrooms, this compact splitter features a built-in DisplayPort cable that connects to the source. It lets you use your existing HDMI displays instead of buying new DisplayPort monitors or docking stations.

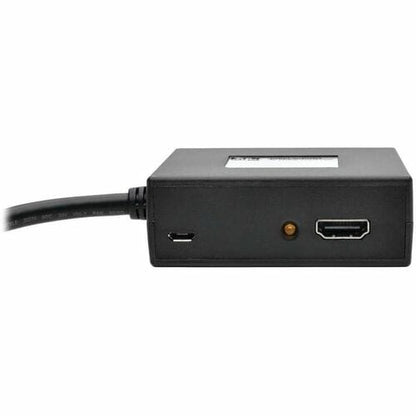

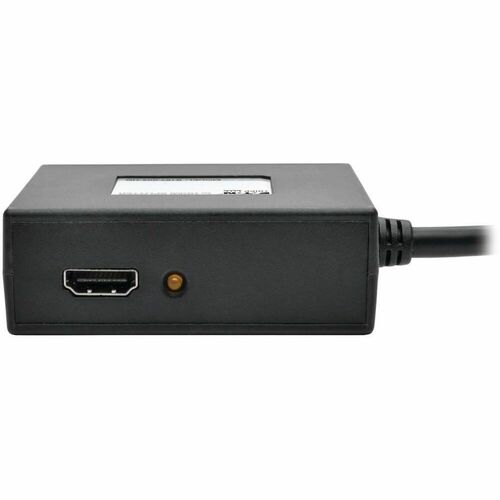

The B157-002-HD supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz, as well as HDCP, EDID and DDC. Orange LEDs next to each output port indicate whether the splitter is powered on and transmitting a signal to the connected displays. The splitter works with all operating systems and is small enough to carry in your backpack or computer bag. Plug-and-play convenience means no software or drivers are needed. An included USB Micro-B cable connects between the source and the splitter to provide power, so no external power supply is required.
The B157-002-HD supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz, as well as HDCP, EDID and DDC. Orange LEDs next to each output port indicate whether the splitter is powered on and transmitting a signal to the connected displays. The splitter works with all operating systems and is small enough to carry in your backpack or computer bag. Plug-and-play convenience means no software or drivers are needed. An included USB Micro-B cable connects between the source and the splitter to provide power, so no external power supply is required.
- Supports video resolutions up to 1920 x 1080 @ 60 Hz

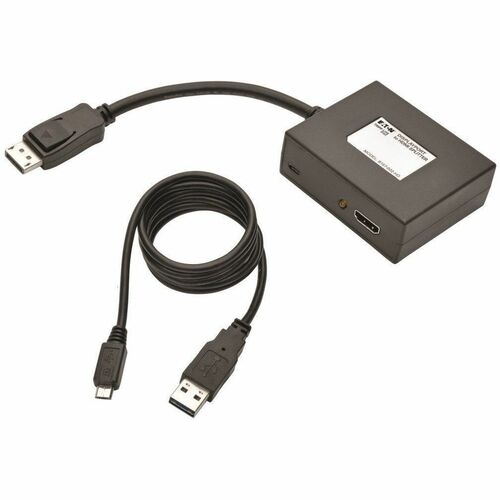

- Included USB Micro-B cable supplies power to unit
- Works with all operating systems
- Compact enough for easy carrying in backpack or laptop bag
- Plug and play-no software or drivers required
Spécifications techniques
| Physical Characteristics | |
| Shipping Weight (Approximate) | 9.60 oz (272.16 g) |
| Shipping Height | 1.70" (43.18 mm) |
| Shipping Width | 7.90" (200.66 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | B157002HD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B157-002-HD |
| Product Name | 2-Port DisplayPort to HDMI Splitter |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Device Supported | TV |
| Audio/Video Device | |
| Monitor | |
| Projector | |
| Splitter | |
| Cable Type | DisplayPort/HDMI |
| Connector Type on First End | DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Female |
| Supported Resolution | 1920 x 1080 |
| Connector on First End Details | 1 x DisplayPort Digital Audio/Video - Male |
| Connector on Second End Details | 2 x HDMI Digital Audio/Video - Female |
