À propos du produit

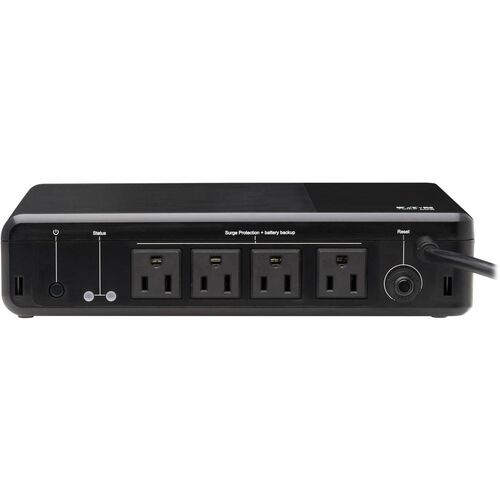

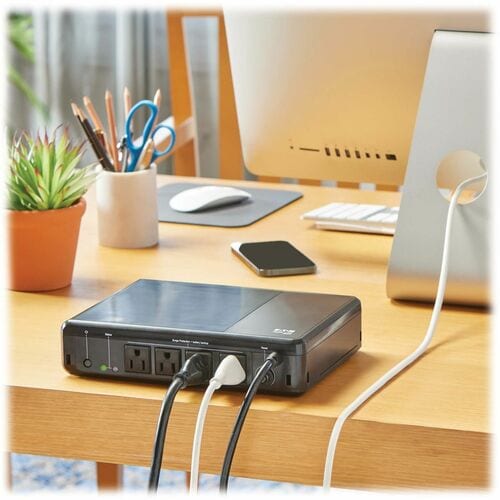

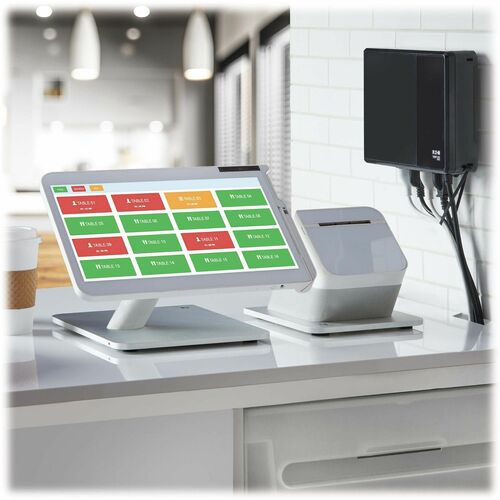

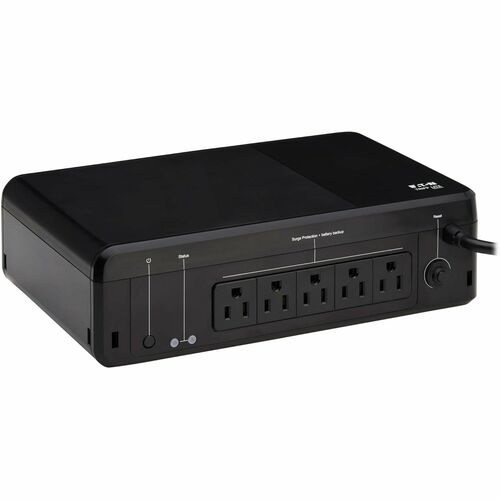

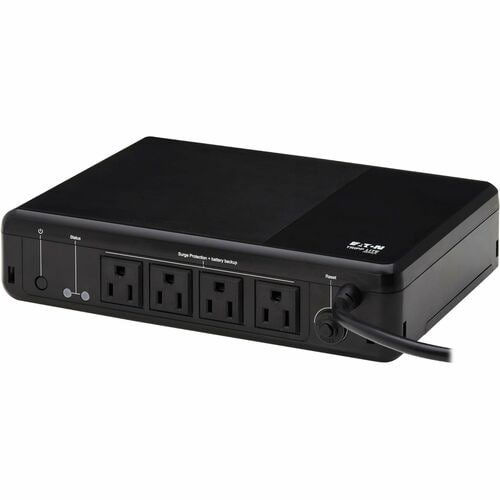

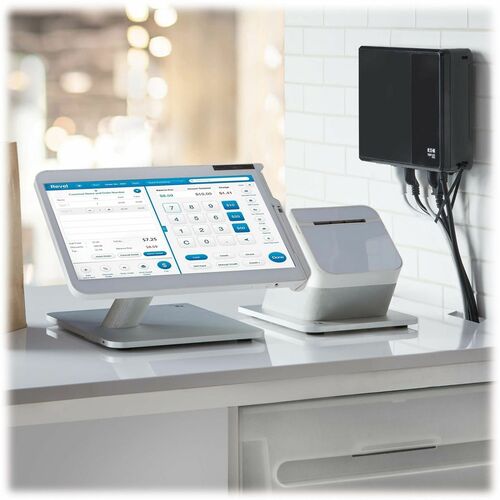

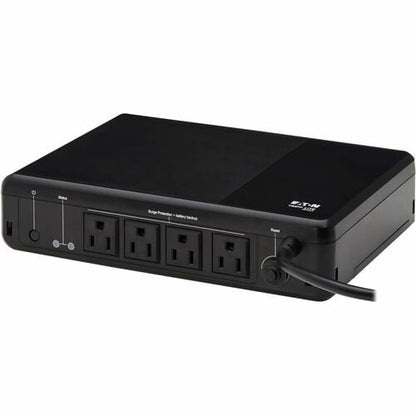

600VA battery backup for PCs and retail point-of-sale application is a standby UPS that provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise. 300-watt, 120-volt UPS protects home/office computing, networking and point-of-sale equipment in retail, kiosks, foodservice and light industrial environments. It's easy to set up in minutes. Just plug it into a properly grounded wall outlet. Press the power button and connect equipment to the UPS outlets. Input power cable, power button and status LEDs are on the same side for easy access. UPS switches to battery power to keep connected equipment running during short blackouts and brownouts, giving you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the replaceable VRLA battery fully charged so backup power is always available. It restarts automatically once power is restored.
- Protects computers and other electronic devices from harm caused by short power outages
- 300 W load capacity - backup power for your valuable electronics
- 600 VA load capacity provides sufficient backup during power failures

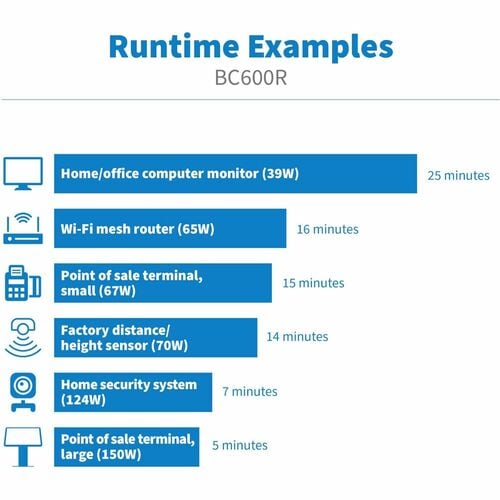

- Up to 1.50 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Environmental Conditions | |
| Sound Emission | 40 dB |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Elevation | 6561.68 ft (2000000 mm) |
| Miscellaneous | |

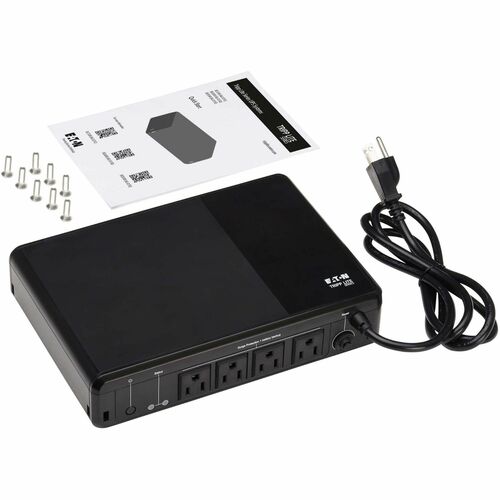

| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 4.41 lb (2000.34 g) |

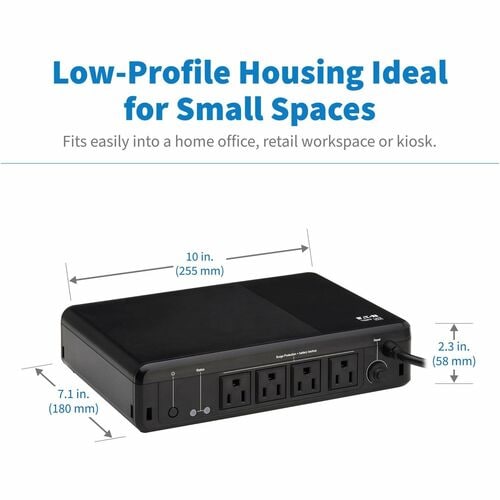

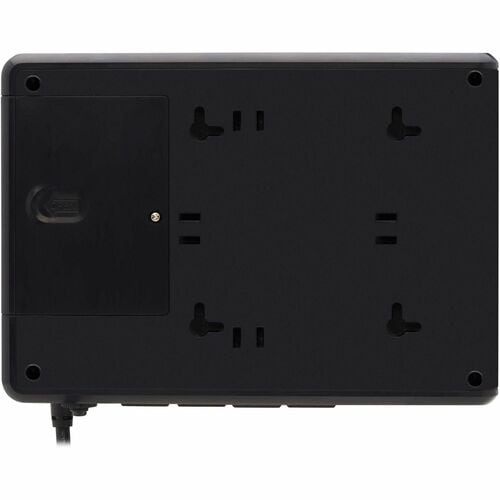

| Form Factor | Desktop/Surface/Wall Mountable |
| Height | 2.28" (57.91 mm) |
| Width | 10.04" (255.02 mm) |
| Depth | 7.09" (180.09 mm) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 5 Minute |
| Backup/Run Time (Full Load) | 1.50 Minute |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 8 Hour |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | BC600R |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Model | BC600R |
| Product Name | BC600R 600VA Desktop/Surface/Wall Mountable UPS |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 5 A |
| Surge Energy Rating | 190 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 600 VA |
| Load Capacity (Watt) | 300 W |
| Output Power Factor | 0.5 |
| Technical Information | |
| Application/Usage | Home/Office |
| Hospital | |
| Industrial | |
| Kiosk | |
| Wireless Access Point | |
| Desktop | |
| Food Service | |
| Home Network | |
| Retail | |
| POS | |
| Computer Peripheral | |
| Network | |
| Features | Green Energy Saving |
| Audible Alarm | |
| Cold Start Function | |

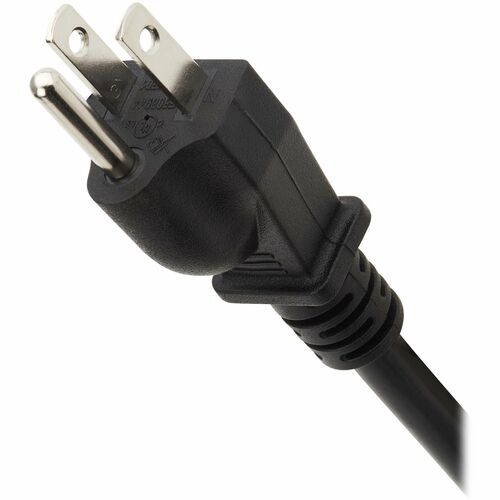

| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft (1.52 m) |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Number of Battery & Surge Outlets | 4 |
| Transfer Time | 10 ms |
| Receptacle Detail | 4 x NEMA 5-15R |
| Efficiency Detail | 97% (AC Mode) |
