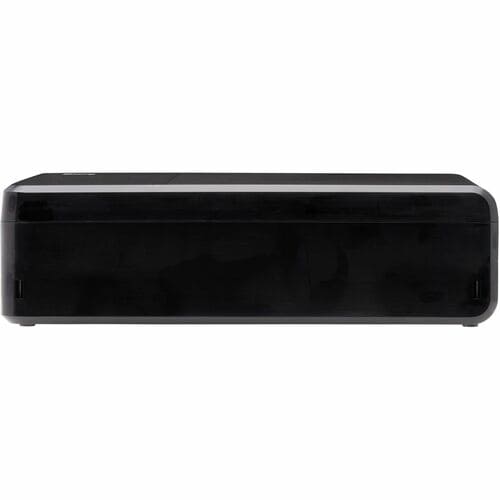

850VA/450W/120V Battery Backup for PCs and Retail Point-of-Sale Applications

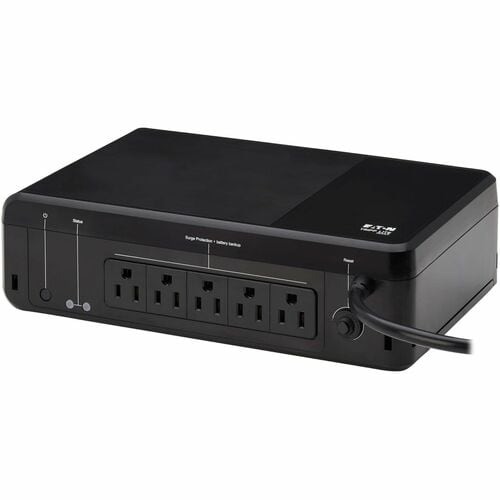

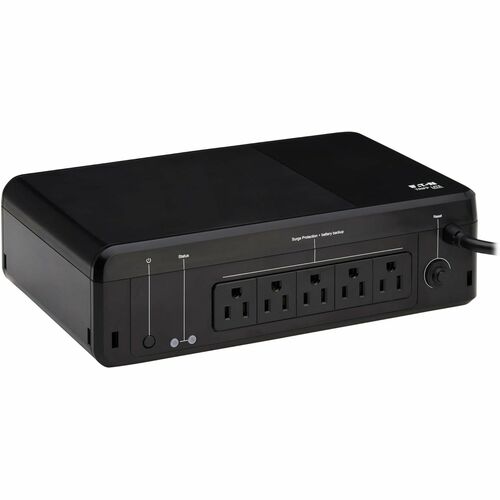

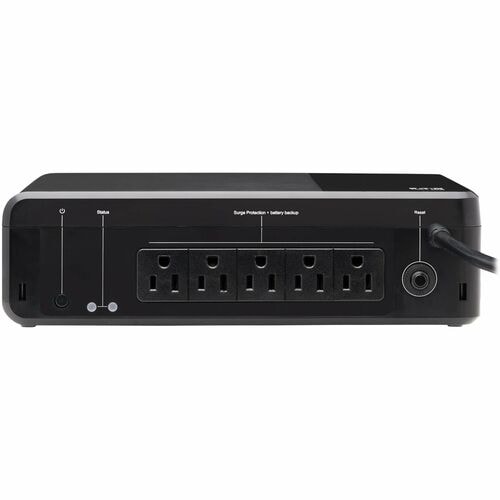

The BC850R standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It's easy to set up in minutes. Just plug the BC850R into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, outlets, power button and status LEDs are all on the same side.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts and brownouts, the BC850R switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable VRLA battery fully charged, so backup power is always available. The BC850R restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit.
Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better
Rated for 190 joules of surge suppression, the BC850R and its five NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The BC850R also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can complete a safe shutdown.
Easy Preventative Maintenance and Initial Troubleshooting
The BC850R's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
Audible Alarm and Diagnostic LEDs Keep You Informed 24/7
An audible alarm and a red LED indicate a low battery or fault condition. A green LED indicates power and line/battery mode status.
Hardened Housing Compatible with Versatile Deployment Options

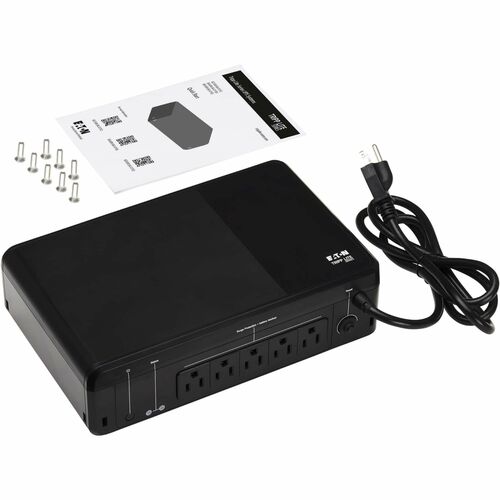

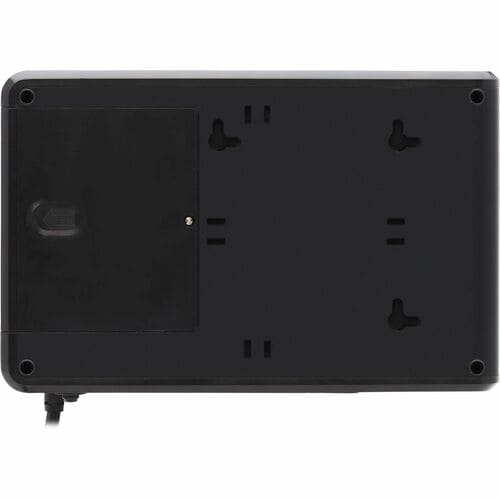

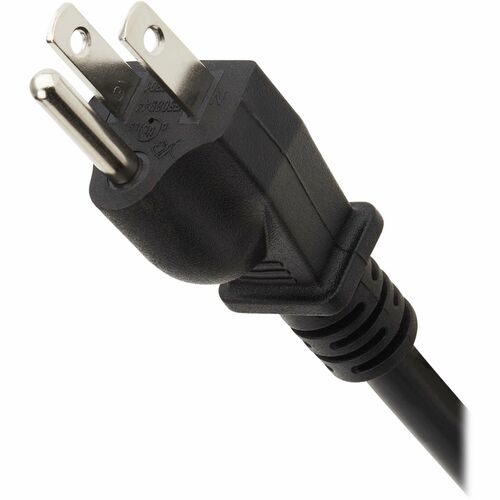

The rugged compact housing allows use in locations with uncontrolled temperature or humidity (operating temperature range: 32° to 122° F / 0° to 50° C). The BC850R's small size is suitable for desktop or floor placement. Keyhole mounting slots on the bottom enable wall mounting and are spaced in a 100 x 100 mm VESA pattern for mounting to the back of a monitor with the included hardware. Attachment points allow installation on a shelf or beam with user-supplied cable ties. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
- Compact in size and offers highly efficient solution
- 450 W load capacity - backup power for your valuable electronics
- 850 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 2.50 minute at full load
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Elevation | 6561.68 ft (2000000 mm) |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 7.05 lb (3197.83 g) |
| Form Factor | Desktop/Surface/Wall Mountable |
| Height | 3.15" (80.01 mm) |
| Width | 11.02" (279.91 mm) |
| Depth | 7.08" (179.83 mm) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 8 Minute |
| Backup/Run Time (Full Load) | 2.50 Minute |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 8 Hour |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | BC850R |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | BC850R |
| Product Name | BC850R 850VA Desktop/Surface/Wall Mountable UPS |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 7.10 A |
| Surge Energy Rating | 190 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 450 W |
| Output Power Factor | 0.53 |
| Technical Information | |
| Application/Usage | Computer Peripheral |
| Desktop | |
| Wireless Access Point | |
| Home Network | |
| Home/Office | |
| Food Service | |
| Industrial | |
| Kiosk | |
| Network | |
| POS | |
| Retail | |
| Hospital | |
| Features | Green Energy Saving |
| Audible Alarm | |
| Cold Start Function | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft (1.52 m) |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Number of Battery & Surge Outlets | 5 |
| Transfer Time | 10 ms |
| Receptacle Detail | 5 x NEMA 5-15R |
| Efficiency Detail | 97% (AC Mode) |
