À propos du produit
The BHDBT-R-SI-LR HDBaseT Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals.
Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.
You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.

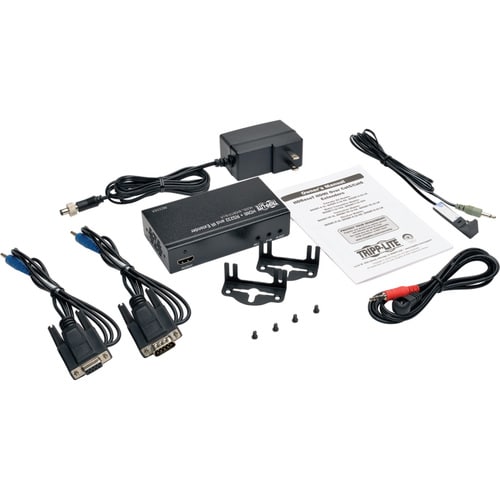

The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.
You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.
The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
- Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft. (100 m)
- Extends a 1080p @ 60 Hz signal up to 328 ft. (100 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Mounts easily to wall, rack or pole
- Plug and play-no software or drivers to install
Spécifications techniques
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6a |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 328 ft (99974.40 mm) |
| Number of Output Devices Supported | 1 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of HDMI Outputs | 1 |
| HDMI Out | Yes |
| General Information | |
| Product Type | Video Extender Receiver |
| Manufacturer Part Number | BHDBTRSILR |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | BHDBT-R-SI-LR |
| Product Name | BHDBT-R-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Receiver |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Pole-mountable | |
| Rack-mountable | |
| Receiver Height | 1.10" (27.94 mm) |
| Receiver Width | 4.50" (114.30 mm) |
| Receiver Depth | 2.50" (63.50 mm) |
| Receiver Weight (Approximate) | 8.80 oz (249.48 g) |
| Product Color | Black |
| Color Family | Black |
