À propos du produit

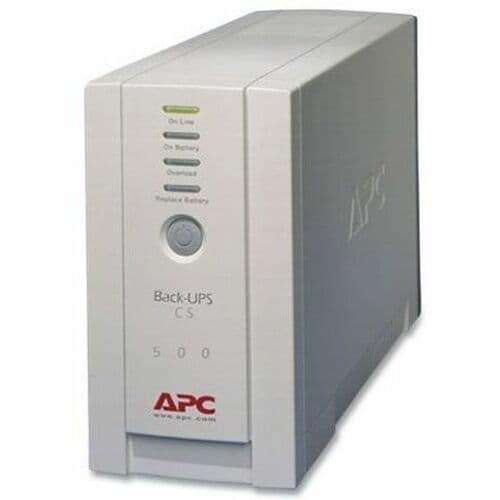

Protect your electronics with this 6-outlet, 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.
- 500 VA load capacity - work without any interruption during power outages
- 300 W load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 300 W load capacity
- 500 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 3 minute at full load
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 24 BTU/h |
| Maximum Operating Temperature | 113°F (45°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Management | |
| Alarm | Overload |
| Low Battery | |
| On Battery | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 15 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Dataline Protection | RJ-11 |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15P |
| Number of Battery & Surge Outlets | 6 |
| Receptacle Detail | 3 x NEMA 5-15R Surge |
| 3 x NEMA 5-15R | |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Current | 10 A |
| Power Consumption | 300 W |
| Surge Energy Rating | 480 J |
| Waveform Type | Stepped Approximated Sine Wave |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | BK500 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | BK500 120V Backup System |
| Product Line | Back-UPS |
| Product Series | CS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 13.82 lb (6268.65 g) |
| Form Factor | Tower |
| Height | 6.50" (165 mm) |
| Width | 3.58" (91 mm) |
| Depth | 11.18" (284 mm) |
| Product Color | Beige |
| Color Family | Beige |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Certifications & Standards | cUL Listed|California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|Industry Canada |
| Country of Origin | Philippines |
| Recycled | No |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BK500_ROHS_DECLARATION&p_FileName=BK500KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760910&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760910&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
