À propos du produit
±120VDC External Batteries Give Your Compatible 3-Phase UPS Extended Runtime
This external battery pack connects to a compatible SmartOnline® S3M-Series 3-phase UPS system to provide long-lasting battery backup for data centers, telecommunications, networks, industrial facilities, security, emergency systems and other mission-critical applications that require high capacity, high availability and extended runtime. In addition to battery backup and extended runtime, the BP240V100L can also be daisy-chained to other external battery cabinets for even longer extended-run operation.

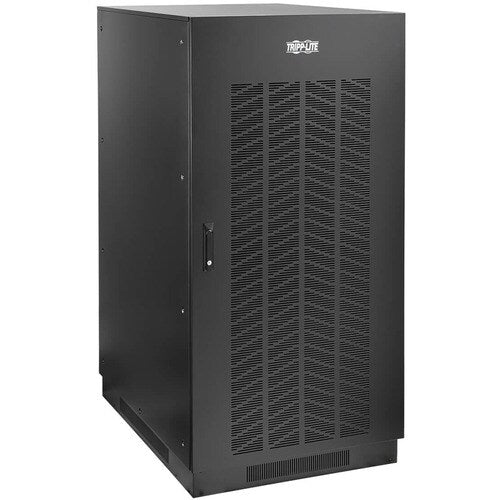

Rugged Steel Construction Designed to Last in Demanding IT Applications

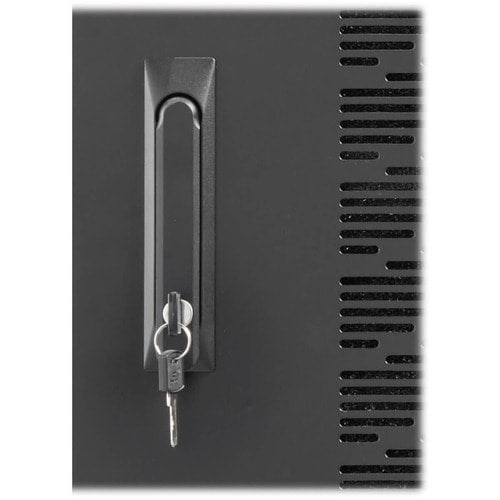

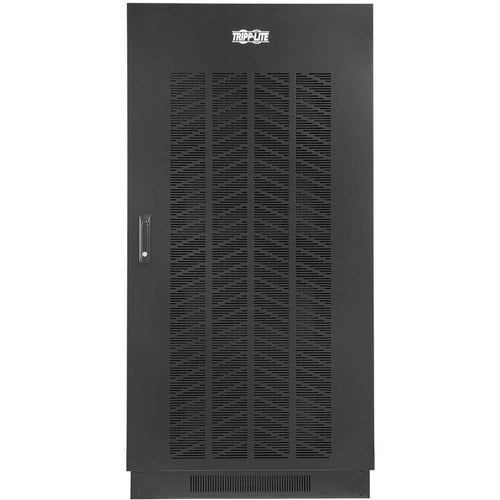

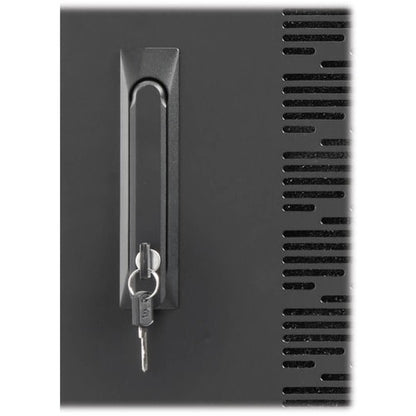

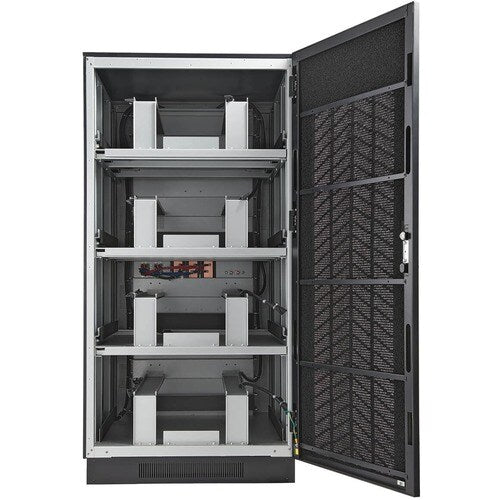

The cabinet is made from heavy-gauge steel with a baked powder-coated finish that helps prevent chipping and corrosion. The hinged front door provides easy access to the recyclable internal batteries. The door locks securely to help prevent damage, tampering or theft. Fuses and output breaker protect against potentially hazardous overcurrent.
Ships Ready for Immediate Deployment
Includes input/output terminal blocks for hardwire installation with larger UPS models. External battery cables feed into the cabinet through conduit knockouts built into the bottom panel.
- Ideal for IT applications requiring high capacity, high availability and longer runtime
- Supports daisy-chaining to additional battery packs of same model for even more runtime
- Steel cabinet with locking front door for easy access to recyclable VRLA (AGM) batteries

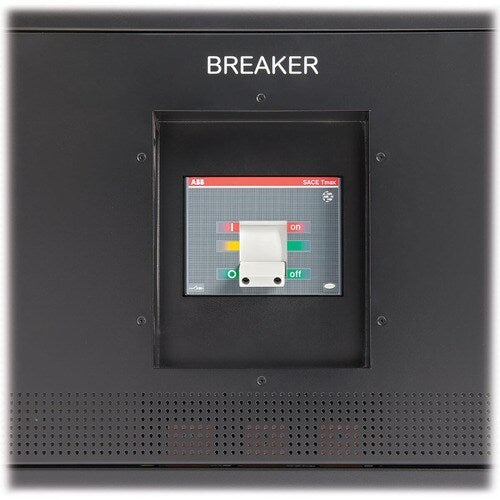

- Fuses and output breaker protect against potentially hazardous overcurrent
- Industrial design matches UPS cabinets for a clean, professional appearance
- 1-year limited warranty
Spécifications techniques
| Technical Information | |
| Output Voltage | 120 V DC |
| Battery Capacity | 100000 mAh |
| Battery Characteristics | Valve Regulated Lead Acid (VRLA) |
| Physical Characteristics | |
| Weight (Approximate) | 3612 lb (1638375.64 g) |
| Height | 13.33 ft (4064 mm) |
| Width | 80" (2032 mm) |
| Depth | 110.24" (2800.10 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Tripp Lite 3-phase 208V UPS Models:
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Battery Cabinet |
| Manufacturer Part Number | BP240V100L |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | BP240V100L |
| Product Name | SmartOnline S3M BP240V100L Battery Cabinet |
| Brand Name | Tripp Lite series |
