À propos du produit

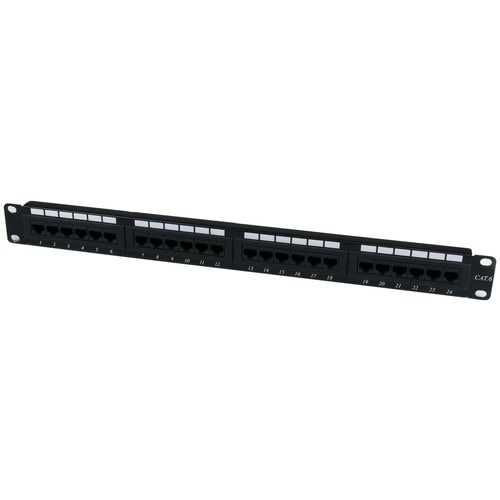

The C6PANEL2424-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

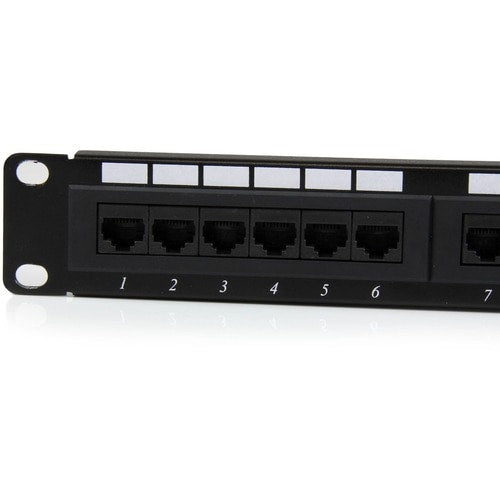

For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables.The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com's 2-year warranty.
More from the Manufacturer

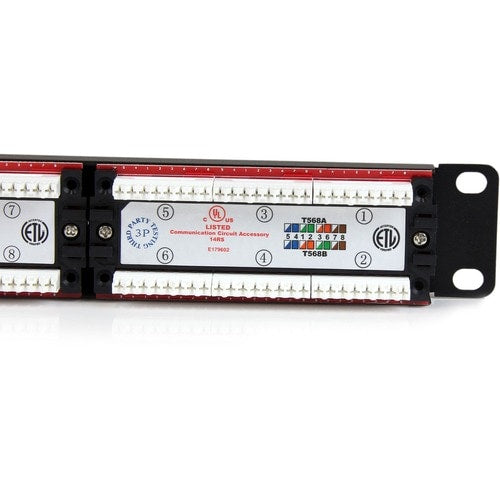

- Color coded for both T568A and T568B installations

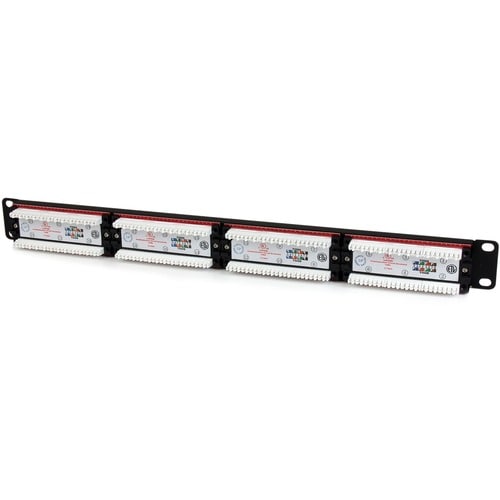

- Terminated using 110-type punch tool
- Supports both Cat5e and Cat6 cables
- Writable and erasable marking surfaces for each port
- Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
Spécifications techniques
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 24 |
| Number of RJ-11 Ports | 24 |
| Total Number of Ports | 24 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Network Patch Panel |
| Manufacturer Part Number | C6PANEL24 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 24 Port 1U Rackmount Cat 6 110 Patch Panel |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 1.28 lb (581.17 g) |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 19" (482.60 mm) |
| Depth | 1.30" (33.02 mm) |
| Compatible Rack Unit | 1U |
| Compatible Rack Width | 19" |
| Product Color | Black |
| Color Family | Black |
