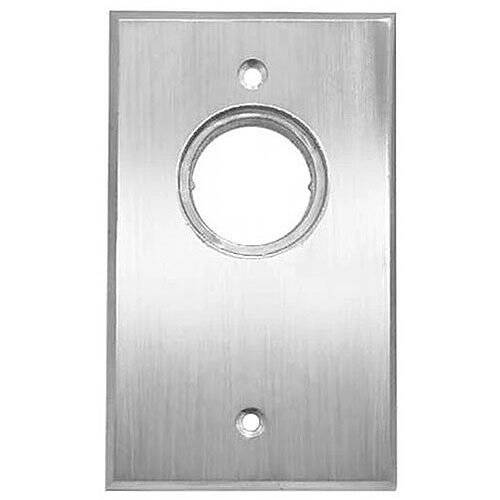

The CM-1000 Series surface mount switches from Camden Door Controls satisfy the exacting requirements of key switch controls. They are intended to be used with common mortise cylinders that measure 1"", 1 1/8"", or 1 1/4"". Featuring distinctive Camden Door Controls features, the one-piece die cast structure is made of 1/4"" thick aluminium. Switch configurations might be one (1) or two (2) switches for all controls.
A weather-resistant aluminium utility box with a 1/2"" threaded entrance and close-up plugs is included with the CM-1000 Key Switch. Rubber gasket, brass cylinder lock ring, four socketed screws, two tamperproof screws with driver, and four socketed screws are also included. (Camden Door Controls sells the mortise cylinder separately). Its structure and design make it perfect for every weather condition. The entire assembly is resistant against vandalism and tampering.
Camden CM-1120 Key Switch, SPDT N.O. and N.C. Momentary Features:
- SINGLE GANG AND NARROW STYLE MODELS
- ACCEPTS STANDARD MORTISE CYLINDERS, 1” – 1 1/4”
- HEAVY DUTY 1/4” THICK ALUMINUM PLATE
- 1 PIECE DIE CAST CONSTRUCTION
- LOCATORS PREVENT CYLINDER FROM SPINNING
- NO SET SCREWS REQUIRED
- VANDAL RESISTANT
- CYLINDER SITS FLUSH TO FACEPLATE
- TAMPER PROOF SCREWS & DRIVER PROVIDED
- INDOOR OR OUTDOOR APPLICATIONS
- UL/CSA APPROVED SWITCHES
- 1 OR 2 SWITCHES MAY BE INSTALLED
- LEFT AND/OR RIGHT OPERATION
- WIDE RANGE OF SWITCH CONFIGURATIONS
- COLOR CODED 18 AWG SOLDERED LEADS
- HEAT SHRINK PROTECTIVE SLEEVE OVER CONTACTS
- CASTED CENTRE RIB PROTECTS SWITCHES FROM DAMAGE
- BRUSHED ALUMINUM FINISH
- CUSTOM COLOR FINISHES & ENGRAVING AVAILABLE
- OPTIONAL LED INDICATORS
- FAST & EASY TO INSTALL
Camden CM-1120 Key Switch, SPDT N.O. and N.C. Momentary Specifications:
- Height: 4.4
- Product Color: Silver
- Width: 2.8
- Height (mm): 111
- Product Material: Aluminum
- Width (mm): 70
Spécifications techniques
The CM-1000 Series surface mount switches from Camden Door Controls satisfy the exacting requirements of key switch controls. They are intended to be used with common mortise cylinders that measure 1"", 1 1/8"", or 1 1/4"". Featuring distinctive Camden Door Controls features, the one-piece die cast structure is made of 1/4"" thick aluminium. Switch configurations might be one (1) or two (2) switches for all controls.
A weather-resistant aluminium utility box with a 1/2"" threaded entrance and close-up plugs is included with the CM-1000 Key Switch. Rubber gasket, brass cylinder lock ring, four socketed screws, two tamperproof screws with driver, and four socketed screws are also included. (Camden Door Controls sells the mortise cylinder separately). Its structure and design make it perfect for every weather condition. The entire assembly is resistant against vandalism and tampering.
Camden CM-1120 Key Switch, SPDT N.O. and N.C. Momentary Features:
- SINGLE GANG AND NARROW STYLE MODELS
- ACCEPTS STANDARD MORTISE CYLINDERS, 1” – 1 1/4”
- HEAVY DUTY 1/4” THICK ALUMINUM PLATE
- 1 PIECE DIE CAST CONSTRUCTION
- LOCATORS PREVENT CYLINDER FROM SPINNING
- NO SET SCREWS REQUIRED
- VANDAL RESISTANT
- CYLINDER SITS FLUSH TO FACEPLATE
- TAMPER PROOF SCREWS & DRIVER PROVIDED
- INDOOR OR OUTDOOR APPLICATIONS
- UL/CSA APPROVED SWITCHES
- 1 OR 2 SWITCHES MAY BE INSTALLED
- LEFT AND/OR RIGHT OPERATION
- WIDE RANGE OF SWITCH CONFIGURATIONS
- COLOR CODED 18 AWG SOLDERED LEADS
- HEAT SHRINK PROTECTIVE SLEEVE OVER CONTACTS
- CASTED CENTRE RIB PROTECTS SWITCHES FROM DAMAGE
- BRUSHED ALUMINUM FINISH
- CUSTOM COLOR FINISHES & ENGRAVING AVAILABLE
- OPTIONAL LED INDICATORS
- FAST & EASY TO INSTALL
Camden CM-1120 Key Switch, SPDT N.O. and N.C. Momentary Specifications:
- Height: 4.4
- Product Color: Silver
- Width: 2.8
- Height (mm): 111
- Product Material: Aluminum
- Width (mm): 70
