À propos du produit

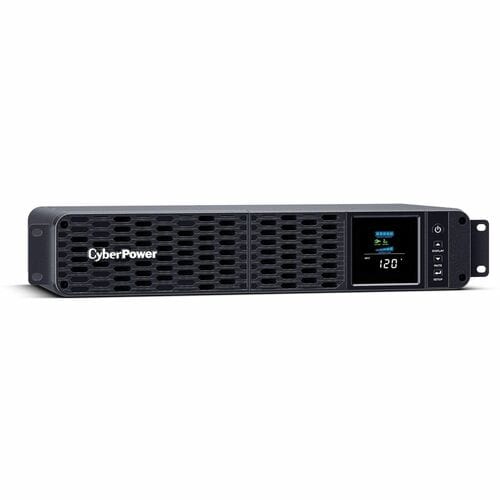

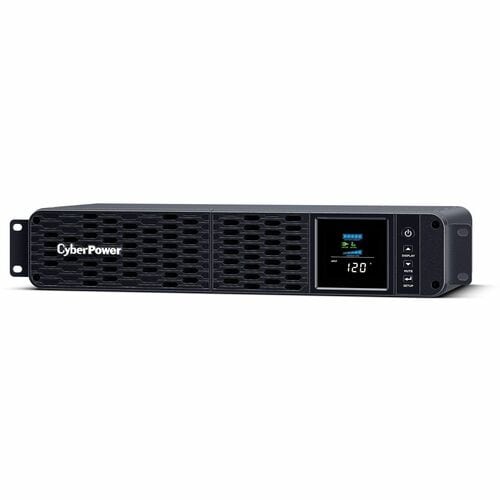

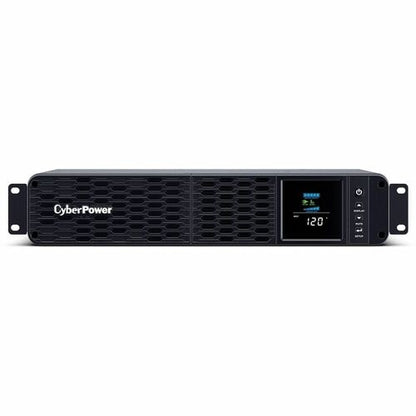

The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

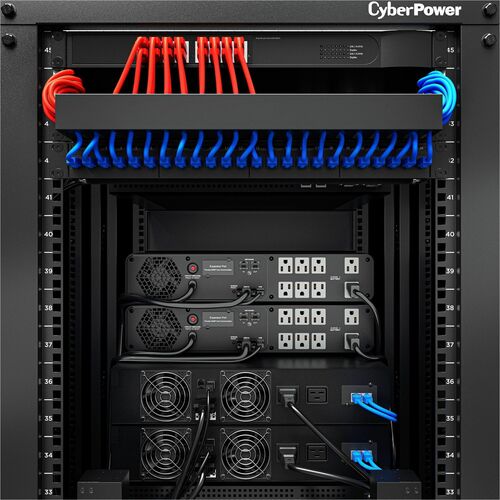

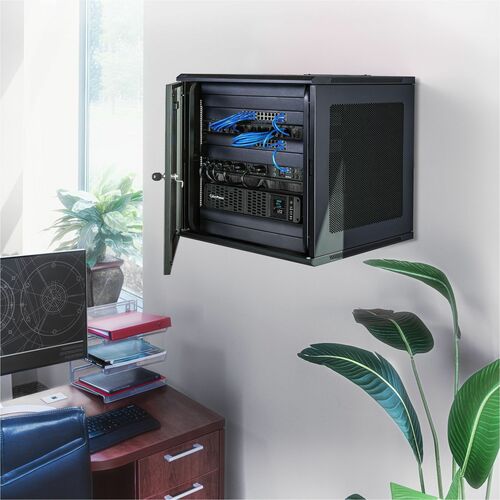

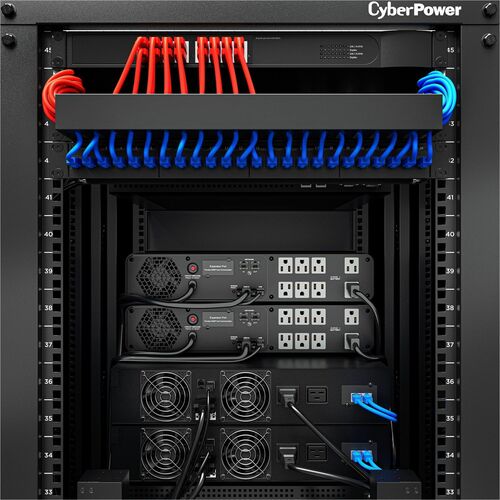

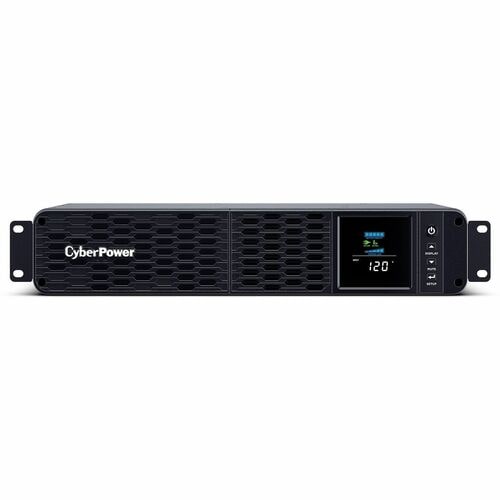

The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.
The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee
- Works adequately in situations where the supply is prone to sags and surges
- 1.50 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1 kW load capacity
- Up to 3.10 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Multifunction LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 52 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| SNMP/Webcard | |
| Alarm | Overload |
| Low Battery | |
| Fault | |
| Battery Mode | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | CP1500PFCRM2U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CP1500PFCRM2U |
| Product Name | CP1500PFCRM2U PFC Sinewave UPS Systems |
| Product Line | PFC Sinewave |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 26.81 lb (12160 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |

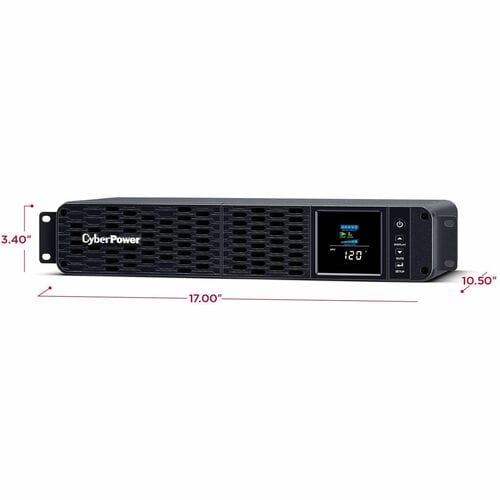

| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 10.51" (267 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 120 V AC |
| Surge Energy Rating | 1500 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 88 VAC - 144 VAC |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1 kW |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 10.20 Minute |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Application/Usage | Security System |
| POS | |
| Network Device | |
| Audio System | |
| Storage Device | |
| Surveillance System | |
| Dataline Protection | Coax |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |

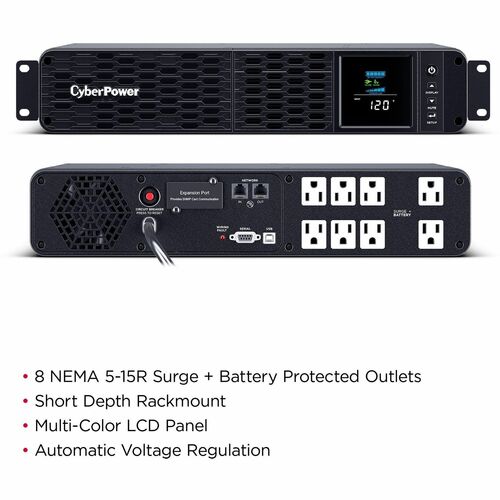

| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 4 ms |

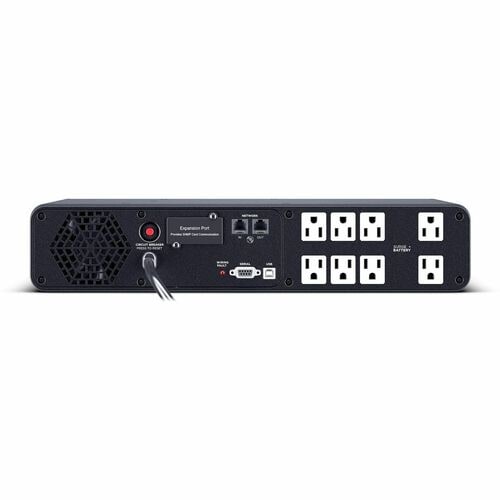

| Receptacle Detail | 8 x NEMA 5-15R |
