À propos du produit
The CyberPower CyberShield indoor battery backup series provides cable telephone, wireless local loop (WLL) and fiber to the premise (FTTP) providers with a dependable and cost effective local power supply for customer premise equipment (CPE) during power outages. The CyberShield indoor family provides Multiple Service Operators with a local powering solution that has lower installation costs, lower operational costs and higher quality than competing power technologies.
CyberShield indoor battery backup products supply continuous 12Vdc or 48Vdc (depending on model) to local power network interface devices (NIDs), cable telephone modems, wireless base stations and fiber to the home Optical Network Terminals (ONTs) or integrated access devices.
- Provides backup power to devices that require DC input while the incoming power is lost
- Prevent critical data loss by staying powered during a blackout with up to 27 W load capacity
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Miscellaneous | |
| Certifications & Standards |
|
| Management | |
| Alarm | Low Battery |
| Utility Power Failure | |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 6.68 lb (3030 g) |
| Form Factor | External |
| Length | 6.57" (167 mm) |
| Width | 7.48" (190 mm) |
| Depth | 3.27" (83 mm) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 12000 mAh |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed |
| Replaceable Battery | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Voltage | 12 V DC |
| Input Voltage Range | 90 V AC - 264 V AC |
| Input Frequency | 47 Hz |
| 70 Hz | |
| Load Capacity (Watt) | 27 W |
| General Information | |
| Product Type | DC UPS |
| Manufacturer Part Number | CSN27U12V12 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CSN27U12V-12 |

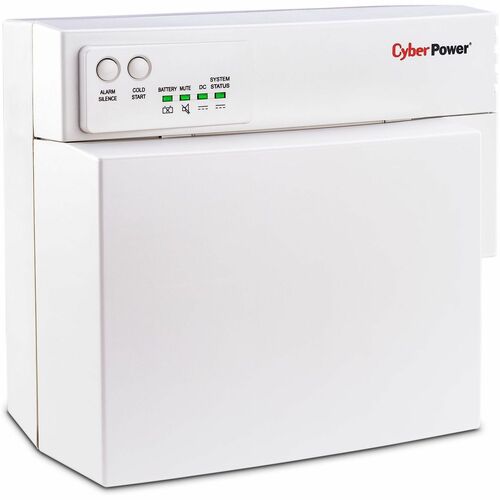

| Product Name | CyberShield FTTx CSN27U12V-12 27W External UPS |
| Product Line | CyberShield |
| Product Series | FTTx |
| Brand Name | CyberPower |
| Technical Information | |
| Application/Usage | Wireless Local Loop |
| Cable Telephone | |
| Equipment | |
| Integrated Access Device | |
| Modem | |
| Network | |
| Optical Network Terminal (ONT) | |
| Wireless Base Station | |
| Features | Cold Start Function |
| Audible Alarm | |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C7 |
| Receptacle Type | NEMA 1-15R |
