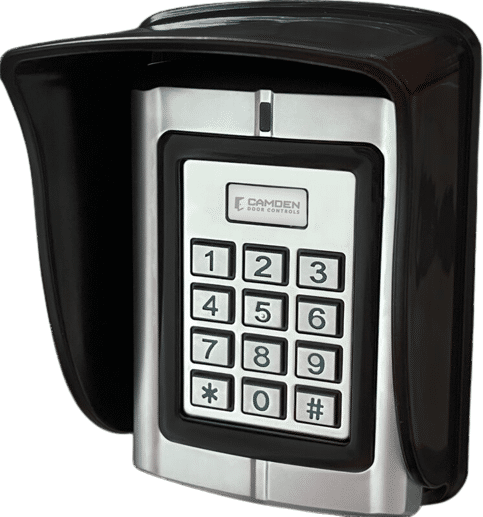

Camden Stand-alone Prox Reader & Keypad, 1 relay, 2,000 users Overview
The Camden CV-550SPK stand-alone, HID format prox reader and keypad, supports up to 2000 users with card, PIN, or card and PIN access. It features a cast metal housing and backlit keypad with fully potted electronics, making CV-550SPK both weather (IP 68 rated) and vandal-resistant. In addition, the CV-550SPK has inputs for REX switch/sensor, and door contacts, as well as a Form 'C' relay, tamper, and Wiegand 26-bit input and output. User cards or tags can easily be individually or batch-enrolled.
Camden Stand-alone Prox Reader & Keypad Features:
- Up to 2,000 users - Card, PIN, Card + PIN
- Batch card/tag enrollment
- Cast metal, heavy-duty construction
- Backlit vandal-resistant keypad
- Weather resistant IP68 rated
- Supports card, PIN, card + PIN (HID 26, 34, and 37 bit, HID and EM format)
- 4-6 digit PIN code length
- (1) Form 'C' relay output
- Tamper alarm output
- Request to exit device input
- Door contact input
- Adjustable door alarm time and door opening time
- Wiegand 26-bit output for integration with access control systems
- Wiegand 26 bit input/outpuit
- 3-year warranty
Camden Stand-alone Prox Reader & Keypad Specifications:
- Voltage: 12 VDC +/- 10%.
- User Codes: 2,000
- IP Rating: 68
- Idle Current: 25mA
- Contact Type: (1) Form 'C'
- Contact Rating: 1 amp@30V DC
- Alarm Output Load: 1 amp@30VDC
- Ring Bell Load: 1 amp@30VDC
- Card Read Distance: 1.75"" (40mm) Max
- Card Frequency: 125KHZ, EM and HID
- Card Format: 26, 34, or 37 Bit Wiegand
- Keypad Format: 4 Bit, 8 Bit, and Virtual Card Number
- Temp Range: -49F to 113F (-45C to 55C)
- Dimensions: 4 13/16"" H x 3 1/8"" W x 1 1/16"" D (121.67mm x 79.50mm x 26.42 mm)
Spécifications techniques
Camden Stand-alone Prox Reader & Keypad, 1 relay, 2,000 users Overview
The Camden CV-550SPK stand-alone, HID format prox reader and keypad, supports up to 2000 users with card, PIN, or card and PIN access. It features a cast metal housing and backlit keypad with fully potted electronics, making CV-550SPK both weather (IP 68 rated) and vandal-resistant. In addition, the CV-550SPK has inputs for REX switch/sensor, and door contacts, as well as a Form 'C' relay, tamper, and Wiegand 26-bit input and output. User cards or tags can easily be individually or batch-enrolled.
Camden Stand-alone Prox Reader & Keypad Features:
- Up to 2,000 users - Card, PIN, Card + PIN
- Batch card/tag enrollment
- Cast metal, heavy-duty construction
- Backlit vandal-resistant keypad
- Weather resistant IP68 rated
- Supports card, PIN, card + PIN (HID 26, 34, and 37 bit, HID and EM format)
- 4-6 digit PIN code length
- (1) Form 'C' relay output
- Tamper alarm output
- Request to exit device input
- Door contact input
- Adjustable door alarm time and door opening time
- Wiegand 26-bit output for integration with access control systems
- Wiegand 26 bit input/outpuit
- 3-year warranty
Camden Stand-alone Prox Reader & Keypad Specifications:
- Voltage: 12 VDC +/- 10%.
- User Codes: 2,000
- IP Rating: 68
- Idle Current: 25mA
- Contact Type: (1) Form 'C'
- Contact Rating: 1 amp@30V DC
- Alarm Output Load: 1 amp@30VDC
- Ring Bell Load: 1 amp@30VDC
- Card Read Distance: 1.75"" (40mm) Max
- Card Frequency: 125KHZ, EM and HID
- Card Format: 26, 34, or 37 Bit Wiegand
- Keypad Format: 4 Bit, 8 Bit, and Virtual Card Number
- Temp Range: -49F to 113F (-45C to 55C)
- Dimensions: 4 13/16"" H x 3 1/8"" W x 1 1/16"" D (121.67mm x 79.50mm x 26.42 mm)
