À propos du produit

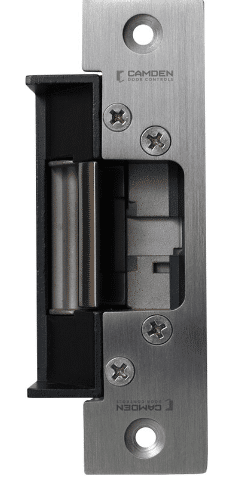

Camden CX-ED1410 Grade 1 ANSI fire-rated strike for cylindrical locksets offers the very best strike quality and performance, with a stainless steel faceplate provided. The 'ANSI' fire strike design delivers unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation.
Note: Fire rating is applicable only while in fail secure mode.
Camden CX-ED1410 Universal Grade 1 ANSI Fire-Rated Electric Strike Specifications:
Centerline latch entry for cylindrical locksets, with ANSI square faceplate
UL/ULC 90-minute fire rated, UL 1034 Burglary listed
- 5/8"" to 3/4"" latch projection (throw)
- Selectable 12/24V AC/DC
- Selectable fail safe/fail secure. Fire rating voided in fail-safe mode
- Continuous duty operation
- Non-handed
- 5-year warranty
Camden CX-ED1410 Universal Grade 1 ANSI Fire-Rated Electric Strike Specifications:
Voltage: 12 or 24V AC/DC
Current Draw:
- 260 mA @ 12 VDC
- 150 mA @ 24 VDC
- Static Strength: 1,500 Lbs.
- Dynamic Strength: 70 Ft-Lbs.
- Endurance: 1,000,000 cycles (factory tested), 250,00 cycles (UL verified)
- Mode: Selectable fail safe/fail secure
- Operation: AC - Buzz
- DC- Silent
- Duty: Continuous
- Dimensions: 3-3/8""H x 1-7/8""W x 1-3/8""D (86mm x 47mm x 35mm)
Spécifications techniques
Camden CX-ED1410 Grade 1 ANSI fire-rated strike for cylindrical locksets offers the very best strike quality and performance, with a stainless steel faceplate provided. The 'ANSI' fire strike design delivers unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation.
Note: Fire rating is applicable only while in fail secure mode.
Camden CX-ED1410 Universal Grade 1 ANSI Fire-Rated Electric Strike Specifications:
Centerline latch entry for cylindrical locksets, with ANSI square faceplate
UL/ULC 90-minute fire rated, UL 1034 Burglary listed
- 5/8"" to 3/4"" latch projection (throw)
- Selectable 12/24V AC/DC
- Selectable fail safe/fail secure. Fire rating voided in fail-safe mode
- Continuous duty operation
- Non-handed
- 5-year warranty
Camden CX-ED1410 Universal Grade 1 ANSI Fire-Rated Electric Strike Specifications:
Voltage: 12 or 24V AC/DC
Current Draw:
- 260 mA @ 12 VDC
- 150 mA @ 24 VDC
- Static Strength: 1,500 Lbs.
- Dynamic Strength: 70 Ft-Lbs.
- Endurance: 1,000,000 cycles (factory tested), 250,00 cycles (UL verified)
- Mode: Selectable fail safe/fail secure
- Operation: AC - Buzz
- DC- Silent
- Duty: Continuous
- Dimensions: 3-3/8""H x 1-7/8""W x 1-3/8""D (86mm x 47mm x 35mm)
