À propos du produit

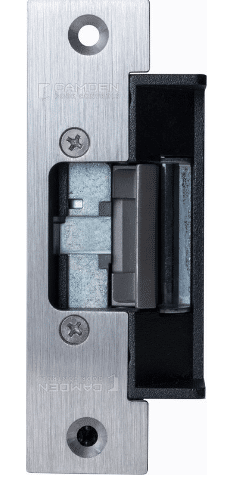

Camden's new CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value for installations that require 8-16V AC/DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe/fail secure operation and horizontal adjustment of the strike body.
Camden CX-ED2071 Universal Low Profile Grade 2 Electric Strike Features:
Centerline latch entry for cylindrical locksets, 1/2"" to 5/8"" latch projection
CX-ED2079: Selectable 12/24V AC/DC
CX-ED2071: 8-16V AC/DC
Selectable fail safe/fail secure operation
Horizontal adjustability of strike body
3 stainless steel faceplates included: ANSI square, ANSI hollow metal and wood door frame
Low profile strike body
5-year warranty
Camden CX-ED2071 Universal Low Profile Grade 2 Electric Strike Specifications:
Voltage: CX-ED2071: 8-16V AC/DC
Current Draw: CX-ED2071: 305 mA @ 8 VDC, 625 mA @ 16 VDC 190 mA @ 8 VAC, 460 mA @ 16 VAC
Static Strength: 1000 Lbs.
Dynamic Strength: 50 Ft. Lbs.
Endurance: CX-ED2071: 700,000 cycles
Mode: Selectable fail-safe
Operation: AC - Buzz DC- Silent
Duty: CX-ED2071: Intermittent Mounting: Non-handed
Dimensions: 3-3/8""H x 1-7/8""W x 1-7/32""D (86mm x 47mm x 31mm)
Spécifications techniques
Camden's new CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value for installations that require 8-16V AC/DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe/fail secure operation and horizontal adjustment of the strike body.
Camden CX-ED2071 Universal Low Profile Grade 2 Electric Strike Features:
Centerline latch entry for cylindrical locksets, 1/2"" to 5/8"" latch projection
CX-ED2079: Selectable 12/24V AC/DC
CX-ED2071: 8-16V AC/DC
Selectable fail safe/fail secure operation
Horizontal adjustability of strike body
3 stainless steel faceplates included: ANSI square, ANSI hollow metal and wood door frame
Low profile strike body
5-year warranty
Camden CX-ED2071 Universal Low Profile Grade 2 Electric Strike Specifications:
Voltage: CX-ED2071: 8-16V AC/DC
Current Draw: CX-ED2071: 305 mA @ 8 VDC, 625 mA @ 16 VDC 190 mA @ 8 VAC, 460 mA @ 16 VAC
Static Strength: 1000 Lbs.
Dynamic Strength: 50 Ft. Lbs.
Endurance: CX-ED2071: 700,000 cycles
Mode: Selectable fail-safe
Operation: AC - Buzz DC- Silent
Duty: CX-ED2071: Intermittent Mounting: Non-handed
Dimensions: 3-3/8""H x 1-7/8""W x 1-7/32""D (86mm x 47mm x 31mm)
