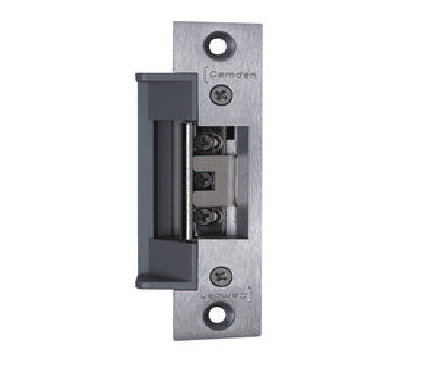

Camden Series 20 Pre Load electric strikes offer the highest preload rating,12/24V AC/DC operation, adjustable keeper, fail safe/fail secure operation, and latch monitoring. The latch cavity accommodates cylindrical locksets with 1/2” to 5/8” projection (1/8” door gap required) with a range of faceplates for installation in steel, aluminum, and wood doors. EZ FIT™ CX-EPD-2040L installs in a standard ANSI strike plate opening without the need to cut or drill the door frame. CX-EPD2030L also features horizontal and vertical faceplate adjustment. CX-EPD-2040L Wood Door, 7-15/16"" x 1-7/16
Camden Door Controls CX-EPD-2040L Pre-Load Electric Strike Wood Door Features:
For cylindrical locksets
1/2"" to 5/8"" latch projection (Throw)
- Preload feature eliminates binding due to pressure against the door latch
- Standard body model with a selection of 4 faceplates
- Adjustable keeper, standard on all models
- Latch monitoring is standard on all models
- Dual voltage
- Selectable fail safe/fail secure
- 5-year warranty
Camden Door Controls CX-EPD-2040L Pre-Load Electric Strike Wood Door Specifications:
Voltage: 12/24V AC/DC
Current Draw:
- 130 mA @ 12 VDC
- 200 mA @ 12 VAC
- 70 mA @ 24V AC/DC
- Static Strength: 1,500 Lbs.
- Pre-Load (Fail Secure Only): 20 Lbs.
- Endurance: 500,000 Cycles
- Duty: Continuous
- Operation: Initial Buzz then Silent
- Latch Monitor: Standard
- Keeper: Adjustable
- Dimensions: 1-3/4""H x 4-1/8""W x 1-1/2""D (44mm x 105mm x 38mm)
Spécifications techniques
Camden Series 20 Pre Load electric strikes offer the highest preload rating,12/24V AC/DC operation, adjustable keeper, fail safe/fail secure operation, and latch monitoring. The latch cavity accommodates cylindrical locksets with 1/2” to 5/8” projection (1/8” door gap required) with a range of faceplates for installation in steel, aluminum, and wood doors. EZ FIT™ CX-EPD-2040L installs in a standard ANSI strike plate opening without the need to cut or drill the door frame. CX-EPD2030L also features horizontal and vertical faceplate adjustment. CX-EPD-2040L Wood Door, 7-15/16"" x 1-7/16
Camden Door Controls CX-EPD-2040L Pre-Load Electric Strike Wood Door Features:
For cylindrical locksets
1/2"" to 5/8"" latch projection (Throw)
- Preload feature eliminates binding due to pressure against the door latch
- Standard body model with a selection of 4 faceplates
- Adjustable keeper, standard on all models
- Latch monitoring is standard on all models
- Dual voltage
- Selectable fail safe/fail secure
- 5-year warranty
Camden Door Controls CX-EPD-2040L Pre-Load Electric Strike Wood Door Specifications:
Voltage: 12/24V AC/DC
Current Draw:
- 130 mA @ 12 VDC
- 200 mA @ 12 VAC
- 70 mA @ 24V AC/DC
- Static Strength: 1,500 Lbs.
- Pre-Load (Fail Secure Only): 20 Lbs.
- Endurance: 500,000 Cycles
- Duty: Continuous
- Operation: Initial Buzz then Silent
- Latch Monitor: Standard
- Keeper: Adjustable
- Dimensions: 1-3/4""H x 4-1/8""W x 1-1/2""D (44mm x 105mm x 38mm)
