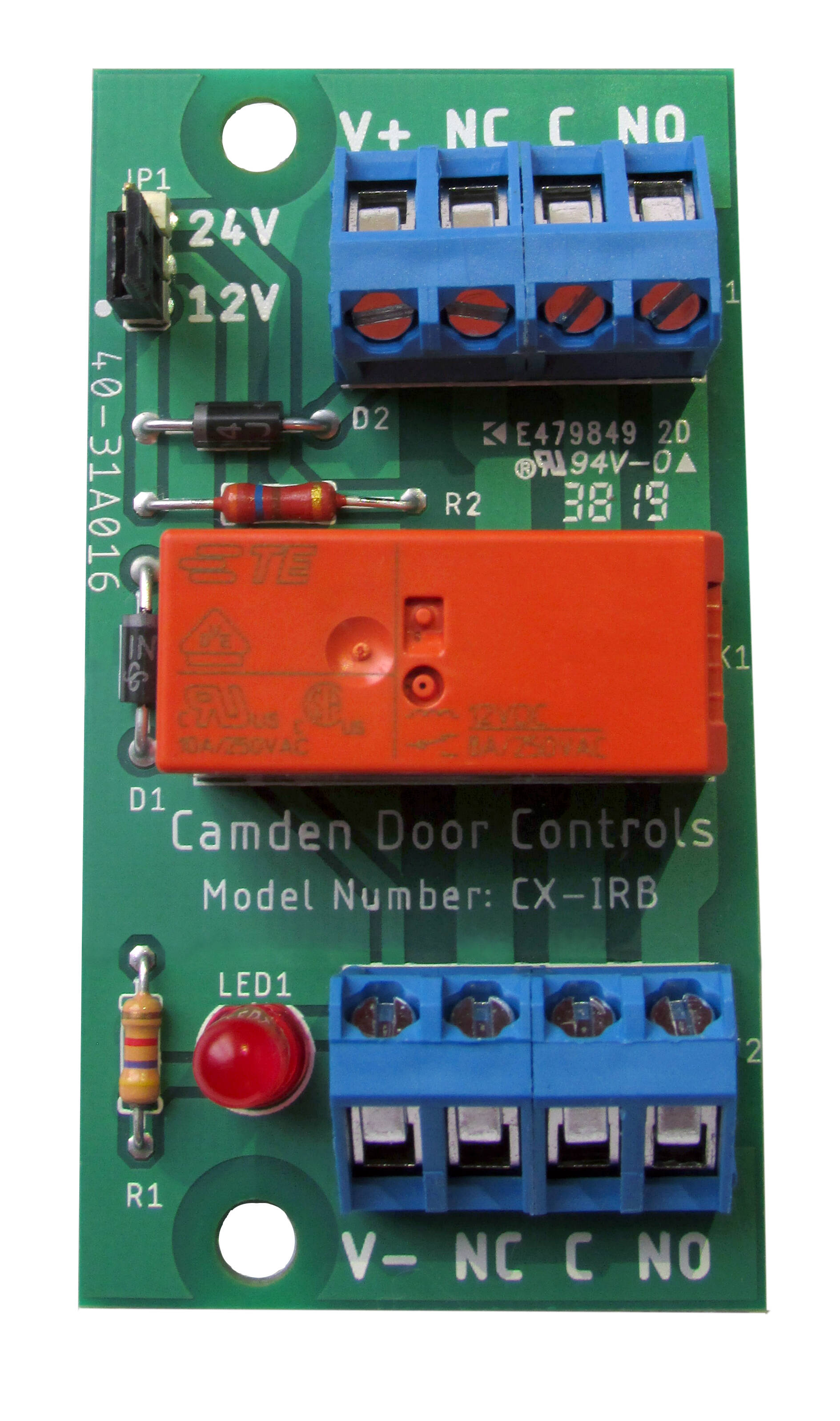

Camden's CX-IRB Isolation Relay Module provides a compact and economical solution for the isolation of devices from electrical noise and induced voltages. CX-IRB Isolation Relay Module is ideal for use in any low-voltage system, including access control, telephone entry, and automatic doors. This ultra-compact relay can be easily mounted anywhere (Velcro tape provided) and is backed by a full 3-year 'Camden Tough warranty.
Camden's CX-IRB Isolation Relay Module Features:
Ultra Compact Design fits anywhere, including Automatic Door Operator or Power Supply Cabinets
Selectable 12/24V DC
Low Power Consumption
DPDT Relay Contacts rated 8 Amps
LED Provides Relay Activation Status
Self-adhesive Velcro™ tape is provided for easy mounting
3 Year Warranty
Camden's CX-IRB Isolation Relay Module Specifications:
Voltage: 12/24V DC
Current Draw: 40mA @ 12V/24 VDC
Contact Rating: 8 amps @ 30 VDC/120 VAC
Contact Type: DPDT
Status: Red LED (Activated when on)
Temperature: -40°F to 158°F (-40°C to 70°C)
Dimensions: 3/4"" H x 1 1/2"" W x 2 3/4"" L (20mm x 38mm x 70mm)
Spécifications techniques
Camden's CX-IRB Isolation Relay Module provides a compact and economical solution for the isolation of devices from electrical noise and induced voltages. CX-IRB Isolation Relay Module is ideal for use in any low-voltage system, including access control, telephone entry, and automatic doors. This ultra-compact relay can be easily mounted anywhere (Velcro tape provided) and is backed by a full 3-year 'Camden Tough warranty.
Camden's CX-IRB Isolation Relay Module Features:
Ultra Compact Design fits anywhere, including Automatic Door Operator or Power Supply Cabinets
Selectable 12/24V DC
Low Power Consumption
DPDT Relay Contacts rated 8 Amps
LED Provides Relay Activation Status
Self-adhesive Velcro™ tape is provided for easy mounting
3 Year Warranty
Camden's CX-IRB Isolation Relay Module Specifications:
Voltage: 12/24V DC
Current Draw: 40mA @ 12V/24 VDC
Contact Rating: 8 amps @ 30 VDC/120 VAC
Contact Type: DPDT
Status: Red LED (Activated when on)
Temperature: -40°F to 158°F (-40°C to 70°C)
Dimensions: 3/4"" H x 1 1/2"" W x 2 3/4"" L (20mm x 38mm x 70mm)
