À propos du produit
The Advantech IDS-3112 Open Frame Monitor Series offer ultra slim design supporting a 12.1" 1024 x 768 and 800 x 600 pixels TFT LCD screen, with -20 ~ 60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
- 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- View your content easily in well-lit areas with 600 cd/m² brightness
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- Explore a world loaded with potentially vivid entertainment outcomes with the Advantech Open-frame LCD Touchscreen Monitor
Spécifications techniques
| Power Description | |
| Operating Power Consumption | 36 W |
| Touchscreen Information | |
| Touchscreen Type | 5-wire Resistive |

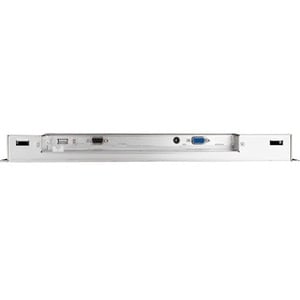

| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Miscellaneous | |

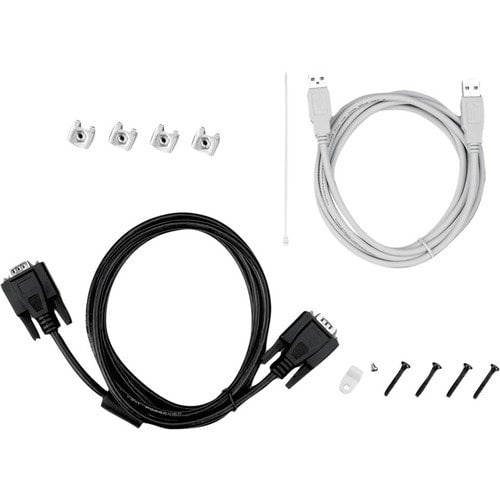

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 600 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1024 x 768 |
| Native Contrast Ratio | 700:1 |
| Physical Characteristics | |
| Weight (Approximate) | 3.48 lb (1580 g) |
| Height | 9.92" (252 mm) |
| Width | 12.60" (320 mm) |
| Depth | 1.21" (30.70 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Technical Information | |
| Aspect Ratio | 4:3 |
| Response Time | 16 ms |

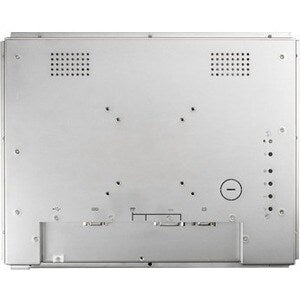

| Mount Type | Rear Mount |
| Viewable Screen Size | 12.1" |
| Screen Mode | XGA |
| Backlight Technology | LED |
| Screen Size Class | 12" |
| General Information | |

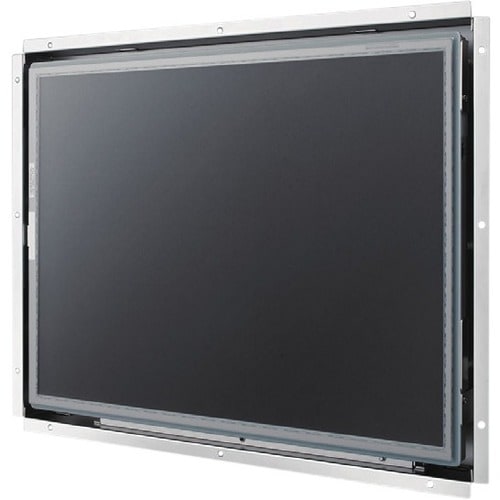

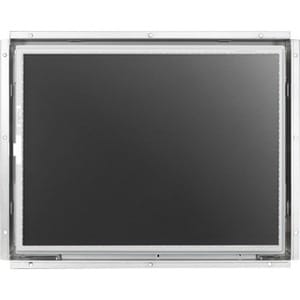

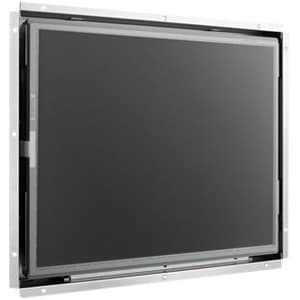

| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3112N-60XGA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3112N-60XGA1E |
| Product Name | IDS-3112N-60XGA1E Open Frame LCD Touchscreen Monitor |
| Product Series | IDS-3112 |
| Brand Name | Advantech |
