À propos du produit

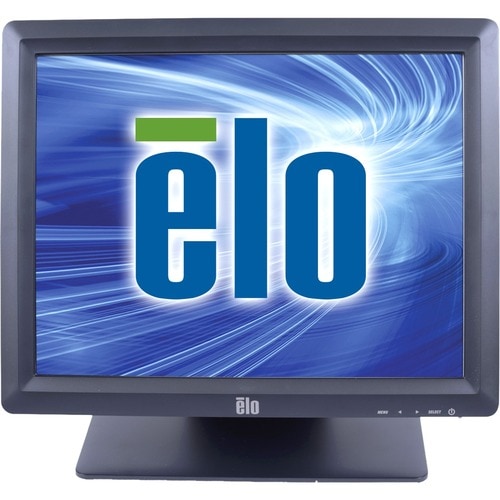

The 1517L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1517L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.
- The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Enjoy crisp content and energetic hues with the 250 cd/m² brightness
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | IntelliTouch Surface Wave |
| Touchscreen | Yes |
| Power Description | |
| Input Voltage | 220 V AC |
| 110 V AC | |
| Operating Power Consumption | 10 W |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Serial Port | Yes |
| USB Standard | USB 1.1 |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Video | |
| Contrast Ratio | 700:1 |
| Brightness | 250 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1024 x 768 |
| Standard Refresh Rate | 75 Hz |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | E344758 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1517L |
| Product Name | 1517L Rev A Multifunction 15-inch Desktop Touchmonitor |
| Brand Name | Elo |
| Physical Characteristics | |
| Weight (Approximate) | 15.60 lb (7076.04 g) |
| Height | 19" (482.60 mm) |
| Width | 9.09" (230.89 mm) |
| Weight with Stand (Approximate) | 9 lb (4082.33 g) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Height with Stand | 12.50" (317.50 mm) |
| Width with Stand | 14.10" (358.14 mm) |
| Depth with Stand | 6.80" (172.72 mm) |
| Product Color | Black |
| Technical Information | |
| Aspect Ratio | 4:3 |
| Response Time | 25 ms |
| Features | Security Lock |
| Mount Type | Desk Mountable |
| Screen Surface | Anti-glare |
| Viewable Screen Size | 15" |
| Screen Mode | XGA-2 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Backlight Technology | LED |
| Adjustable Display Angle | Yes |
| Screen Size Class | 15" |
