À propos du produit
Get more: Extra features, quality construction, exceptional value

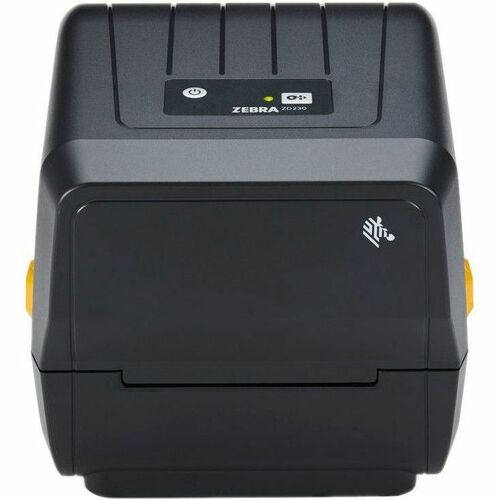

Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components and fewer features. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle. Zebra does it differently. Meet the exception. The ZD230 desktop printer gives you extra features and reliable operation at an affordable price-both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment.
Get Printing Quickly
The ZD230 is simple to install and begin printing-right out of the box. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. USB, Ethernet, Wi-Fi and Bluetooth® connectivity options enable universal interoperability. The ZD230 can accommodate a 300 M ribbon roll to lengthen the time between media changes. And, Zebra's OpenACCESS™ clamshell design expedites media replacement. It's also ENERGY STAR® qualified to reduce your operational expenses.
Just the Features You Need
This 4-inch printer produces labels quickly, up to 6" per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status.Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler or cutter. The ZD230 features a core set of Print DNA software applications, powered by Link-OS Basic, to deliver a cost-effective and dependable print experience. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags,passes, labels and receipts.
Backed by Zebra's Worldwide Service and Support
Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more-all for a tiny fraction of the cost of a single repair.
Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That's why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer-and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies
- Thermal Transfer or Direct Thermal print method
- ZPL and EPL programming languages
- Single LED status indicator
- Single button for feed/pause
- USB connectivity
- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR qualified
- ZebraDesigner Essentials - easy label design tool free at
- Two-year standard warranty
Spécifications techniques
| Cutter | |
| Cutter | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Memory | |
| Standard Memory | 128 MB |
| Software | |
| Operating System Supported |
|
| Network & Communication | |
| Ethernet | Yes |
| Network Ready | Yes |
| Miscellaneous | |
| Platform Supported | PC |
| Certifications & Standards |
|
| Energy Star | Yes |
| Power Description | |
| Power Source | AC Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Physical Characteristics | |
| Weight (Approximate) | 1.10 kg |
| Height | 7.52" (191 mm) |
| Width | 7.76" (197 mm) |
| Depth | 10.51" (267 mm) |
| Fonts & Emulation | |
| Language Emulation | EPL2 |
| EZPL | |
| XML | |
| ZPL | |
| ZPL II | |
| EPL | |
| General Information | |
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | ZD23042301H00EZ |
| Manufacturer Website Address | http://www.zebra.com |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD230 |
| Product Name | ZD230 4-inch Value Desktop Printer |
| Product Series | ZD200 |
| Brand Name | Zebra |
| Media Types & Handling | |
| Maximum Roll Diameter | 5" |
| Media Type | Wristband |
| Tag Stock | |
| Roll Fed | |
| Receipt | |
| Label | |
| Fanfold | |
| Gap | |
| Die-cut Label | |
| Continuous Receipt | |
| Continuous Label | |
| Black Bar | |
| Media Sensor | Moveable Sensor |
| Black Mark Sensor | |
| Gap Sensor | |
| Maximum Label Width | 4.41" (112 mm) |
| Maximum Label Length | 39.02" (991 mm) |
| Technical Information | |
| Application/Usage | Desktop |
| Healthcare | |
| Manufacturing | |
| Retail | |
| Transportation & Logistic | |
| Barcode Symbology Supported | Code 128 |
| Code 39 | |
| UPC-E | |
| Code 49 | |
| Code 93 | |
| Data Matrix | |
| EAN With 2 and 5 Digit Extension | |
| EAN-13 | |
| EAN-8 | |
| Industrial 2 of 5 | |
| Code 11 | |
| Codablock | |
| Codabar | |
| Aztec Code | |
| UPC-A | |
| UPC | |
| Standard 2 of 5 | |
| QR Code | |
| POSTNET | |
| Plessey | |
| Planet Code | |
| PDF417 | |
| MSI | |
| Micro PDF | |
| Maxi Code | |
| LOGMARS | |
| Interleaved 2 of 5 | |
| ISBT-128 | |
| Maximum Print Width | 4.09" |
| Recommended Use | Label/Receipt Print |
| Connectivity Technology | Wired |
| Features | Dual Wall Frame |
| Status Indicator | |
| Print Technology | Thermal Transfer |
| Peel Facility | Yes |
| Print Color Capability | Monochrome |
| Real Time Clock | No |
| Maximum Print Resolution (dpi) | 203 |
