À propos du produit

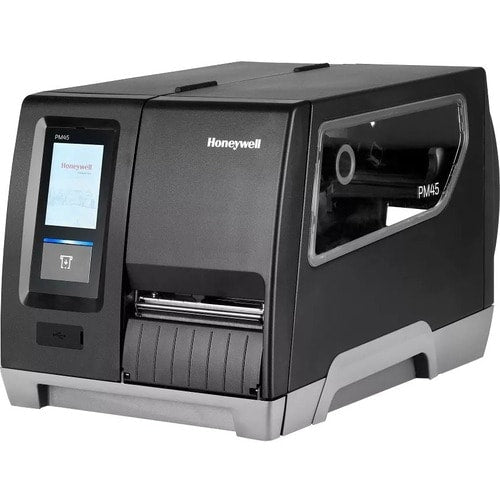

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media - including ink-in and ink-out ribbons with a 1-inch core size - enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell's firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.
- Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
- Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
- A better-quality solution to print permanent-use documents
- Print your documents from the comfort of your couch with Wireless LAN connectivity enabled
- Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
Spécifications techniques
| Display & Graphics | |
| Display Screen | Yes |
| Memory | |
| Standard Memory | 256 MB |
| Power Description | |
| Power Source | AC Supply |
| Miscellaneous | |
| Platform Supported | PC |
| Energy Star | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 29.10 lb (13200 g) |
| Height | 11.61" (295 mm) |
| Width | 11.18" (284 mm) |
| Depth | 19.02" (483 mm) |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/ac/b/g/n |
| Ethernet Technology | Gigabit Ethernet |
| Network Ready | Yes |
| Fonts & Emulation | |
| Language Emulation | Direct Protocol (DP) |
| DPL | |
| Fingerprint | |
| ZSim2 | |
| XML | |
| ZPL II | |
| IPL | |
| General Information | |
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | PM45A10000000400 |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Product Model | PM45A |
| Product Name | PM45A Thermal Transfer Printer |
| Product Series | PM45 |
| Brand Name | Honeywell |
| Media Types & Handling | |
| Maximum Roll Diameter | 8.4" (213 mm) |
| Media Type | Black Mark |
| Continuous Label | |
| Gap | |
| Label | |
| Notch | |
| Media Sensor | Label Taken Sensor |
| Maximum Label Width | 4.49" (114 mm) |
| Technical Information | |
| Application/Usage | Industrial |
| Barcode Symbology Supported | UCC/EAN 128 Serial Shipping Container |
| UPC/EAN Shipping Container | |
| 1D | |
| 2D | |
| GM1724 | |
| HIBCC | |
| ISBT-128 | |
| POSTNET | |
| Maximum Print Width | 4.09" (103.89 mm) |
| Recommended Use | Label Print |
| Features | Rugged |
| Print Technology | Thermal Transfer |
| Print Color Capability | Monochrome |
| Maximum Print Length | 47.20" (1198.88 mm) |
| Maximum Print Resolution (dpi) | 406 |
