À propos du produit

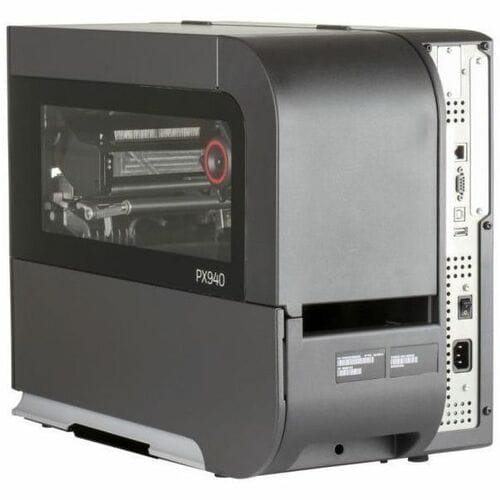

The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.
Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.
The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE, used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer.
With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
- Integrated label verification technology checks and ensures that barcodes are accurate every time; instantly notifies you of pass/fail status and ANSI grade.
- Extremely precise printing of up to +/-0.2 mm (0.0079 in) virtually eliminates poor-quality, unreadable labels and barcodes.
- Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
- Smart printing capability allows users to configure and print without the need for a host computer.
- Easy to use and maintain, with a color multilingual touchscreen interface and quick side-loading design.
Spécifications techniques
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Memory | |
| Flash Memory | 256 MB |
| Standard Memory | 1 GB |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
| Power Description | |
| Power Source | AC Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Physical Characteristics | |
| Weight (Approximate) | 51.81 lb (23500 g) |
| Height | 15.70" (398.70 mm) |
| Width | 10.28" (261 mm) |
| Depth | 19.92" (506 mm) |
| Miscellaneous | |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Power Cable Localization | US |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Bluetooth | Yes |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| RFID | Yes |
| Near Field Communication (NFC) | Yes |
| General Information | |
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | PX940V30100000202 |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Product Model | PX940 |
| Product Name | PX940 Industrial Printer |
| Brand Name | Honeywell |
| Fonts & Emulation | |
| Language Emulation | DPL |
| Fingerprint | |
| Intermec Printer Language (IPL) | |
| ZSim2 | |
| WMSDirect Protocol (DP) | |
| XML-enabled for SAP AII & Oracle WMS | |
| ZPL II | |
| Media Types & Handling | |
| Maximum Roll Diameter | 8.4" (213 mm) |
| Media Type | Black Mark |
| Tag | |
| Notch | |
| Label | |
| Gap | |
| Continuous Label | |
| Maximum Label Width | 4.49" (114 mm) |
| Technical Information | |
| Application/Usage | Healthcare |
| Automotive | |
| Warehouse | |
| Manufacturing | |
| Industrial | |
| Barcode Symbology Supported | Code 39 |
| EAN-128 | |
| EAN-13 | |
| EAN-8 | |
| GS1 DataBar Expanded | |
| GS1-128 | |
| HIBC Code 128 | |
| HIBC Code 39 | |
| Interleaved 2 of 5 | |
| ISBT-128 | |
| ITF-14 | |
| Code 128 | |
| UPC-E | |
| UPC-A | |
| 2D | |
| RSS14E | |
| SCC-14 | |
| 1D | |
| Maximum Print Width | 4.25" (108 mm) |
| Recommended Use | Label Print |
| Features | Verifier |
| LCD Display | |
| Printing Capability | Single Sided |
| Print Color Capability | Color |
| Maximum Print Length | 15.75 ft (4800.60 mm) |
| Maximum Print Resolution (dpi) | 203 |
