À propos du produit
Introduction
The IDS31-215W is a fully configurable, flexible display solution, able to be specified in a variety of screen brightness's, touch technologies and video inputs including displayport.
The product can be specified in a number of compact mechanical constructions meeting all mounting demands, delivering complete flexibility in product design. All products have
been designed to meet the demands of the industrial market and have leading in service performance characteristics guaranteed by 100% product burn-in and the service back up
of the global Advantech corporation.
Typical Applications
- Casino and gaming
- Industrial controls
- Kiosks and point of sale
- Remote signage and public information
- Transportation
- Projective Capacitive touchscreen technology offers two essential advantages, not only can you touch the panel with your bare finger, but you can also actuate it with surgical gloves or slender cotton gloves on
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- Enjoy crisp content and energetic hues with the 250 cd/m² brightness
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
- The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
Spécifications techniques
| Power Description | |
| Operating Power Consumption | 28 W |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 250 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1920 x 1080 |
| Dynamic Contrast Ratio | 5,000:1 |

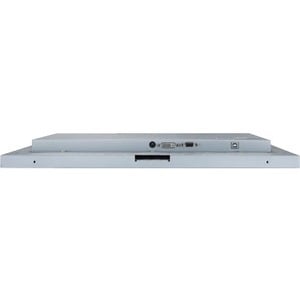

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| General Information | |

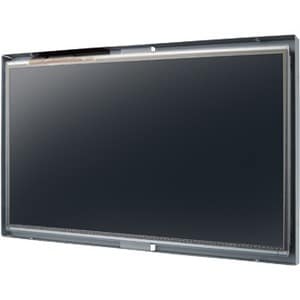

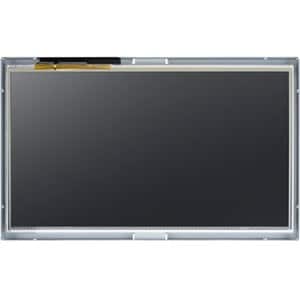

| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS31215WP25DVA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS31-215W |
| Product Name | IDS31-215W Open-frame LCD Touchscreen Monitor |
| Brand Name | Advantech |
| Physical Characteristics | |
| Weight (Approximate) | 15.43 lb (7000 g) |
| Height | 12.60" (320 mm) |
| Width | 20.31" (516 mm) |
| Depth | 1.81" (46 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 200 |
| Rugged | Yes |
| Technical Information | |
| Response Time | 16 ms |
| Features | Power Switch |
| CustomColor Mode | |
| Anti-glare | |
| On-screen Display (OSD) | |
| Mount Type | Bracket-mountable |
| Panel Mount | |
| Viewable Screen Size | 21.5" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Panel Technology | Multi-domain Vertical Alignment (MVA) |
| Screen Size Class | 22" |
| Glass Hardness | 7H |
| Ingress Protection (IP) Rating | IP65 |
| Response Time Details | 16ms Typical |
| Bezel Color | Black |
