À propos du produit

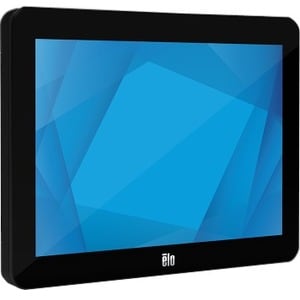

The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Single Cable Connection
The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
One for You.
One for Your Customers.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- Furnishes captivating visuals with about 350 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Spécifications techniques
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| Speaker Output Power | 4 W |
| Power Description | |
| Operating Power Consumption | 7.43 W |
| Standby Power Consumption | 1.26 W |
| Off-Mode Power Consumption | 200 mW |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Video | |
| Brightness | 350 cd/m² |
| Color Supported | 262,000 Colors |
| Maximum Resolution | 1280 x 800 |
| Standard Refresh Rate | 60 Hz |
| Native Contrast Ratio | 800:1 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| VGA | Yes |
| Number of USB Ports | 4 |
| USB Type-C | Yes |
| Total Number of USB Type-C Ports | 1 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Mean Time Between Failures (MTBF) | 5.7 Year |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| China Restriction of Hazardous Substances (China RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 1.95 lb (884.51 g) |
| Height | 6.99" (177.55 mm) |
| Width | 10.03" (254.76 mm) |
| Depth | 1.14" (28.96 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | E155834 |
| Manufacturer Website Address | http://www.elotouch.com |
| Packaged Quantity | 1 |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1002L |
| Product Name | 1002L Touchscreen Monitor |
| Product Series | 02 |
| Brand Name | Elo |
| Technical Information | |
| Aspect Ratio | 16:10 |
| Response Time | 29 ms |
| Features | Anti-glare |
| On-screen Display (OSD) | |
| Cable Lock Slot | |
| Mount Type | Rear Mount |
| Screen Surface | Anti-glare |
| Viewable Screen Size | 10.1" |
| Screen Mode | WXGA |
| Placement | Tabletop |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 31.50 kHz to 80 kHz |
| Curved Screen | No |
| Maximum Refresh Rate | 60 Hz |
| Vertical Frequency | 60 Hz |
| Screen Size Class | 10" |
