ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done in an extremely short time with the easy-to-use and intuitive graphic utility.
- Connect different types of media within a network with this single port
- With 10/100Base-T technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Spécifications techniques
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Power Description | |
| Power Source | DC |
| Network & Communication | |
| Network Technology | 10/100Base-T |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Rail-mountable | |
| Height | 4.72" (120 mm) |
| Width | 2.76" (70 mm) |
| Depth | 1.18" (30 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | ADAM-6060-D |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | ADAM-6060 |

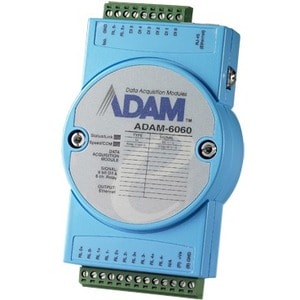

| Product Name | 6-ch Digital Input and 6-ch Relay Modbus TCP Module |
| Product Series | ADAM-6000 |
| Brand Name | Advantech |
