The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

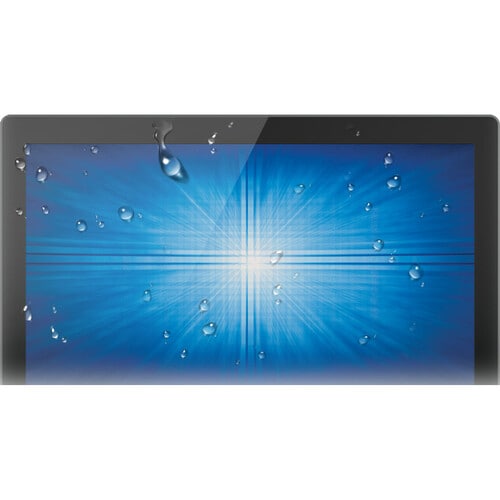

Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
- The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 3,000:1 contrast ratio actualizes fantastic hues for an exceptional visual experience
- Furnishes captivating visuals with about 250 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | IntelliTouch Surface Wave |
| Touchscreen | Yes |
| Power Description | |
| Operating Power Consumption | 20 W |
| Standby Power Consumption | 1.50 W |
| Off-Mode Power Consumption | 500 mW |
| Energy Consumption per Year | 29 kWh |
| Video | |
| Contrast Ratio | 3,000:1 |
| Brightness | 250 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1920 x 1080 |
| Physical Characteristics | |
| Weight (Approximate) | 10.36 lb (4699.22 g) |
| Height | 11.03" (280.16 mm) |
| Width | 18.74" (476 mm) |
| Depth | 1.71" (43.43 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Product Color | Black |
| General Information | |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | E328883 |
| Manufacturer Website Address | http://www.elotouch.com |
| Packaged Quantity | 1 |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 2094L |
| Product Name | 2094L 19.5" Open Frame Touchscreen (Rev B) |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| HDMI Version | 1.3 |
| VGA | Yes |
| DisplayPort | Yes |
| Serial Port | Yes |
| USB Standard | USB 2.0 |
| DisplayPort Version | 1.1a |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Mean Time Between Failures (MTBF) | 5.7 Year |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Technical Information | |
| Aspect Ratio | 16:9 |
| Response Time | 20 ms |
| Features | On-screen Display (OSD) |
| Mount Type | Rack-mountable |
| Front Mount | |
| Viewable Screen Size | 19.5" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Curved Screen | No |
| Maximum Refresh Rate | 75 Hz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Screen Size Class | 20" |
