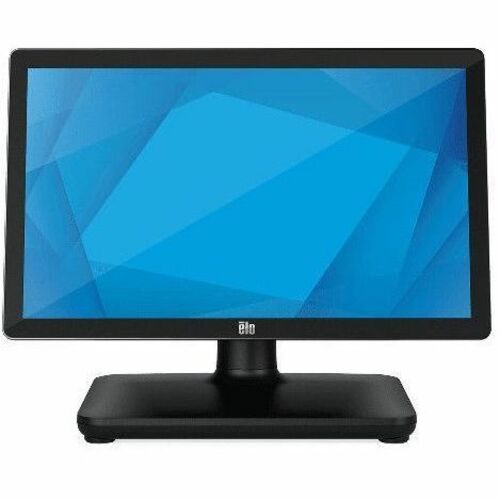

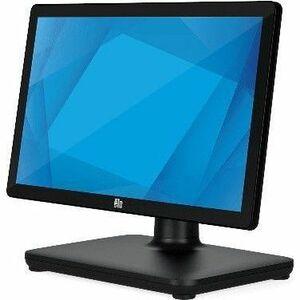

EloPOS™ SystemModern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 21.5-inch touchscreen display, choice of Intel's 9th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo's standard 3-year warranty.

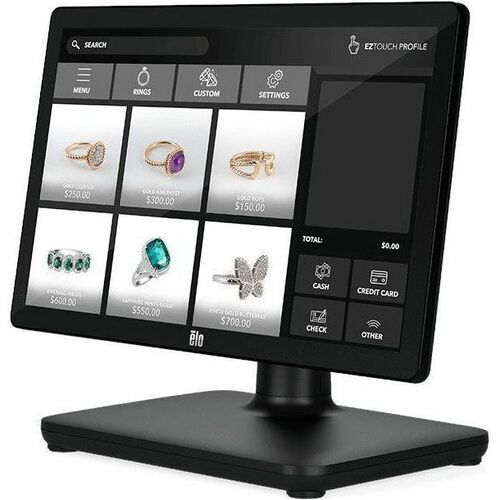

Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.

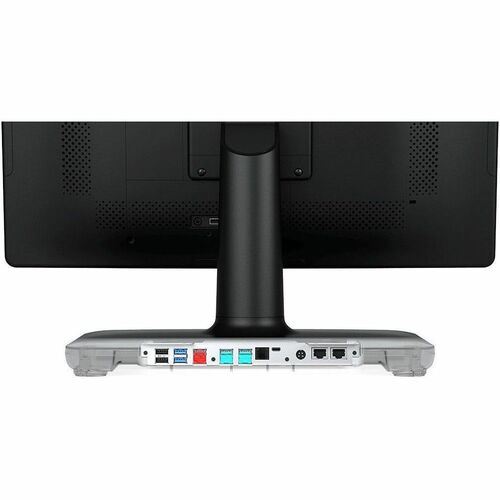

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.
Configure Your Solution

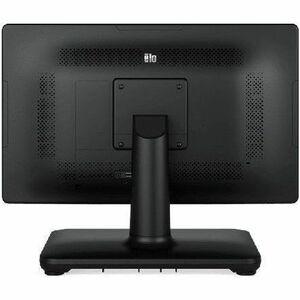

EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.

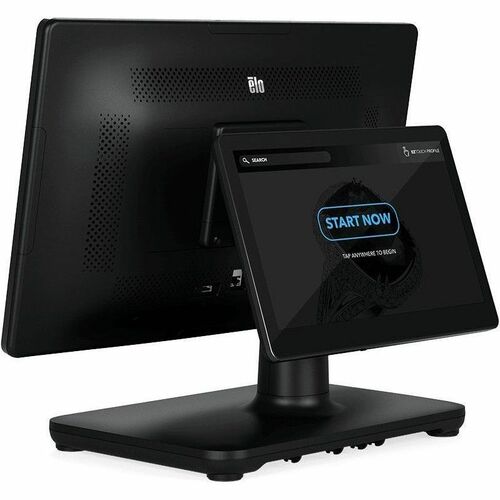

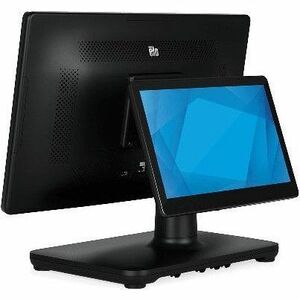

Add a Customer-FacingDisplay with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a1302Lcustomer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.

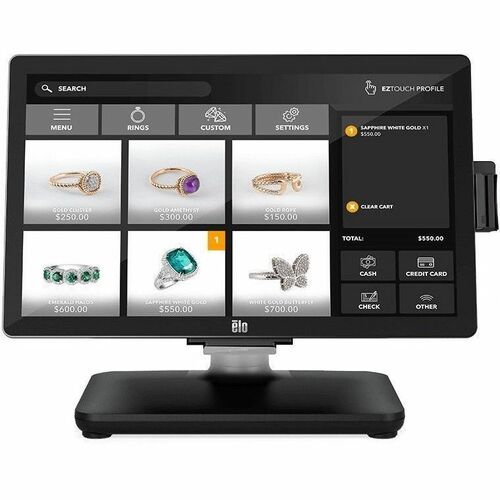

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Windows or Linux.You Choose.
EloPOS utilizes the reliability-tested performance
and security of Intel 9th Generation processors,
integrated Trusted Platform Modules, Intel vPro™
and the Windows 10 operating system. For
added flexibility, the EloPOS offers models with
no OS - all pretested with Linux SuSE, Ubuntu
and Red Hat operating systems, allowing businesses
to get the solution best-suited for them.
Bridge the gap betweenWindows and Android.
Transitioning to Android in the future? Elo Bridge
is the perfect solution. Simply choose the Elo
Windows device that fits your needs today, and
when you are ready to transition to Android, you
can use Elo Bridge to migrate your fleet of device
Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.
- The ultra-advanced interface that Windows 10 offers is well suited to any hardware or computer program that you are directly using
- With 8 GB DDR4 SDRAM memory
- All that you do will look amazing on the all-in-one's 22" display
- Touch panel makes your workforce's life easy along with recognizable and adaptable operation
- Intel Core i3 3.20 GHz processor works smartly and responds swiftly to let you use multiple applications
- 256 GB SSD provides you with enough space to store large files
Spécifications techniques
| Software | |
| Operating System | Windows 10 |
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | DC Power |
| AC Power | |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2/SATA |
| Processor & Chipset | |
| Processor Speed | 3.20 GHz |
| Processor Type | Core i3 |
| Processor Cache | 6 MB |
| Physical Characteristics | |
| Weight (Approximate) | 19.60 lb (8890.41 g) |
| Mount Type | Wall Mountable |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | Anti-glare |
| Form Factor | All-in-One |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Miscellaneous | |
| Package Contents |
|
| Durability | Splash Proof |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 7.1 |
| General Information | |
| Product Type | POS Terminal |
| Manufacturer Part Number | E910541 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Name | 22-inch EloPOS System |
| Product Line | EloPOS |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 3 |
| Cash Drawer Port | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| USB Type-C | Yes |
| Number of USB Type C Ports | 1 |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Color Supported | 16.7 Million Colors |
| Screen Size | 22" |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Touchscreen | Yes |
| Graphics Controller Model | UHD Graphics 630 |
| Display Screen Type | LED |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Active Display Size (Horizontal) | 18.74" (476 mm) |
| Active Display Size (Vertical) | 10.54" (267.72 mm) |
| Number of Simultaneous Touch Points | 10 |
