Spécifications techniques
| Interfaces/Ports | |
| Host Interface | USB |
| Serial | |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Power Description | |
| Input Current | 500 mA |
| Maximum Operating Power Consumption | 2.50 W |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3300 mAh |
| Battery Included | Yes |
| Maximum Battery Run Time | 22 Hour |
| Maximum Battery Recharge Time | 4.50 Hour |
| Physical Characteristics | |
| Form Factor | Handheld |
| Length | 4.30" (109.22 mm) |
| Height | 6.30" (160.02 mm) |
| Width | 2.80" (71.12 mm) |
| Product Color | White |
| Color Family | White |
| General Information | |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | 1962HHD5USB9 |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Product Model | 1962h |

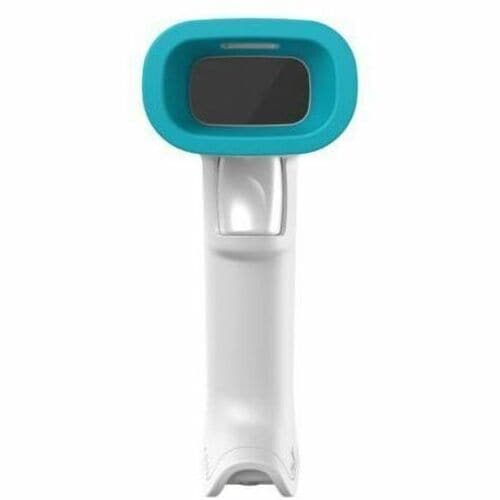

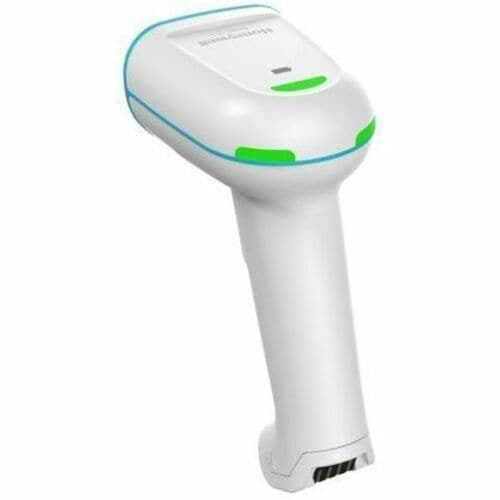

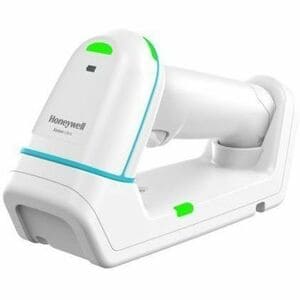

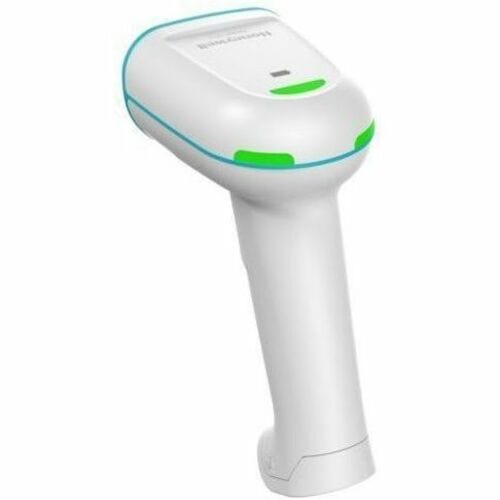

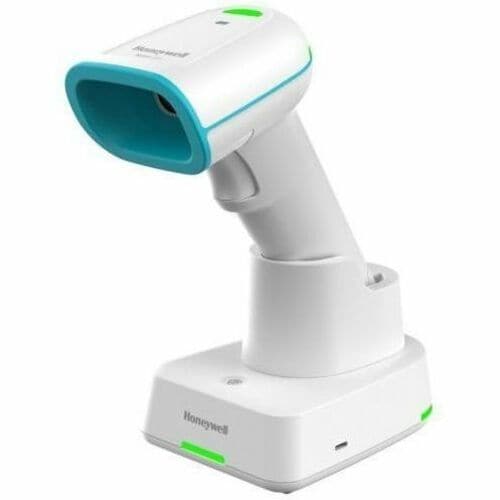

| Product Name | Xenon Ultra 1962H Cordless Bluetooth Handheld Scanner |
| Product Line | Xenon Ultra |
| Brand Name | Honeywell |
| Miscellaneous | |
| Application/Usage | Inventory |
| Pharmacy | |
| Specimen Collection | |
| Component Tracking | |
| Hospitality | |
| Healthcare | |
| Ingress Protection (IP) Rating | IP41 |
| IP52 | |
| Technical Information | |
| Barcode Symbology Supported | Decode Capabilities:
|
| Connectivity Technology | Wireless |
| Features | Notification LED |
| Beep | |
| Vibration | |
| Scanning Distance | 32.07" (814.58 mm) |
| Light Source | LED |
| Scanner Range | High Density |
| Drop Specification | Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range |
| Scan Pattern | Area |
| Image Sensor Type | Imager |
| Illumination Type | LED |
| Illumination Color | White |
| Cable Type Included | USB |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 157.48 in/s (4000 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Air Electrostatic Discharge (+/-) | 15kV |
| Contact Electrostatic Discharge (+/-) | 8kV |
| Image Sensor Resolution | 1280 x 1080 |
