À propos du produit
Introduction
The Advantech IDS-3218W Panel Mount series offers flexible options for touchscreens, signal interfaces and chassis mounting. The series also supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.
- Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Furnishes captivating visuals with about 300 cd/m² brightness levels
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | 5-wire Resistive |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 300 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1366 x 768 |
| Native Contrast Ratio | 1,000:1 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Height | 12.10" (307.40 mm) |
| Width | 18.99" (482.40 mm) |
| Depth | 1.54" (39.20 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Technical Information | |
| Response Time | 5 ms |

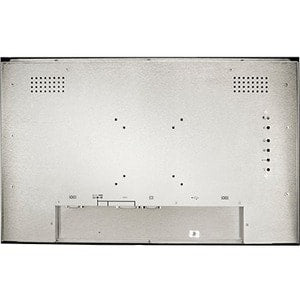

| Mount Type | Rear Mount |
| Panel Mount | |
| Viewable Screen Size | 18.5" |
| Screen Mode | WXGA |
| Backlight Technology | LED |
| Screen Size Class | 19" |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3218WR-30HDA1 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3218WR-30HDA1 |
| Product Name | 18.5" HD Panel Mount Monitor |
| Product Series | IDS-3218W |
| Brand Name | Advantech |
