À propos du produit

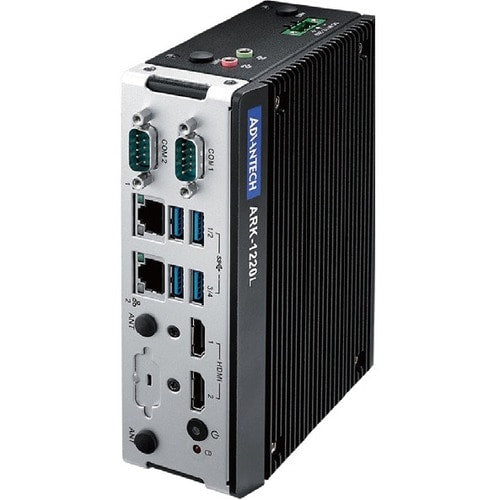

ARK-1000 Series: Ultra Slim Fanless Embedded Computers
ARK-1000 series features ultra-small and low power consumption designs that offer sufficient storage and PCIe expansion for space-limited applications
- Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz
- DIN-Rail system with essential I/O ports on front-side bezel
- 2 x Intel GbE and 4 x USB 3.0
- Dual HDMI display up to 4K resolution
- 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
- 1 x 2.5" SATA III SSD and 1 x full-size mSATA*
- 12V ~ 28V wide range power input
- -30 ~ 70 °C extended operating temperature
- Advantech WISE-PaaS support
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| LAN Model | i210 |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR3L SDRAM |
| Total Number of Memory Slots | 2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics 500 |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Physical Characteristics | |
| Weight (Approximate) | 2.65 lb (1200 g) |
| Form Factor | Box PC |
| Height | 6.22" (158 mm) |
| Width | 2.11" (53.50 mm) |
| Depth | 4.49" (114 mm) |
| Processor | |
| Processor Speed | 1.60 GHz |
| Processor Type | Atom |
| Processor Model | x5-E3940 |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Maximum Turbo Speed | 1.80 GHz |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | ARK-1220L-S6A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | ARK-1220L |
| Product Name | ARK-1220L Desktop Computer |
| Product Series | ARK-1000 |
| Brand Name | Advantech |
