À propos du produit

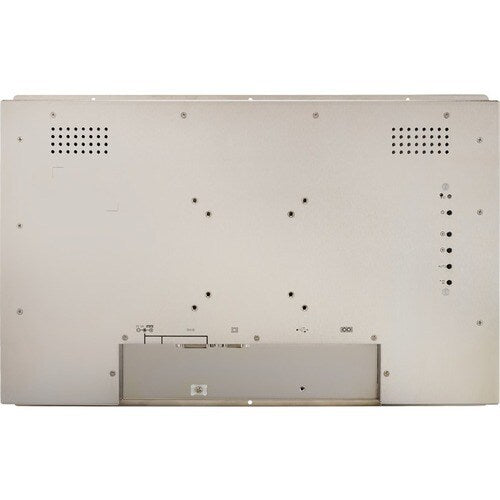

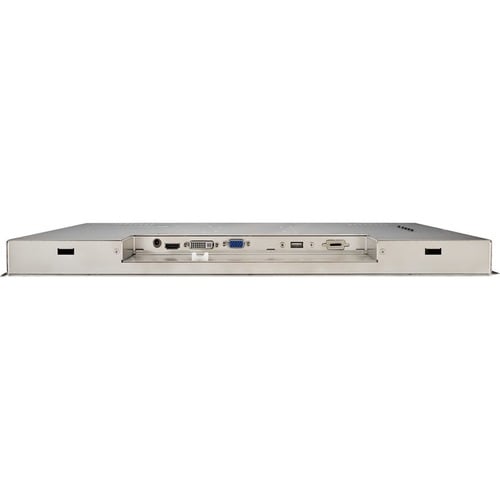

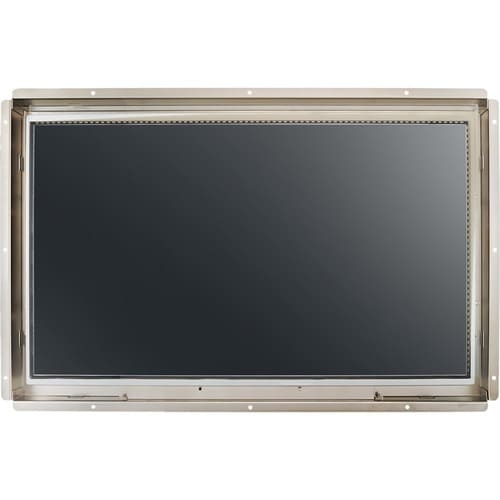

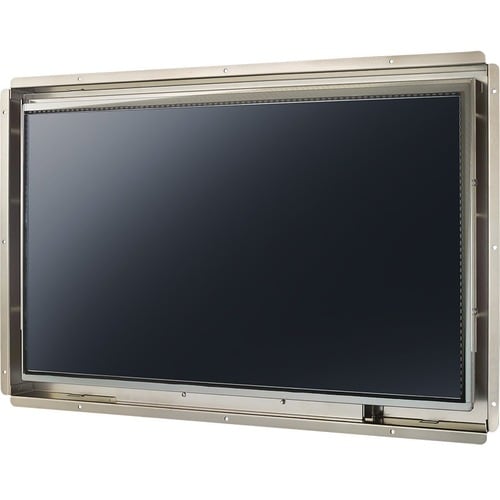

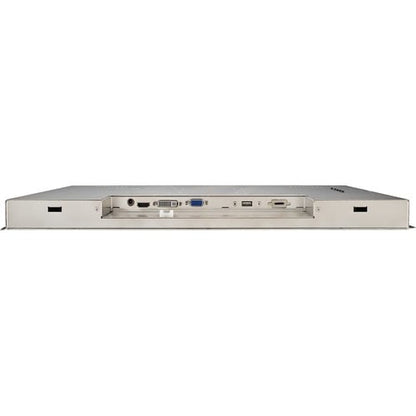

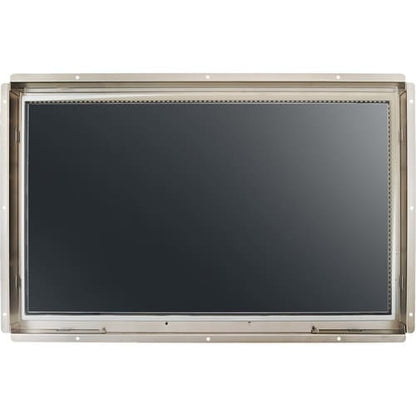

The Advantech IDS-3118W Open Frame Monitor Series offer ultra slim design supporting a 18.5" 1366 x 768 pixels TFT LCD screen, with 0 ~ 55° C operating temperature, and optional resistive and projective capacitive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Furnishes captivating visuals with about 300 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
- The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 300 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1366 x 768 |
| Native Contrast Ratio | 1,000:1 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 10.36 lb (4700 g) |
| Height | 12.01" (305 mm) |
| Width | 18.82" (478 mm) |
| Depth | 1.41" (35.90 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Technical Information | |
| Response Time | 5 ms |
| Mount Type | Rear Mount |
| Viewable Screen Size | 18.5" |
| Screen Mode | HD |
| Backlight Technology | LED |
| Screen Size Class | 19" |
| General Information | |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3118WP-30HDA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3118WP-30HDA1E |
| Product Name | IDS-3118WP-30HDA1E Open Frame LCD Touchscreen Monitor |
| Product Series | IDS-3118W |
| Brand Name | Advantech |
