À propos du produit

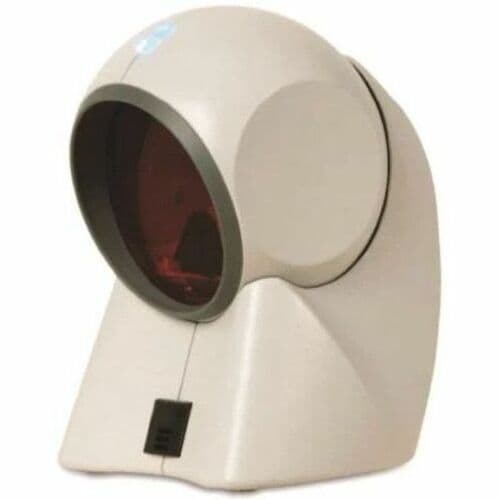

Honeywell's Orbit® series of scanners provide aggressive omnidirectional scanning in an award-winning design for retailers seeking an affordable, aesthetically-pleasing scanning solution. Orbit, the all-time, best-selling hands-free omnidirectional scanner, presents an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. Compact, lightweight and rugged, Orbit maximizes customer satisfaction and employee efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1,120 scans per second. Recipient of multiple design honors, Orbit's award-winning shape enables hand-held scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes. For applications that require menu scanning, OrbitCG 7180 combines the power of patented CodeGate® technology with many of the outstanding features already found in the Orbit® 7120. CodeGate technology allows the user to easily target the desired bar code and complete data transmission with the push of a single button. The scanner's expanded ability to update its firmware via Honeywell's free patented MetroSet®2 configuration software safeguards longterm infrastructure commitments in the event of a change in the POS system or software. Standard features include an integrated EAS antenna for tag deactivation (OrbitCG 7180 only), power save mode, user-replaceable cables, Honeywell's patented MetroSelect and MetroSet®2 for easy configuration, data editing and OPOS/JPOS compatibility for easy installation.
- 20 Scan Line Omnidirectional Pattern: Provides aggressive scanning as an additional benefit to hand presentation applications
- Sweet Spot Scanning: Engineered "sweet spot" to optimize scan performance and first pass read rate
- Adjustable Scan Head: Ability to tilt scanner 30° for targeted scanning or larger products
- Flash ROM: Protects POS investment with free firmware updates via MetroSet®2 software and standard PC
- Automatic Scanning Operation: Simply present a bar code and the unit scans in a single pass
- Built-in RF EAS Antenna (Orbit 7180 only): Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes
Spécifications techniques
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 180 mA |
| Standby Current | 170 mA |
| Maximum Operating Power Consumption | 900 mW |
| Miscellaneous | |
| Application/Usage | Retail |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 14.11 oz (400 g) |
| Length | 4.13" (105 mm) |
| Height | 5.91" (150 mm) |
| Width | 4.02" (102 mm) |
| Product Color | Light Gray |
| Color Family | Gray |
| General Information | |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | MK712071A38N |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Product Name | Orbit 7120 Barcode Scanner |
| Product Line | Orbit 7120 |
| Brand Name | Honeywell |
| Technical Information | |
| Barcode Symbology Supported |
|
| Connectivity Technology | Cable |
| Scanning Distance | 9.80" (248.92 mm) |
| Light Source | Laser |
| Drop Specification | Designed to withstand 1.2 m (4´) drops |
| Scan Pattern | Single Line |
| Omni-directional | |
| Scanning Capability | 1D |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Maximum Ambient Light | 4842 lux |
| Minimum Print Contrast | 35% |
