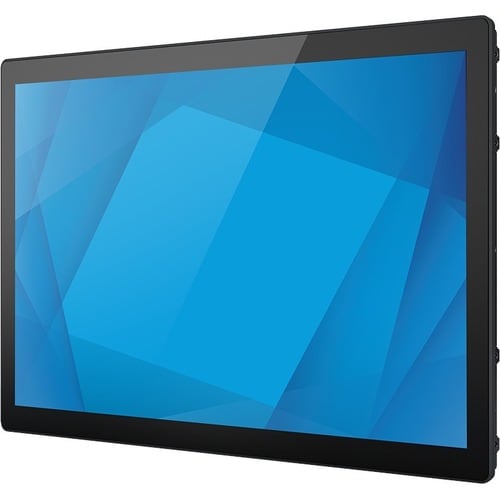

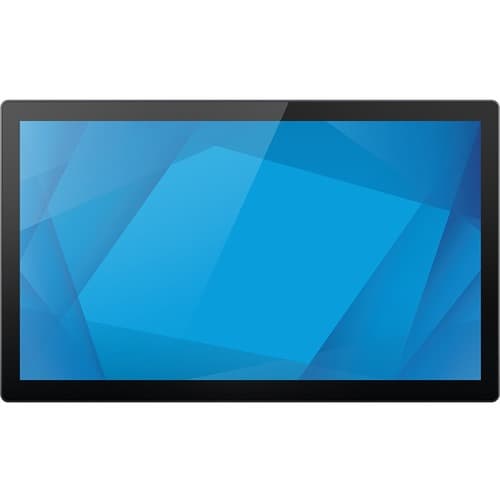

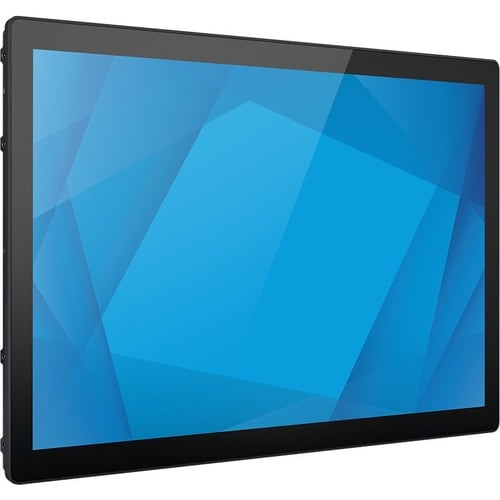

Elo 2794L Open Frame Touchscreen Display

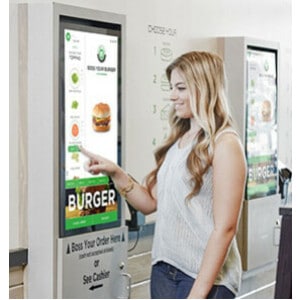

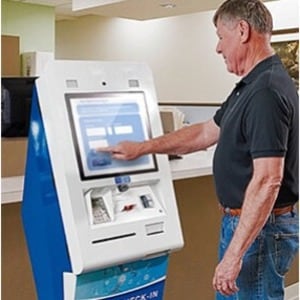

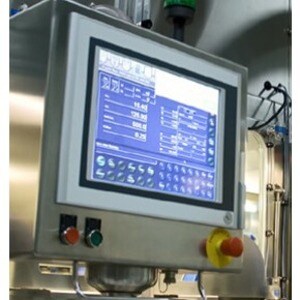

The Elo 2794L 27-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Design Your Solution with Elo | Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote management capabilities via the EloView portal, the Backpack provides a low-power, solid state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP

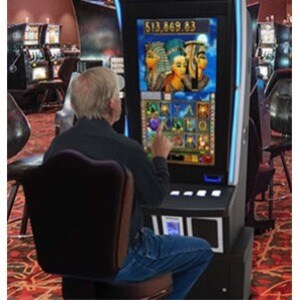

Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness's up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Interactive Open Frames From 10 to 55-inches | Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market. We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Enjoy crisp content and energetic hues with the 300 cd/m² brightness

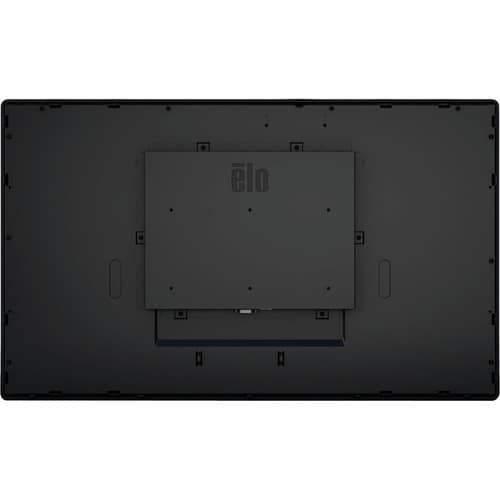

- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Spécifications techniques
| Power Description | |
| Operating Power Consumption | 27 W |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Video | |
| Brightness | 300 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1920 x 1080 |
| Standard Refresh Rate | 60 Hz |
| Native Contrast Ratio | 3,000:1 |
| Physical Characteristics | |
| Weight (Approximate) | 16.09 lb (7298.30 g) |
| Height | 15.29" (388.37 mm) |
| Width | 25.36" (644.14 mm) |

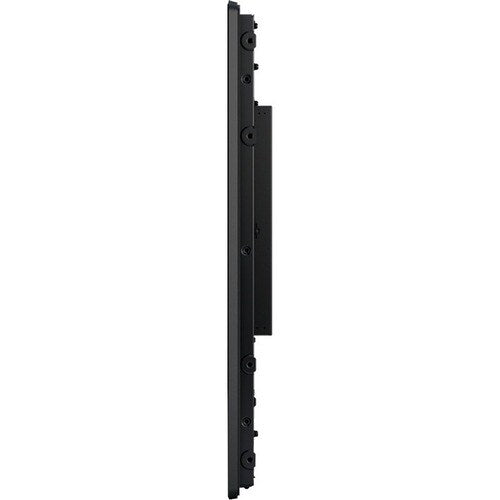

| Depth | 1.60" (40.64 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 200 x 100 |
| Product Color | Black |
| General Information | |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | E493591 |
| Manufacturer Website Address | http://www.elotouch.com |
| Packaged Quantity | 1 |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 2794L |
| Product Name | 2794L Open Frame Touch Screen |
| Brand Name | Elo |
| Technical Information | |
| Aspect Ratio | 16:9 |
| Response Time | 12 ms |
| Features | Landscape/Portrait Viewable |
| On-screen Display (OSD) | |
| Wide Viewing Angle | |
| Mount Type | Flush Mount |
| Viewable Screen Size | 27" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Screen Size Class | 27" |
