Introduction

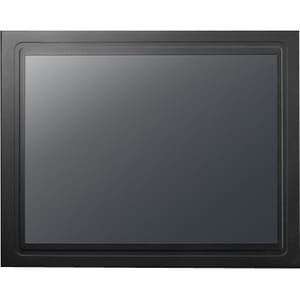

The Advantech IDS-3212 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation, and flexibility for different applications.
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- View your content easily in well-lit areas with 450 cd/m² brightness
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | Tempered Glass |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 450 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 800 x 600 |
| Native Contrast Ratio | 700:1 |
| Physical Characteristics | |
| Weight (Approximate) | 5.51 lb (2500 g) |
| Height | 10.33" (262.40 mm) |
| Width | 12.74" (323.70 mm) |
| Depth | 1.44" (36.50 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Technical Information | |
| Response Time | 35 ms |
| Mount Type | Panel Mount |
| Viewable Screen Size | 12.1" |
| Screen Mode | SVGA |
| Backlight Technology | LED |
| Screen Size Class | 12" |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3212G-45SVA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3212G-45SVA1E |
| Product Name | IDS-3212 12" SVGA Industrial Panel Mount Monitor |
| Product Series | IDS-3212 |
| Brand Name | Advantech |
