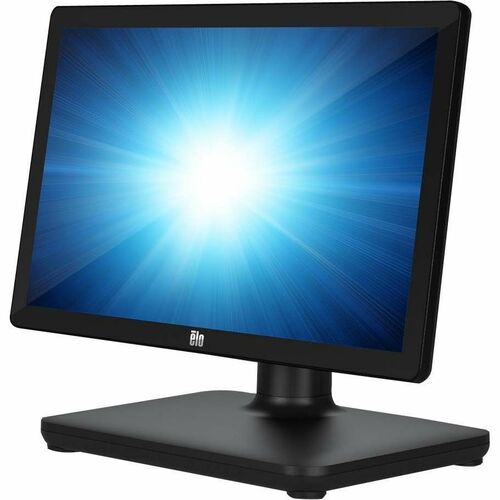

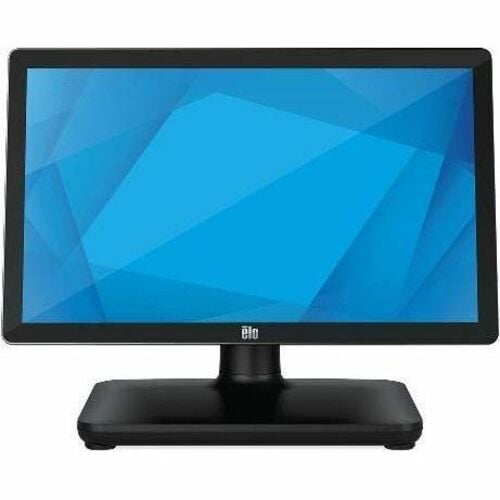

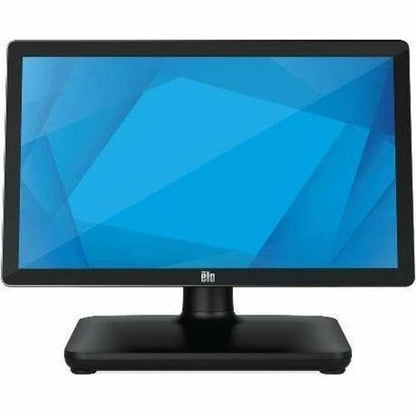

EloPOS™ System | Modern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 21.5-inch touchscreen display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo's standard 3-year warranty.

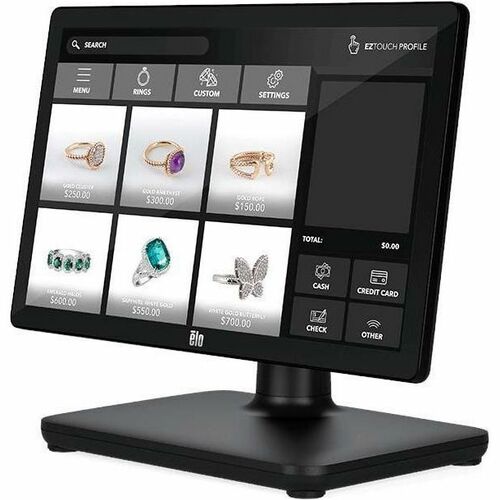

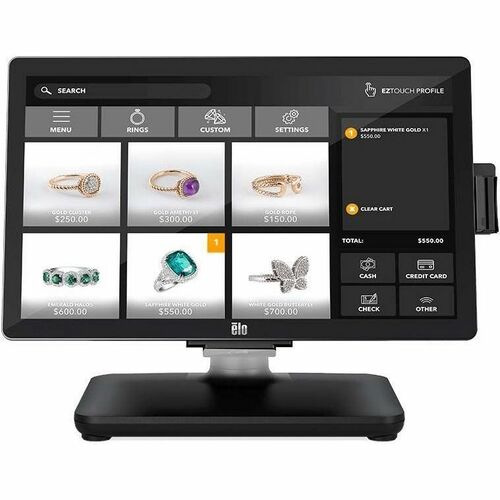

Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.

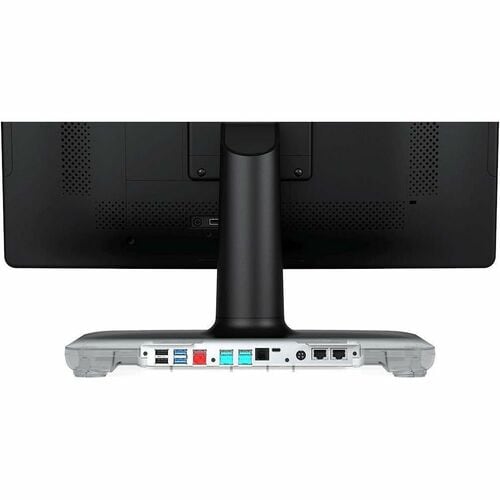

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.
Configure Your Solution

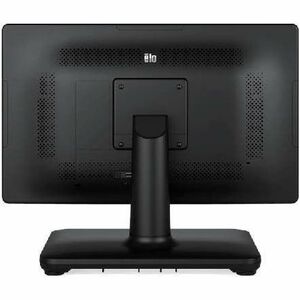

EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.

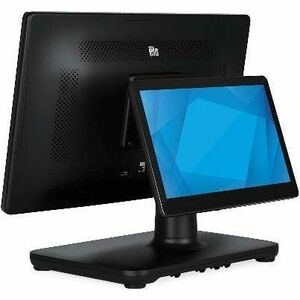

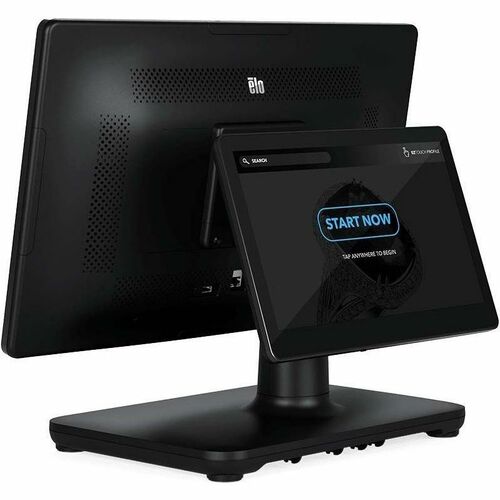

Add a Customer-Facing Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
- The 16 GB DDR4 SDRAM memory allows you to multitask and run intensive applications lag-free
- Everything will look astonishing on the all-in-one's 21.5" display
- The Intel Core i5 3.60 GHz processor offers an ultra-efficient architecture to avoid apparent delays during multitasking and thus increase productivity
- 256 GB SSD provides you with enough space to store large files
Spécifications techniques
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | DC Power |
| AC Power | |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2/SATA |
| Processor & Chipset | |
| Processor Speed | 3.60 GHz |
| Processor Type | Core i5 |
| Processor Manufacturer | Intel |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 7.1 |
| Physical Characteristics | |
| Weight (Approximate) | 19.60 lb (8890.41 g) |
| Mount Type | Wall Mountable |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | Anti-glare |
| Form Factor | All-in-One |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| General Information | |
| Product Type | POS Terminal |
| Manufacturer Part Number | E417915 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | E417915 |
| Product Name | 22-inch EloPOS System |
| Product Line | EloPOS |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 3 |
| Cash Drawer Port | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| USB Type-C | Yes |
| Number of USB 2.0 Ports (Rear) | 2 |
| Number of USB Type C Ports | 1 |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Color Supported | 16.7 Million Colors |
| Screen Size | 21.5" |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Touchscreen | Yes |
| Graphics Controller Model | UHD Graphics 630 |
| Display Screen Type | TFT |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Active Display Size (Horizontal) | 18.74" (476 mm) |
| Active Display Size (Vertical) | 10.54" (267.72 mm) |
| Number of Simultaneous Touch Points | 10 |
