À propos du produit

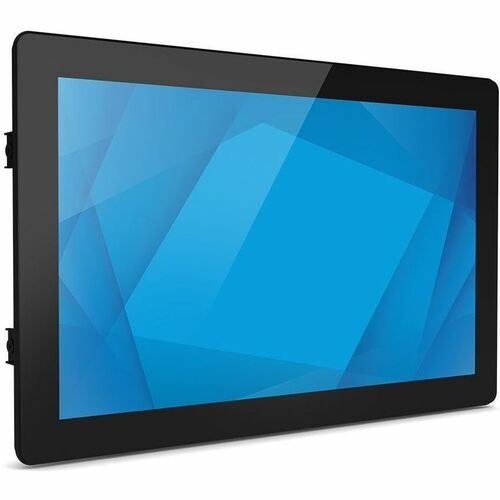

1594L 15.6" Open Frame Touchscreen
The Elo 1594L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Design Your Solution with Elo | Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness's up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Interactive Open Frames From 10 to 55-inches | Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market - We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
- Projective Capacitive touchscreen technology offers two essential advantages, not only can you touch the panel with your bare finger, but you can also actuate it with surgical gloves or slender cotton gloves on
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Furnishes captivating visuals with about 350 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
Spécifications techniques
| Power Description | |
| Operating Power Consumption | 13.23 W |
| Maximum Power Consumption | 13.23 W |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Video | |
| Brightness | 350 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 800:1 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Open-frame LED Touchscreen Monitor |
| Manufacturer Part Number | E131375 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1594L |
| Product Name | 1594L 15.6" Open Frame Touchscreen |
| Product Series | 90 |
| Brand Name | Elo |
| Physical Characteristics | |
| Weight (Approximate) | 6.66 lb (3020 g) |
| Height | 9.53" (242 mm) |
| Width | 15.54" (394.70 mm) |
| Depth | 1.71" (43.40 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Aspect Ratio | 16:9 |
| Response Time | 25 ms |
| Features | OSD/Power Lock |
| On-screen Display (OSD) | |
| Mount Type | Flush Mount |
| Rear Mount | |
| Viewable Screen Size | 15.6" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Screen Size Class | 16" |
| Impact Protection (IK) Rating | IK07 |
| Response Time Details | 25ms Typical |
