DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
IP-54 Rating
Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.
IEC 60601
IEC 60601 compliant power supply included.
DICOM 14
Ensures accurate and uniform image reproduction for reliable review.
Integrated Touch
TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.
Built-to-Last
Backed by Elo's 3-year standard warranty with optional EloCare service offerings.
Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

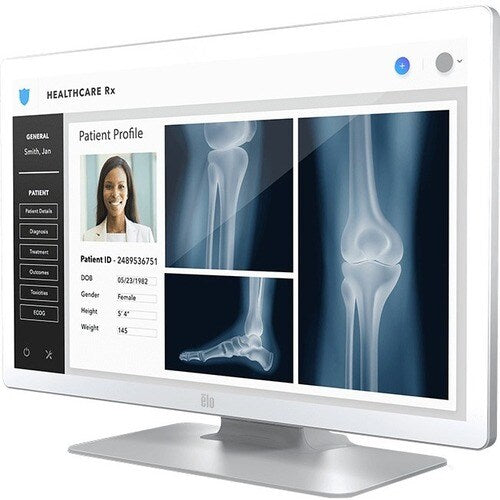

DICOM 14 -Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 300 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures

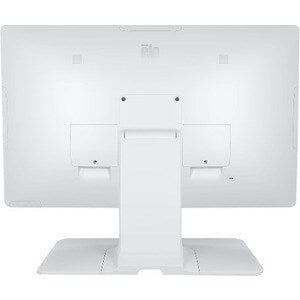

- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
Spécifications techniques
| Audio | |
| Speakers | Yes |
| Miscellaneous | |
| Country of Origin | China |
| Power Description | |
| Frequency | 60 Hz |
| 50 Hz | |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| VGA | Yes |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Video | |
| Brightness | 300 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 1,000:1 |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | E659793 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 2703LM |
| Product Name | 2703LM 27" Medical Grade Touchscreen Monitor |
| Product Series | 03 |
| Brand Name | Elo |
| Physical Characteristics | |
| Weight (Approximate) | 15.72 lb (7130 g) |
| Height | 15.52" (394.10 mm) |
| Width | 25.50" (647.60 mm) |
| Depth | 1.77" (44.90 mm) |
| Weight with Stand (Approximate) | 22.64 lb (10270 g) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height with Stand | 17.75" (450.90 mm) |
| Width with Stand | 25.50" (647.60 mm) |
| Depth with Stand | 9.17" (233 mm) |
| Product Color | White |
| Color Family | White |
| Technical Information | |
| Aspect Ratio | 16:9 |
| Response Time | 14 ms |
| Features | On-screen Display (OSD) |
| Anti-glare | |
| Privacy Filter | |
| Mount Type | Wall Mountable |
| Viewable Screen Size | 27" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Screen Size Class | 27" |
| Response Time Details | 14ms Typical |
